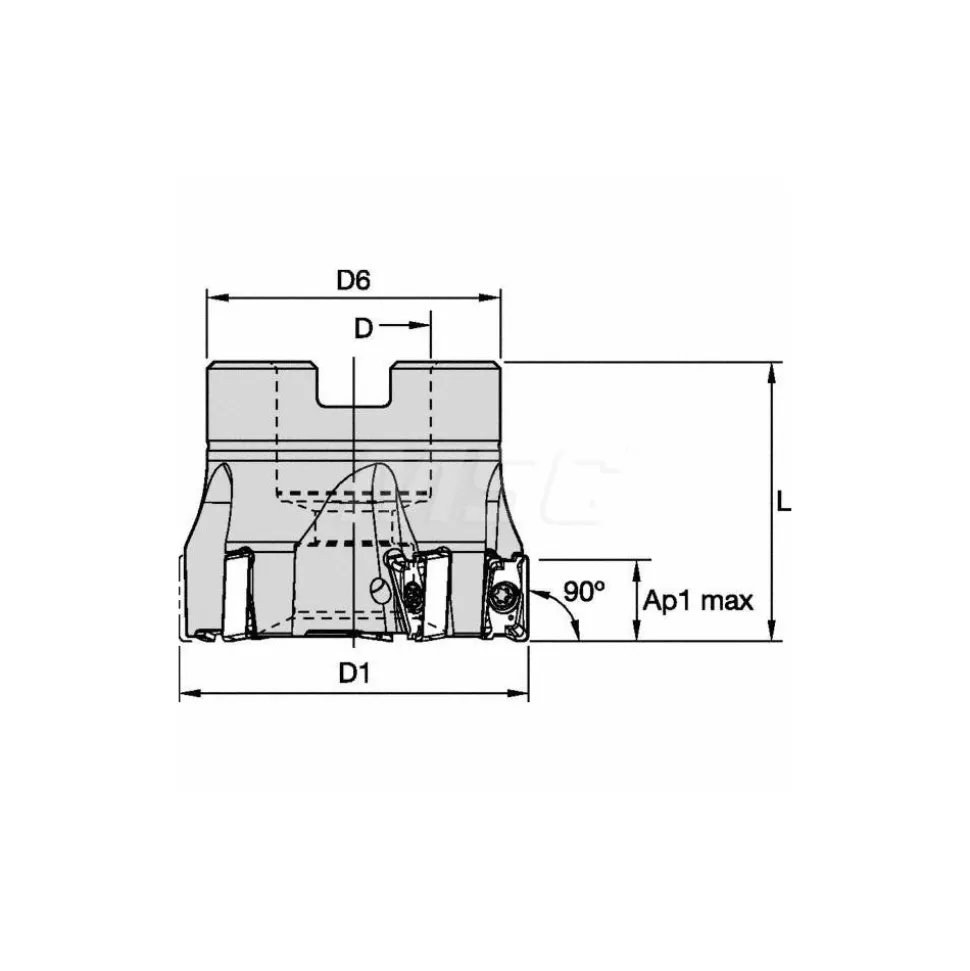

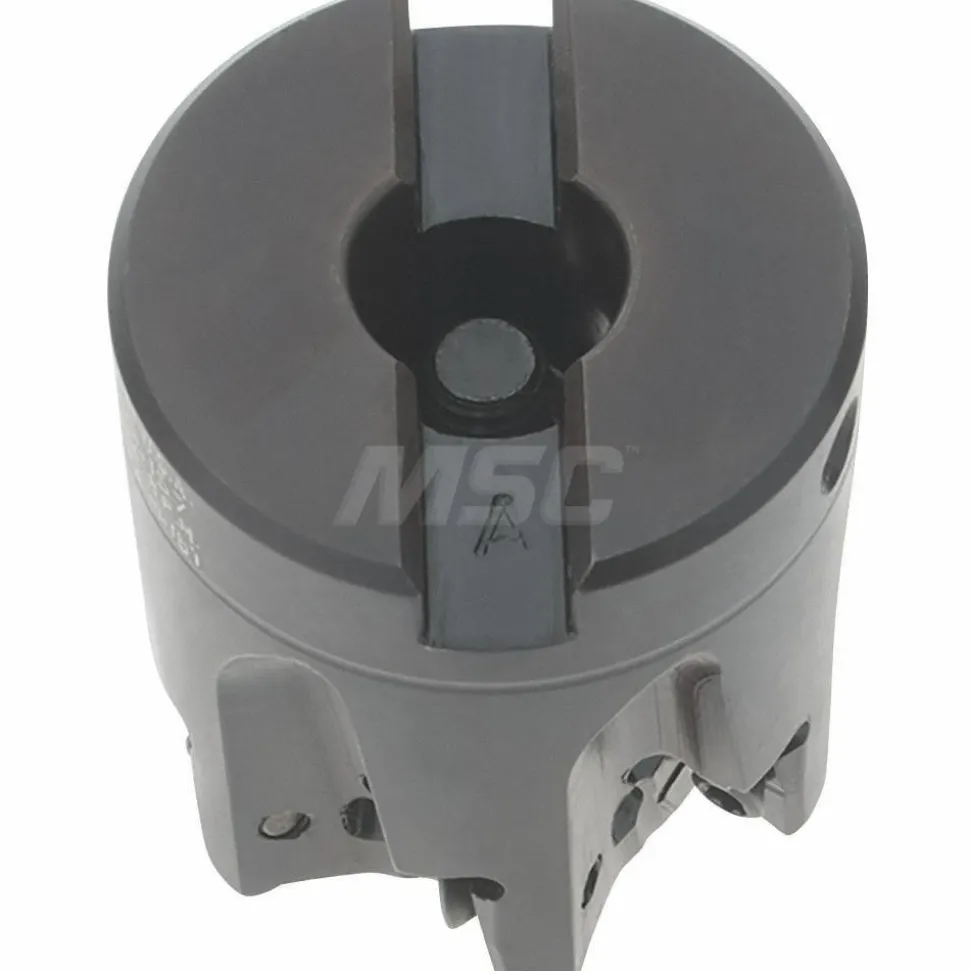

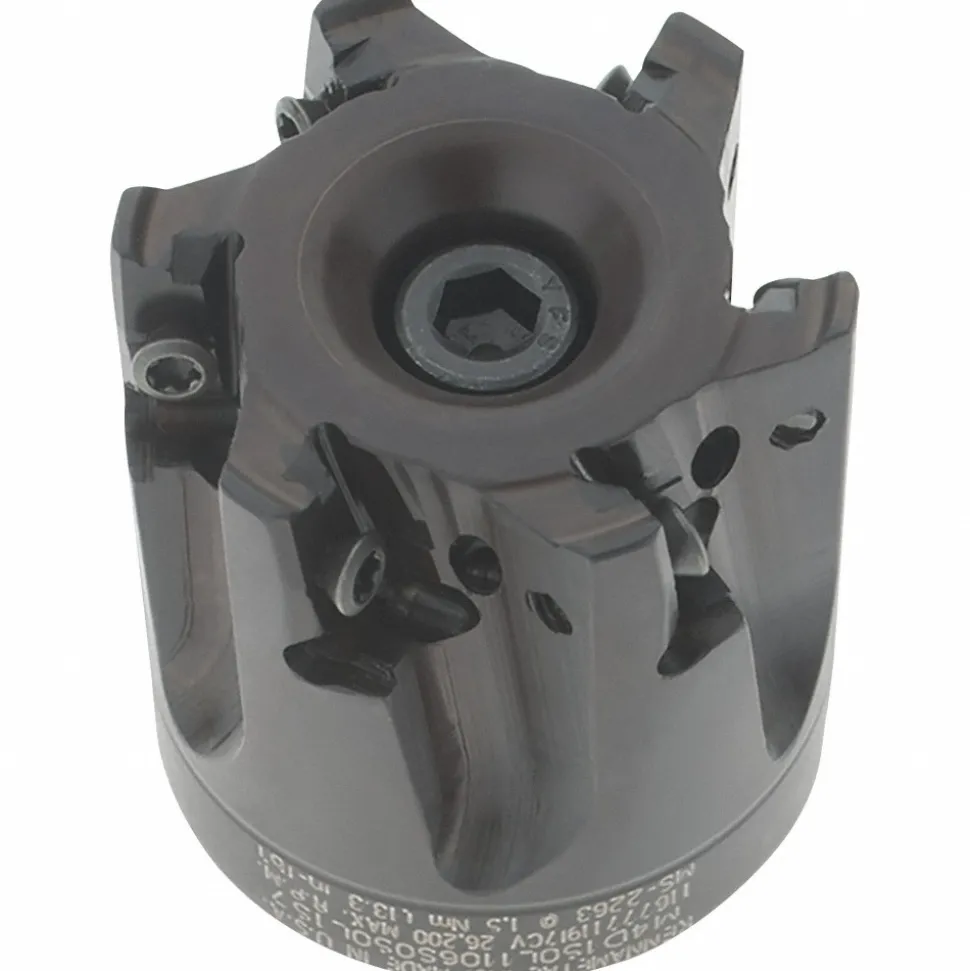

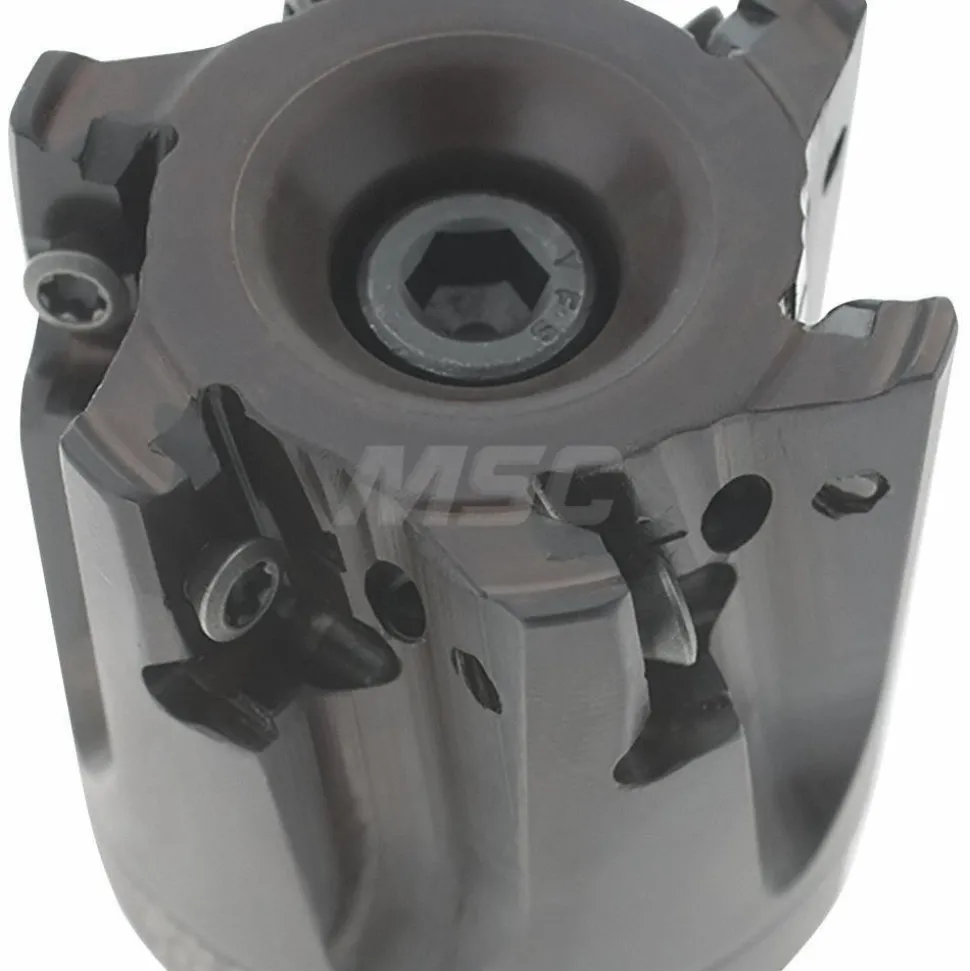

1-1/2″ Cut Dia, 1/2″ Arbor Hole Dia, 11mm Max Depth, Indexable Square-Shoulder Face Mill
136,99 $
Specifications
| Maximum Cutting Diameter (Inch): 1-1/2 | Maximum Depth of Cut (mm): 11.00 |
| Arbor Hole Diameter (Inch): 1/2 | Arbor Hole Diameter (Decimal Inch): 0.5000 |
| Compatible Insert Size Code: LNGU110408SRGE | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0 |
| Rake: Negative | Series: Mill 4-11 |
| Maximum Body Diameter (Decimal Inch): 1.4210 | Overall Height (mm): 40.00 |
| Hub Diameter (mm): 36.10 | Coolant Hole Diameter (Decimal Inch): 0.0870 |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: Yes | Number Of Cutter Inserts: 6 |
| Number Of Flutes: 6 | Country of Origin: UNITED STATES |
| Maximum Cutting Diameter (Inch): 1-1/2 | |
| Maximum Depth of Cut (mm): 11.00 | |
| Arbor Hole Diameter (Inch): 1/2 | |
| Arbor Hole Diameter (Decimal Inch): 0.5000 | |
| Compatible Insert Size Code: LNGU110408SRGE | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0 | |
| Rake: Negative | |
| Series: Mill 4-11 | |
| Maximum Body Diameter (Decimal Inch): 1.4210 | |
| Overall Height (mm): 40.00 | |
| Hub Diameter (mm): 36.10 | |
| Coolant Hole Diameter (Decimal Inch): 0.0870 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 | |
| Country of Origin: UNITED STATES |
| MSC# | 38160917 |
| Mfr# | 6139922 |
