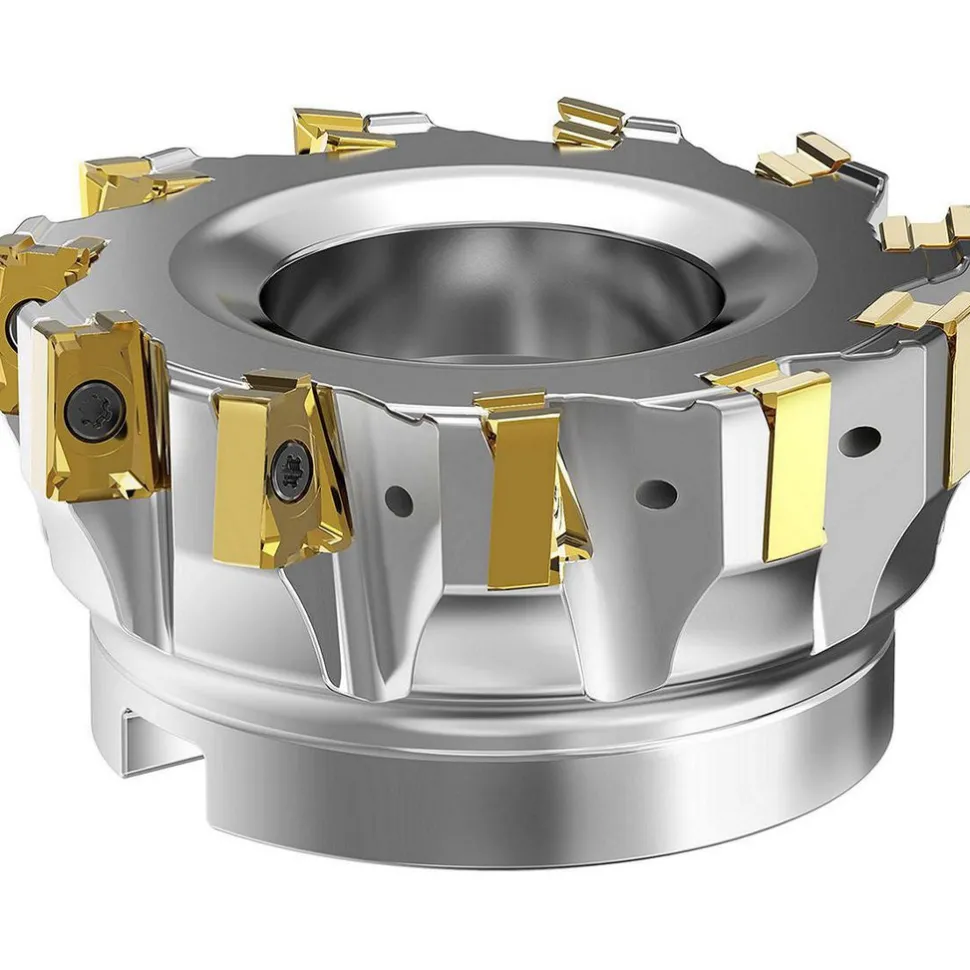

1-1/2" Cut Dia, 1/2" Arbor Hole Dia, 15.5mm Max Depth, Indexable Square-Shoulder Face Mill

1-1/2″ Cut Dia, 1/2″ Arbor Hole Dia, 15.5mm Max Depth, Indexable Square-Shoulder Face Mill

130,89 $

SKU: SKUJichPihX4l Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

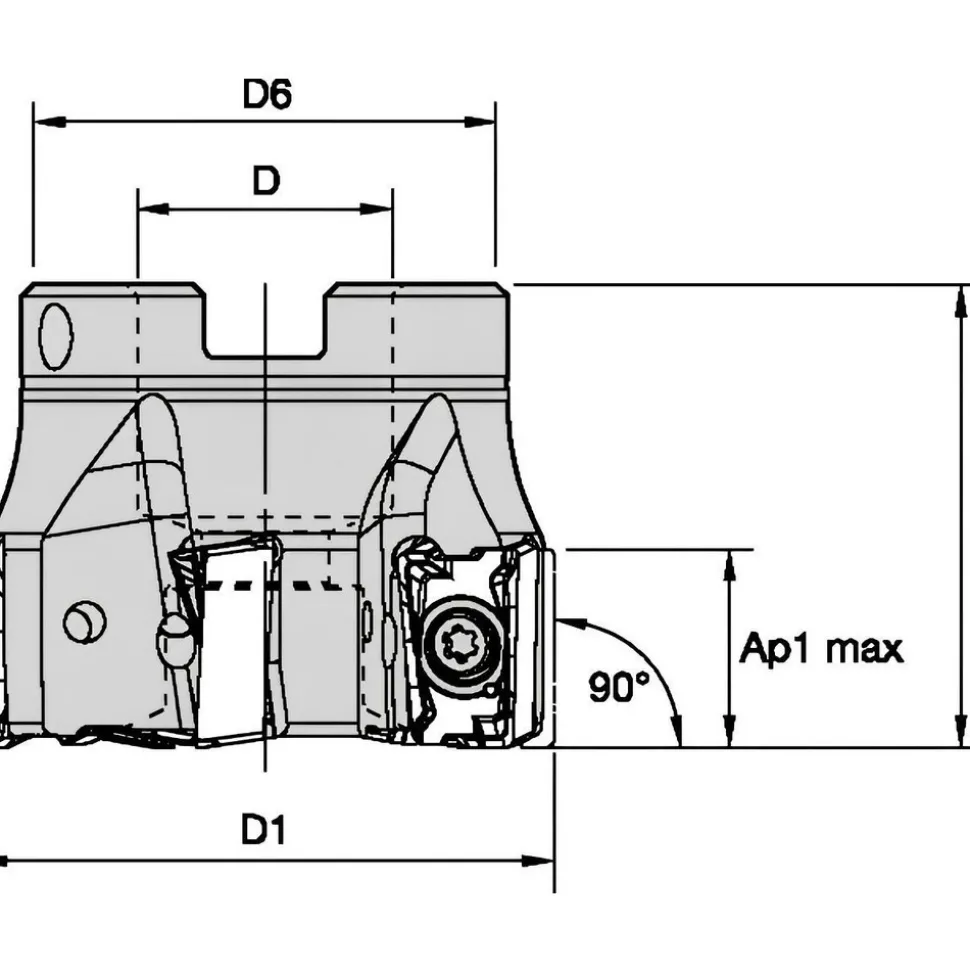

Maximum Cutting Diameter (Inch): 1-1/2	Maximum Cutting Diameter (mm): 38.10
Maximum Depth of Cut (mm): 15.50	Maximum Depth of Cut (Decimal Inch): 0.6100
Arbor Hole Diameter (Inch): 1/2	Arbor Hole Diameter (Decimal Inch): 0.5000
Compatible Insert Size Code: LNGU15T608SRGE	Insert Holding Method: Screw; Clamp
Lead Angle: 0	Series: MILL 4-15
Overall Height (mm): 40.01	Overall Height (Decimal Inch): 1.5750
UNSPSC Code: 27112803	Number Of Cutter Inserts: 5
Maximum Cutting Diameter (Inch): 1-1/2
Maximum Cutting Diameter (mm): 38.10
Maximum Depth of Cut (mm): 15.50
Maximum Depth of Cut (Decimal Inch): 0.6100
Arbor Hole Diameter (Inch): 1/2
Arbor Hole Diameter (Decimal Inch): 0.5000
Compatible Insert Size Code: LNGU15T608SRGE
Insert Holding Method: Screw; Clamp
Lead Angle: 0
Series: MILL 4-15
Overall Height (mm): 40.01
Overall Height (Decimal Inch): 1.5750
UNSPSC Code: 27112803
Number Of Cutter Inserts: 5
