Sale!

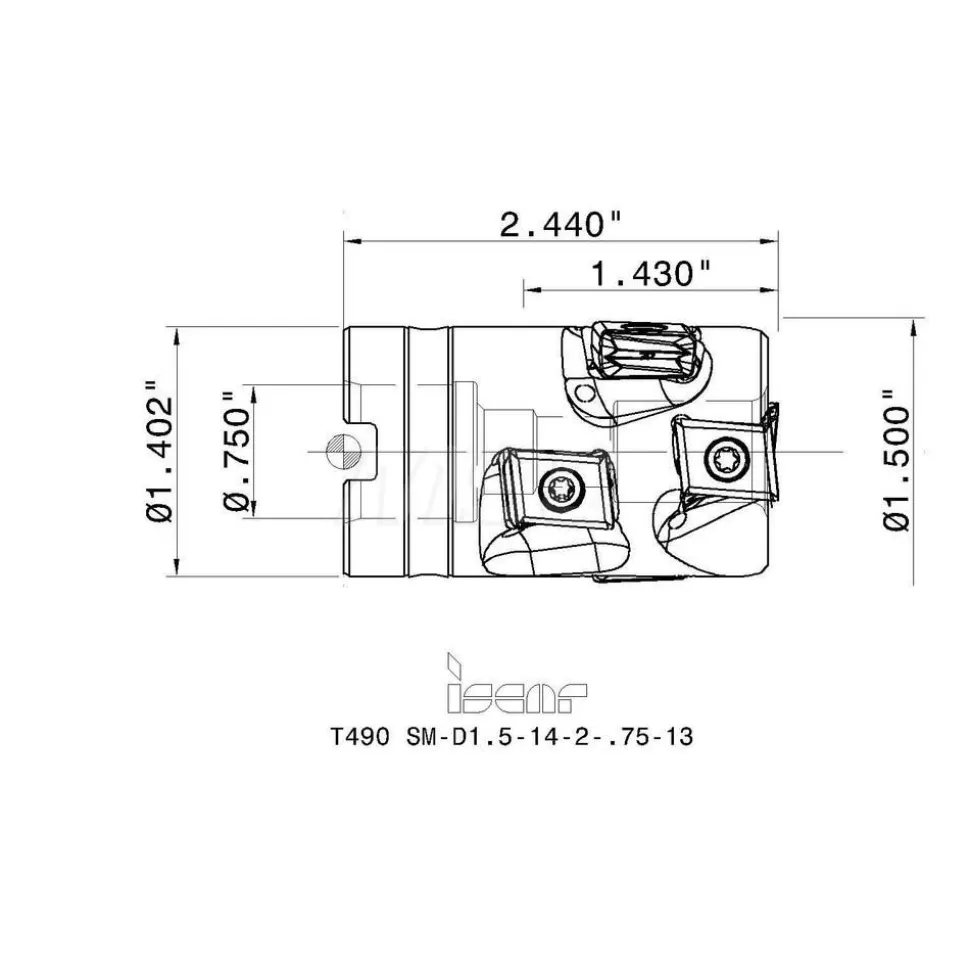

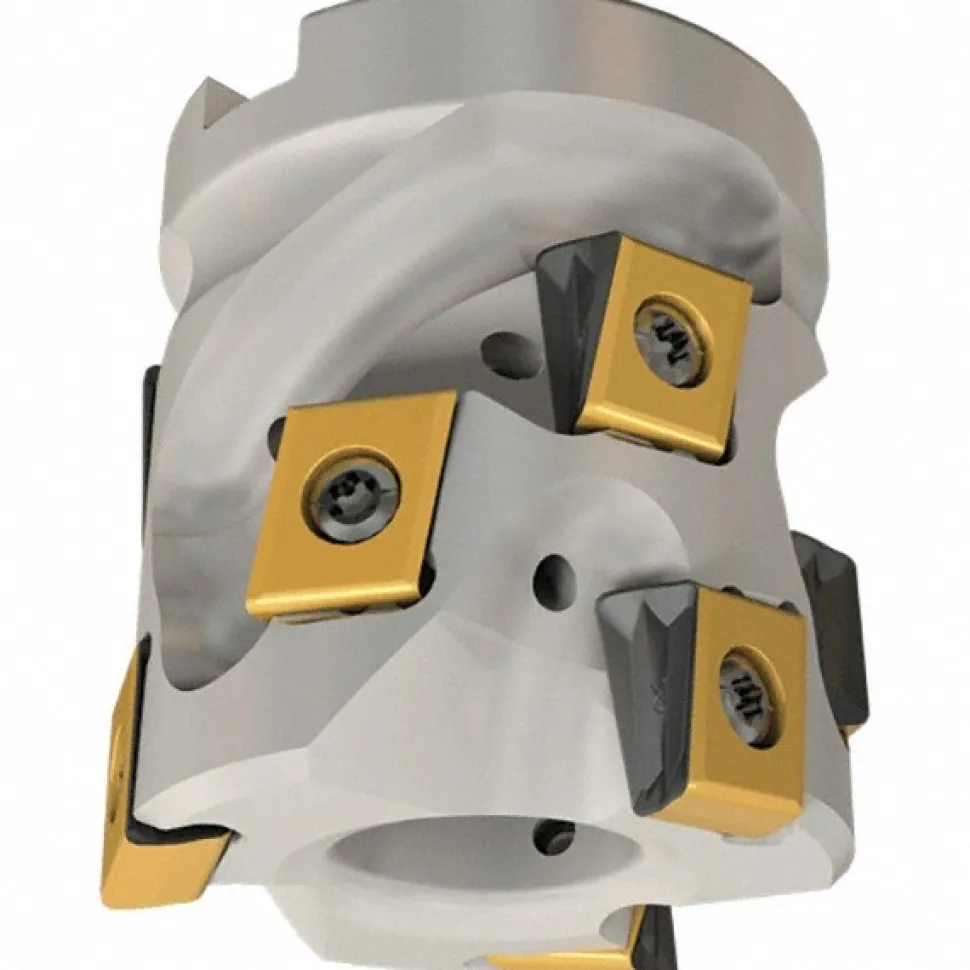

1-1/2″ Cut Dia, 3/4″ Arbor Hole Dia, 1.43″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 725,00 $.136,99 $Current price is: 136,99 $.
Specifications
| Maximum Cutting Diameter (Inch): 1-1/2 | Maximum Cutting Diameter (Decimal Inch): 1.5000 |
| Maximum Depth of Cut (Decimal Inch): 1.4300 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: T490 LN 1306 |
| Cutter Style: T490 SM-13 | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0/90 | Series: Helitang |
| Overall Height (Decimal Inch): 2.4400 | Hub Diameter (Decimal Inch): 1.4000 |
| Standards: ISO | Cutting Edge Length (Decimal Inch): 1.4300 |
| Minimum Insert Radius (Decimal Inch): 0.0310 | Complete Insert Compatibility: T490 LNAR 1306; T490 LNMT/LNHT 1306 |
| UNSPSC Code: 27112803 | Maximum Insert Radius (Decimal Inch): 0.2500 |
| Coolant Through: Yes | Number Of Cutter Inserts: 6 |
| Number Of Flutes: 2 | Country of Origin: Israel |
| Maximum Cutting Diameter (Inch): 1-1/2 | |
| Maximum Cutting Diameter (Decimal Inch): 1.5000 | |
| Maximum Depth of Cut (Decimal Inch): 1.4300 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: T490 LN 1306 | |
| Cutter Style: T490 SM-13 | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: Helitang | |
| Overall Height (Decimal Inch): 2.4400 | |
| Hub Diameter (Decimal Inch): 1.4000 | |
| Standards: ISO | |
| Cutting Edge Length (Decimal Inch): 1.4300 | |
| Minimum Insert Radius (Decimal Inch): 0.0310 | |
| Complete Insert Compatibility: T490 LNAR 1306; T490 LNMT/LNHT 1306 | |
| UNSPSC Code: 27112803 | |
| Maximum Insert Radius (Decimal Inch): 0.2500 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 2 | |
| Country of Origin: Israel |
| MSC# | 91166462 |
| Mfr# | 3181022 |
