Sale!

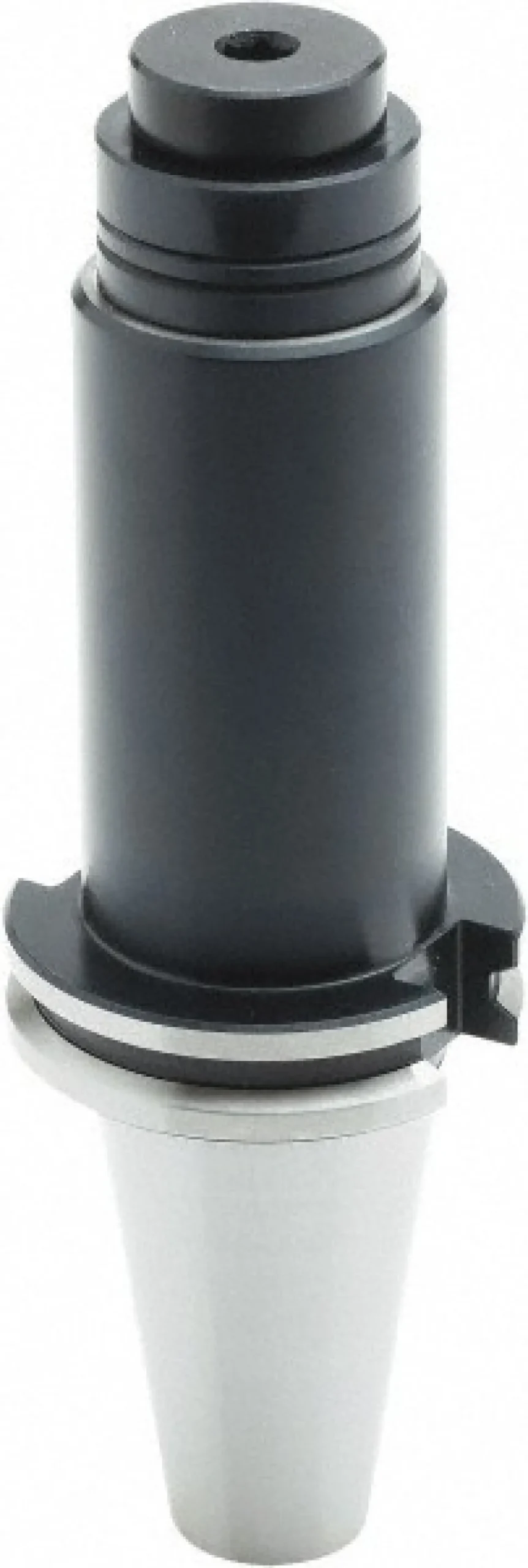

1″ Dia Milling Machine Arbor

Original price was: 339,00 $.Current price is: 138,99 $.

Specifications

Product Type: Milling Machine Arbor	Milling Arbor Style: Stub
Shank Type: Taper	Taper Size: CAT40
Overall Length (Decimal Inch): 6.6900	Arbor Diameter (Inch): 1
Arbor Diameter (Decimal Inch): 1.0000	Arbor Diameter: 1 in; 1.0 in
Projection (Inch): 4	Projection (Decimal Inch): 4.0000
Shoulder to Nut Length (Decimal Inch): 3.2500	Shoulder to Nut Length (Inch): 3-1/4
Includes: Drive Key; (3) Spacers; Lock Screw	UNSPSC Code: 27112800
Country of Origin: UNITED STATES
Product Type: Milling Machine Arbor
Milling Arbor Style: Stub
Shank Type: Taper
Taper Size: CAT40
Overall Length (Decimal Inch): 6.6900
Arbor Diameter (Inch): 1
Arbor Diameter (Decimal Inch): 1.0000
Arbor Diameter: 1 in; 1.0 in
Projection (Inch): 4
Projection (Decimal Inch): 4.0000
Shoulder to Nut Length (Decimal Inch): 3.2500
Shoulder to Nut Length (Inch): 3-1/4
Includes: Drive Key; (3) Spacers; Lock Screw
UNSPSC Code: 27112800
Country of Origin: UNITED STATES
