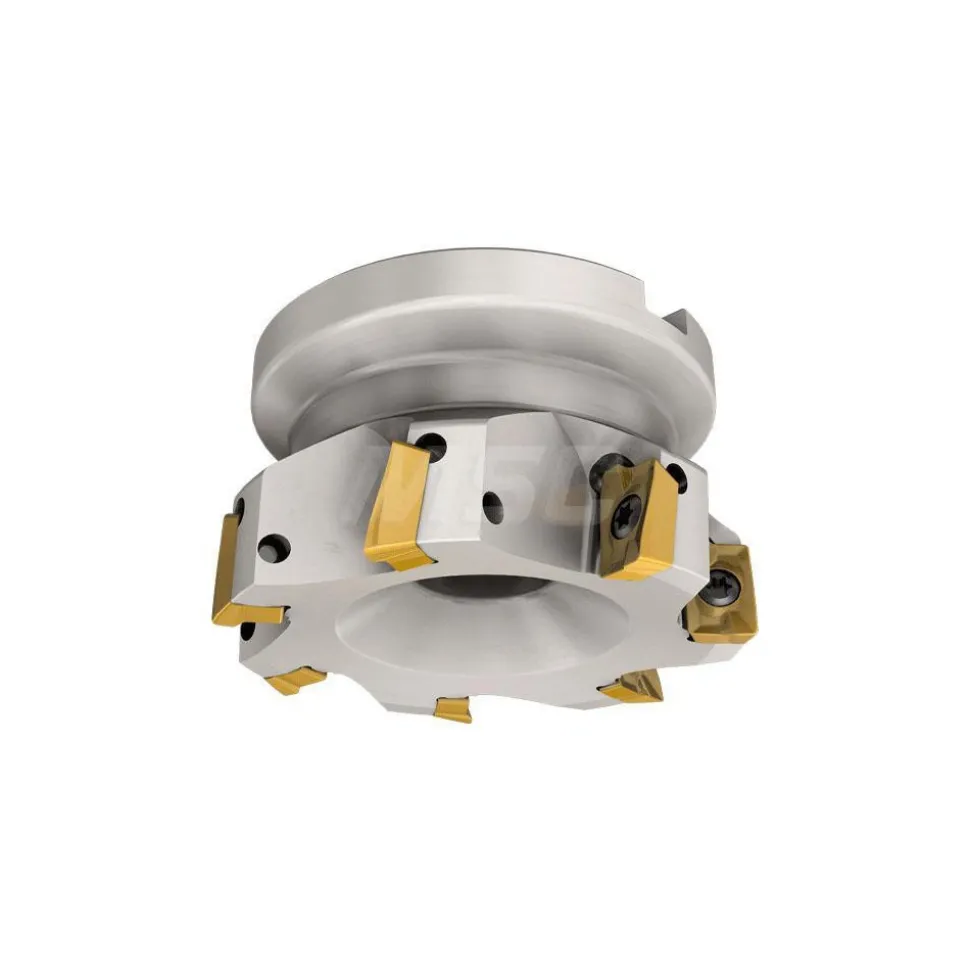

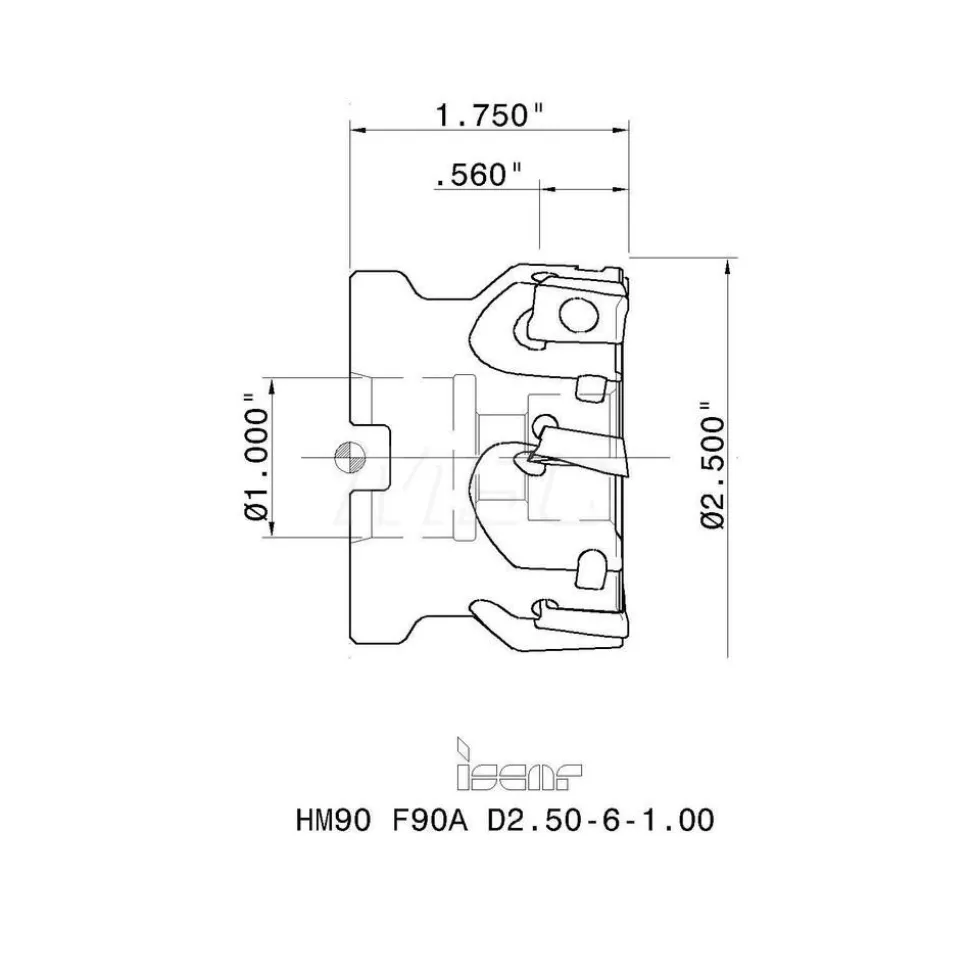

2-1/2″ Cut Dia, 1″ Arbor Hole Dia, 0.56″ Max Depth, Indexable Square-Shoulder Face Mill
124,89 $
Specifications
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Depth of Cut (Decimal Inch): 0.5600 |
| Arbor Hole Diameter (Inch): 1 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Compatible Insert Size Code: AD 1505; HM90 AD 1505 | Cutter Style: HM90 F90A-15 |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0/90 | Series: HM90 |
| Maximum Ramping Angle: 2.00 | Overall Height (Inch): 1-3/4 |
| Overall Height (Decimal Inch): 1.7500 | Keyway Width (Decimal Inch): 0.3750 |
| Hub Diameter (Decimal Inch): 2.3300 | Standards: ISO |
| Counterbore Diameter (Decimal Inch): 0.7800 | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM90 F90A D2.50-6-1.00 | Keyway Depth (Decimal Inch): 0.2188 |
| Coolant Through: No | Number Of Cutter Inserts: 6 |
| Number Of Flutes: 6 | Country of Origin: Germany |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Depth of Cut (Decimal Inch): 0.5600 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: AD 1505; HM90 AD 1505 | |
| Cutter Style: HM90 F90A-15 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: HM90 | |
| Maximum Ramping Angle: 2.00 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Keyway Width (Decimal Inch): 0.3750 | |
| Hub Diameter (Decimal Inch): 2.3300 | |
| Standards: ISO | |
| Counterbore Diameter (Decimal Inch): 0.7800 | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 F90A D2.50-6-1.00 | |
| Keyway Depth (Decimal Inch): 0.2188 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 | |
| Country of Origin: Germany |
| MSC# | 60843505 |
| Mfr# | 3102119 |
| Big Book# | 691 |
