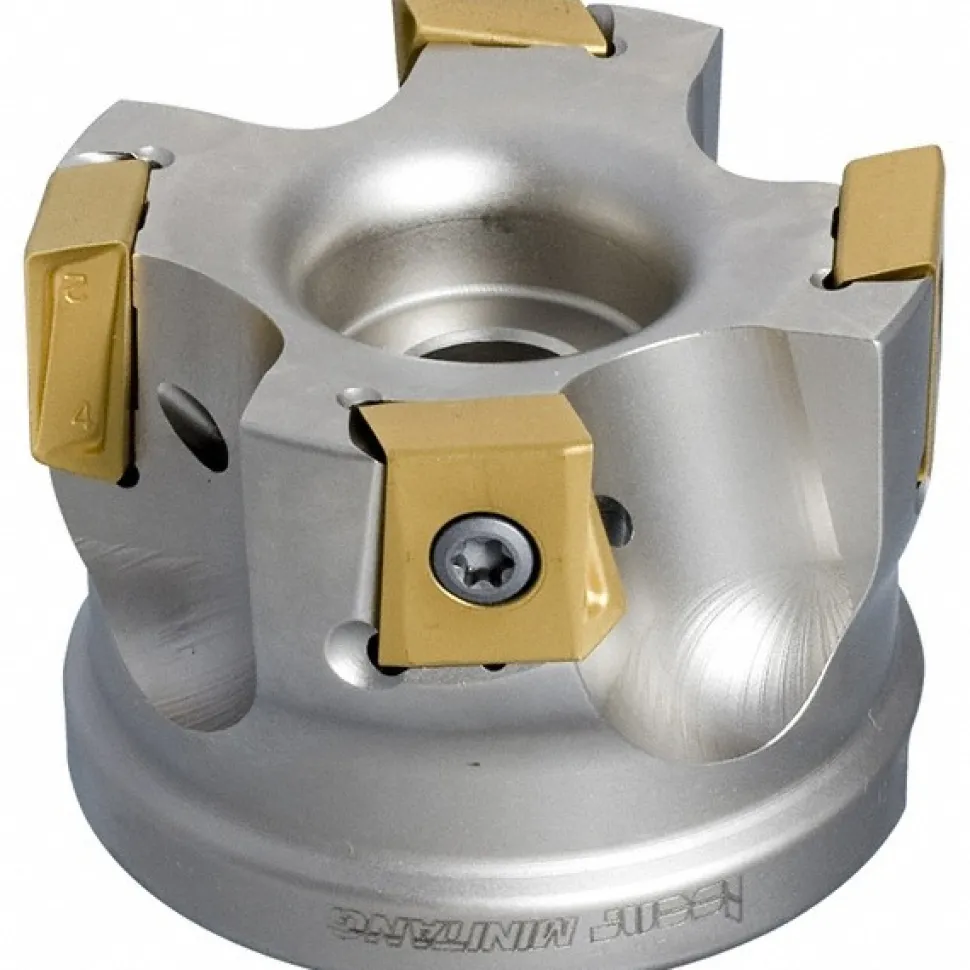

2-1/2″ Cut Dia, 1″ Arbor Hole Dia, 0.63″ Max Depth, Indexable Square-Shoulder Face Mill
134,99 $
Specifications
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Cutting Diameter (Decimal Inch): 2.5000 |
| Maximum Depth of Cut (Decimal Inch): 0.6300 | Arbor Hole Diameter (Inch): 1 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Compatible Insert Size Code: T490 LN.T1607 |
| Cutter Style: T490 FLN-08 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Series: Helitang | Overall Height (Decimal Inch): 1.7500 |
| Keyway Width (Decimal Inch): 0.3750 | Hub Diameter (Decimal Inch): 1.0000 |
| Hub Diameter (Inch): 1 | Pitch Type: Fine |
| Standards: ISO | Coolant Hole Diameter (Decimal Inch): 0.7800 |
| Complete Insert Compatibility: T490 LNMT 1607PN-R; T490 LNHT 160712PNR; T490 LNHT 160724PNR; T490 LNHT 160708PNR; T490 LNHT 160716PNR; T490 LNHT 160732PNR; T490 LNMT 1607PN-R-CS | UNSPSC Code: 27112803 |
| Keyway Depth (Decimal Inch): 0.2190 | Coolant Through: Yes |
| Number Of Cutter Inserts: 6 | Number Of Flutes: 6 |
| Country of Origin: Israel | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.5000 | |
| Maximum Depth of Cut (Decimal Inch): 0.6300 | |
| Arbor Hole Diameter (Inch): 1 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Compatible Insert Size Code: T490 LN.T1607 | |
| Cutter Style: T490 FLN-08 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: Helitang | |
| Overall Height (Decimal Inch): 1.7500 | |
| Keyway Width (Decimal Inch): 0.3750 | |
| Hub Diameter (Decimal Inch): 1.0000 | |
| Hub Diameter (Inch): 1 | |
| Pitch Type: Fine | |
| Standards: ISO | |
| Coolant Hole Diameter (Decimal Inch): 0.7800 | |
| Complete Insert Compatibility: T490 LNMT 1607PN-R; T490 LNHT 160712PNR; T490 LNHT 160724PNR; T490 LNHT 160708PNR; T490 LNHT 160716PNR; T490 LNHT 160732PNR; T490 LNMT 1607PN-R-CS | |
| UNSPSC Code: 27112803 | |
| Keyway Depth (Decimal Inch): 0.2190 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 | |
| Country of Origin: Israel |
| MSC# | 62722863 |
| Mfr# | 3105213 |
