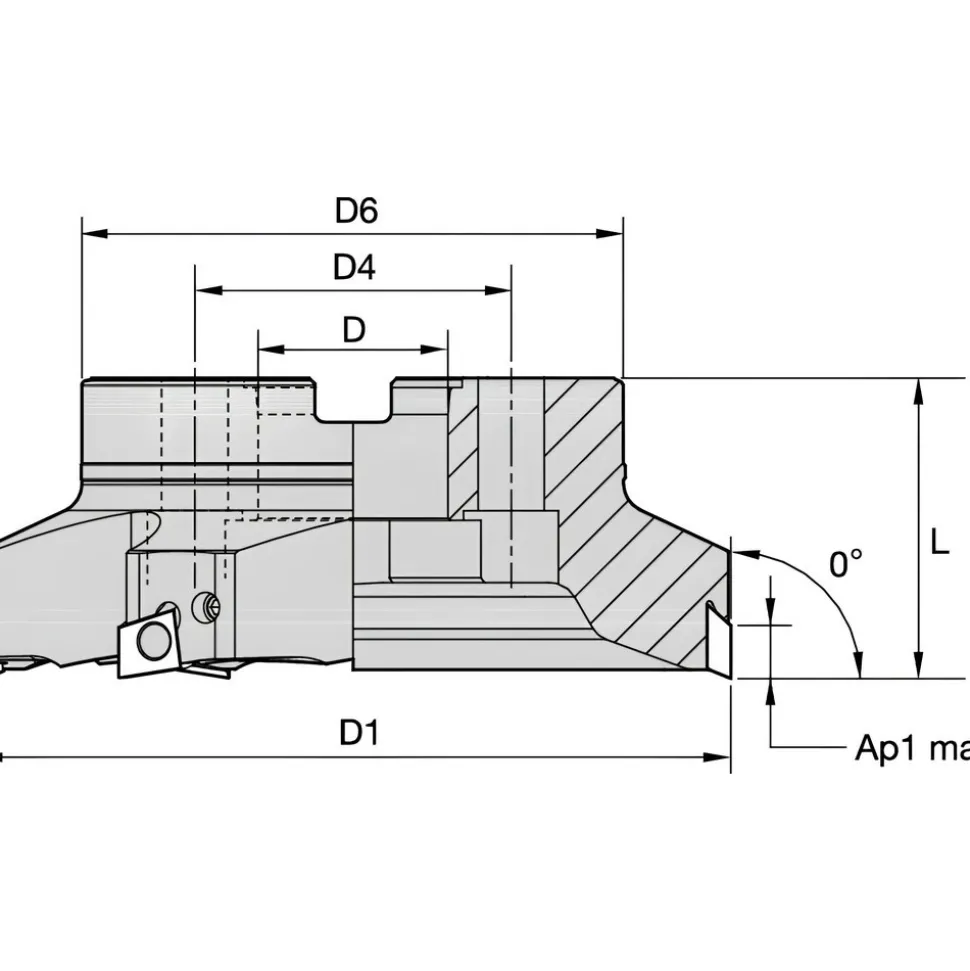

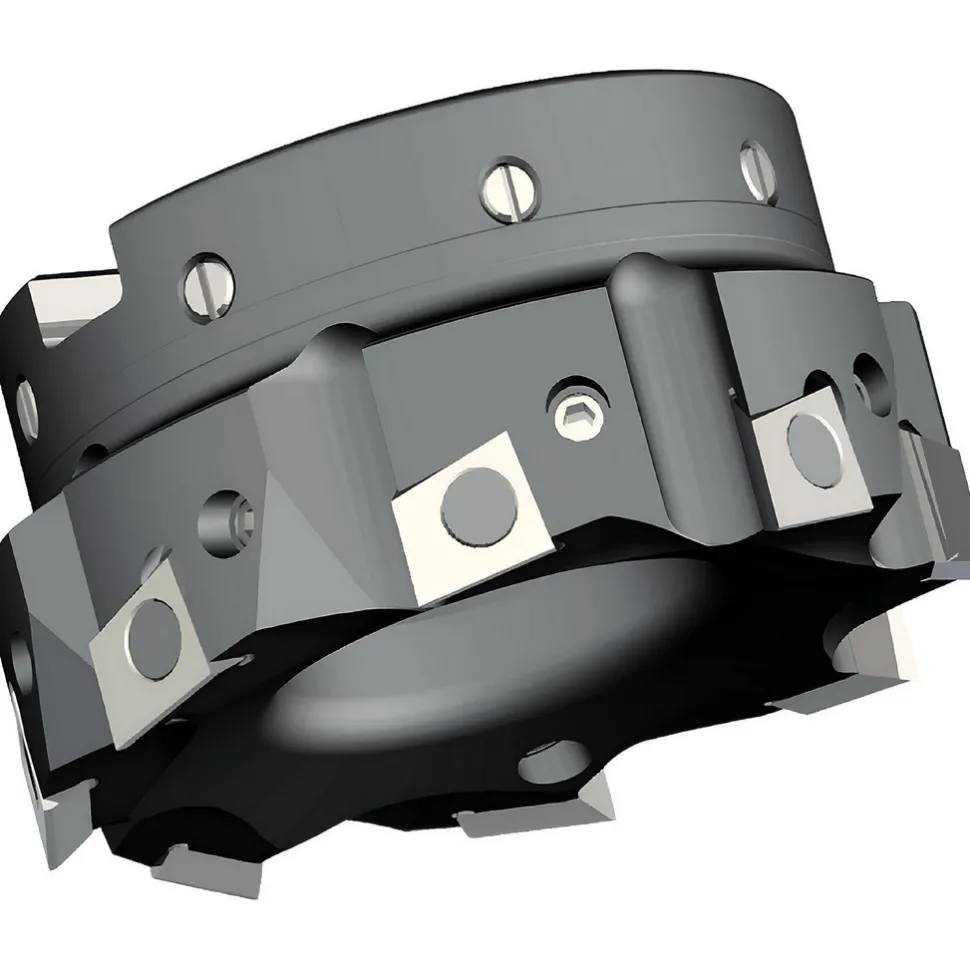

2-1/2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.394″ Max Depth, Indexable Square-Shoulder Face Mill
122,99 $
Specifications
| Maximum Cutting Diameter (Inch): 2-1/2 | Maximum Cutting Diameter (mm): 63.50 |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: BGHX 15L5… |
| Cutting Direction: Right Hand | Insert Holding Method: Clamp |
| Lead Angle: 0/90 | Rake: Positive |
| Rake Angle: 24.00 | Series: Fix-Perfect |
| Maximum Body Diameter (Decimal Inch): 2.4250 | Overall Height (mm): 39.88 |
| Overall Height (Decimal Inch): 1.5700 | Keyway Width (mm): 8.31 |
| Keyway Width (Decimal Inch): 0.3272 | Hub Diameter (mm): 44.45 |
| Hub Diameter (Decimal Inch): 1.7500 | Hub Diameter (Inch): 1-3/4 |
| UNSPSC Code: 27112803 | Coolant Through: No |
| Number Of Cutter Inserts: 3 | Number Of Flutes: 3 |
| Country of Origin: Czechia | |
| Maximum Cutting Diameter (Inch): 2-1/2 | |
| Maximum Cutting Diameter (mm): 63.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: BGHX 15L5… | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Clamp | |
| Lead Angle: 0/90 | |
| Rake: Positive | |
| Rake Angle: 24.00 | |
| Series: Fix-Perfect | |
| Maximum Body Diameter (Decimal Inch): 2.4250 | |
| Overall Height (mm): 39.88 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Keyway Width (mm): 8.31 | |
| Keyway Width (Decimal Inch): 0.3272 | |
| Hub Diameter (mm): 44.45 | |
| Hub Diameter (Decimal Inch): 1.7500 | |
| Hub Diameter (Inch): 1-3/4 | |
| UNSPSC Code: 27112803 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 3 | |
| Number Of Flutes: 3 | |
| Country of Origin: Czechia |
| MSC# | 01230481 |
| Mfr# | 2235053 |
| Big Book# | 717 |
