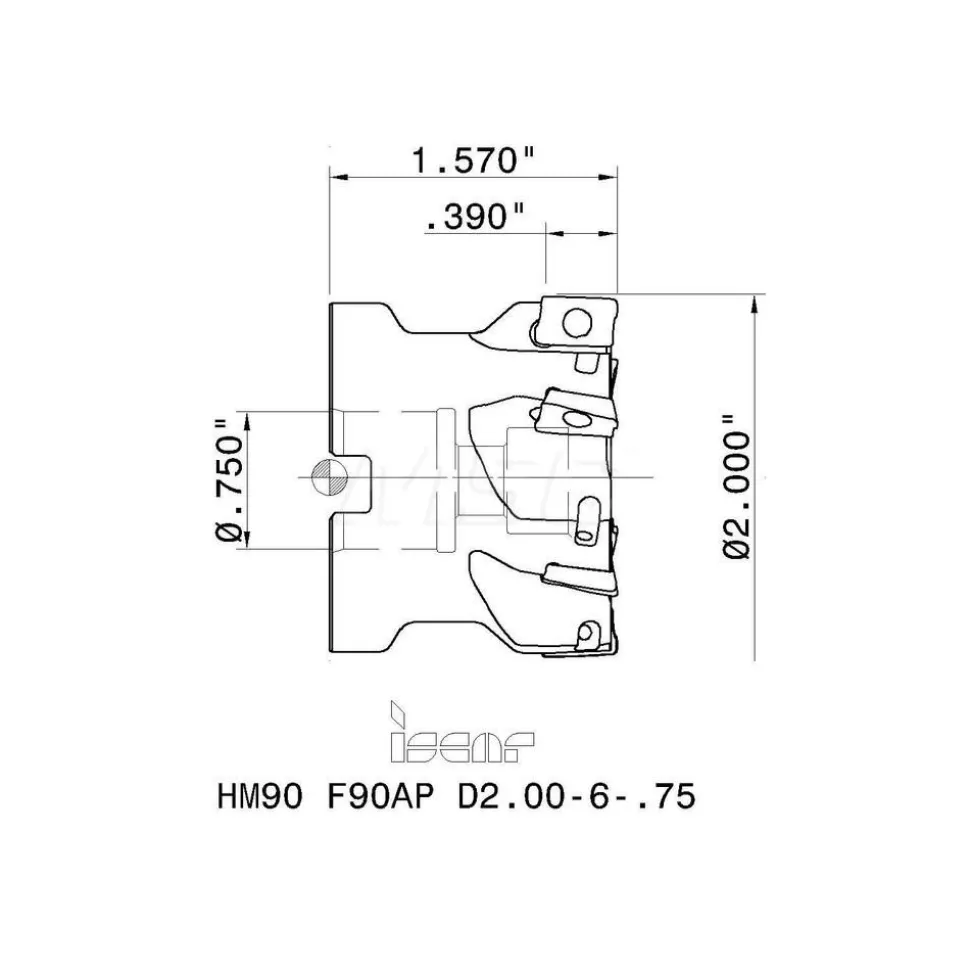

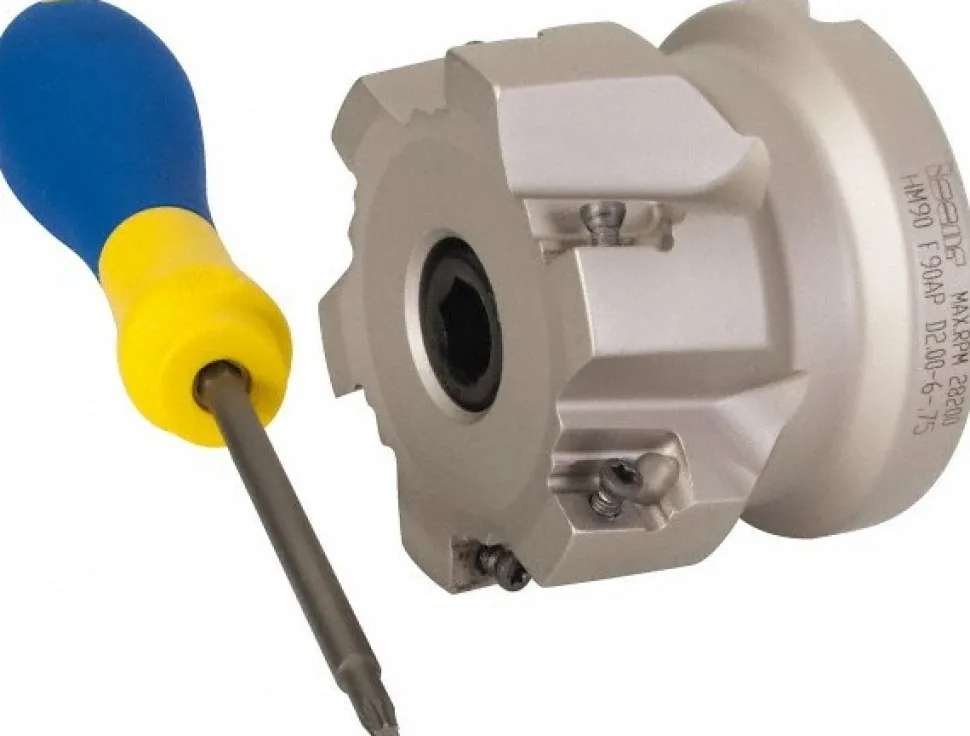

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.39″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 727,00 $.128,89 $Current price is: 128,89 $.
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.3900 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: AP 1003; HM90 AP 1003 |
| Cutter Style: HM90 F90AP-10 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 0/90 |
| Series: HM90 | Maximum Ramping Angle: 1.40 |
| Overall Height (Decimal Inch): 1.5700 | Keyway Width (Decimal Inch): 0.3125 |
| Hub Diameter (Decimal Inch): 1.8900 | Standards: ISO |
| Complete Insert Compatibility: AP… 1003; HM90 APKT | UNSPSC Code: 27112803 |
| Manufacturers Catalog Number: HM90 F90AP D2.00-6-.75 | Keyway Depth (Decimal Inch): 0.1875 |
| Coolant Through: No | Number Of Cutter Inserts: 6 |
| Number Of Flutes: 6 | Country of Origin: Israel |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.3900 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: AP 1003; HM90 AP 1003 | |
| Cutter Style: HM90 F90AP-10 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Series: HM90 | |
| Maximum Ramping Angle: 1.40 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Keyway Width (Decimal Inch): 0.3125 | |
| Hub Diameter (Decimal Inch): 1.8900 | |
| Standards: ISO | |
| Complete Insert Compatibility: AP… 1003; HM90 APKT | |
| UNSPSC Code: 27112803 | |
| Manufacturers Catalog Number: HM90 F90AP D2.00-6-.75 | |
| Keyway Depth (Decimal Inch): 0.1875 | |
| Coolant Through: No | |
| Number Of Cutter Inserts: 6 | |
| Number Of Flutes: 6 | |
| Country of Origin: Israel |
| MSC# | 88848726 |
| Mfr# | 3102078 |
| Big Book# | 691 |
