Sale!

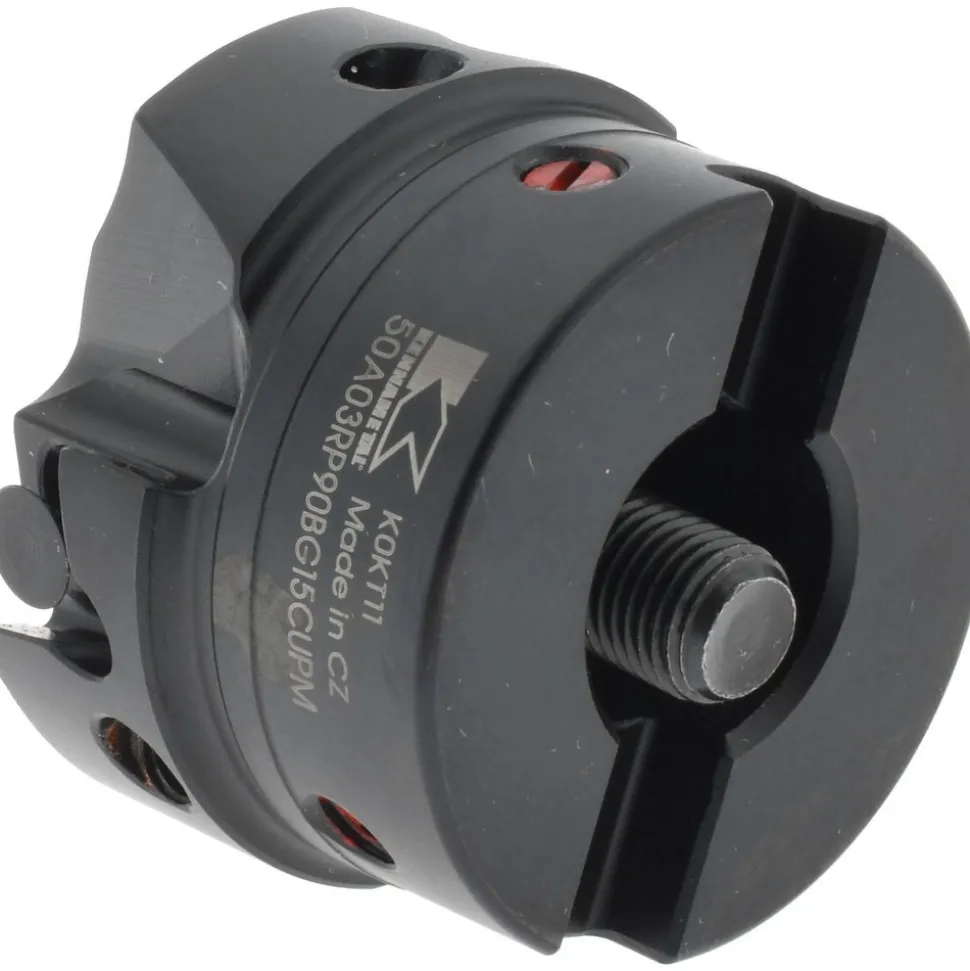

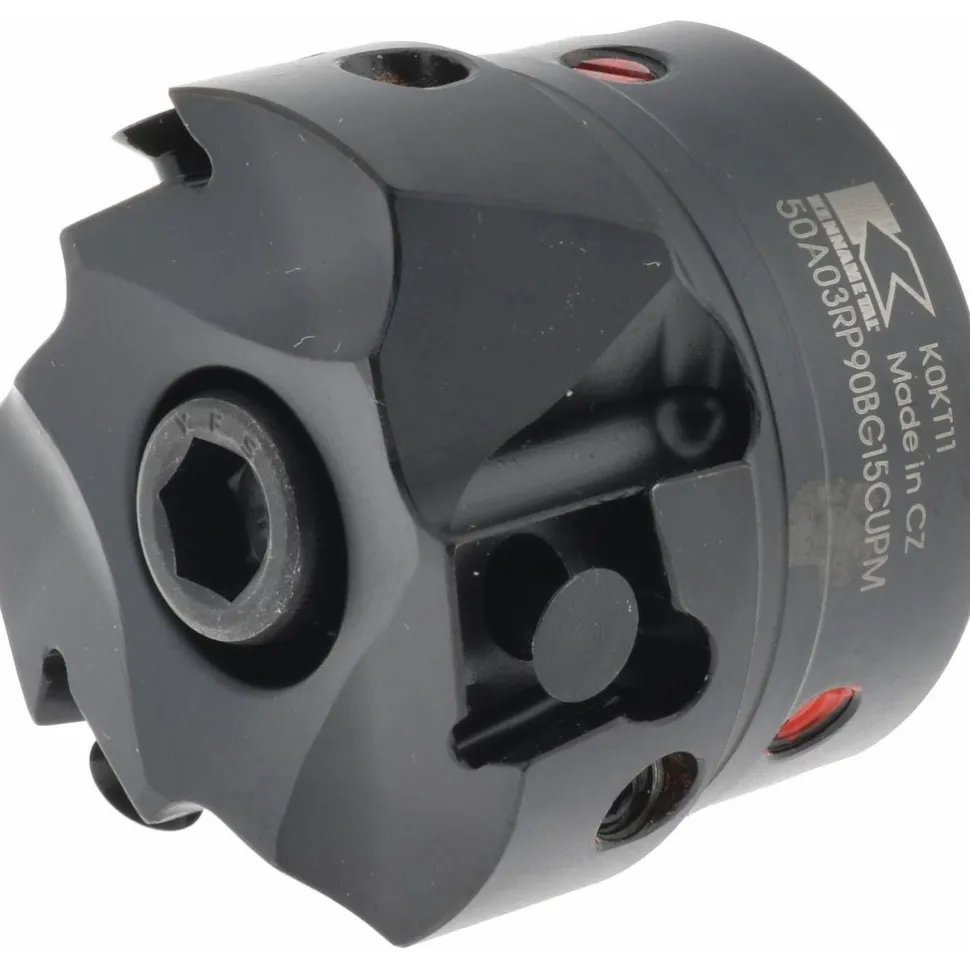

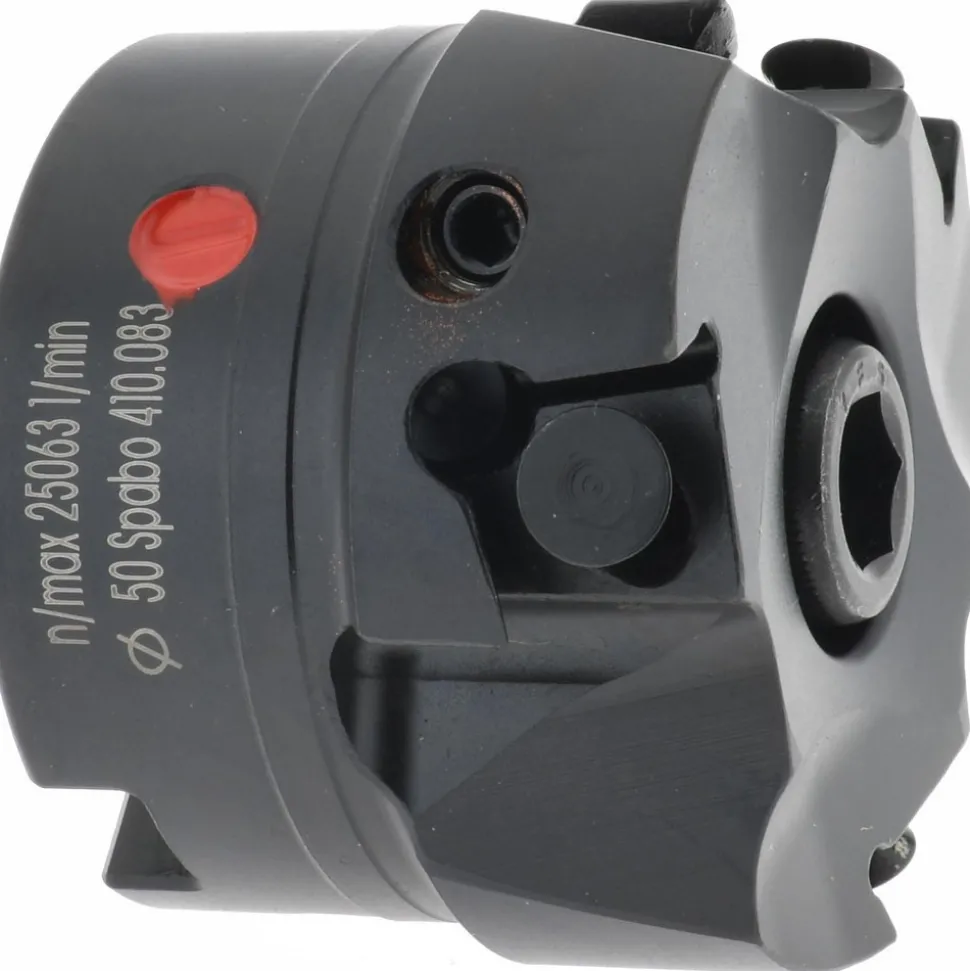

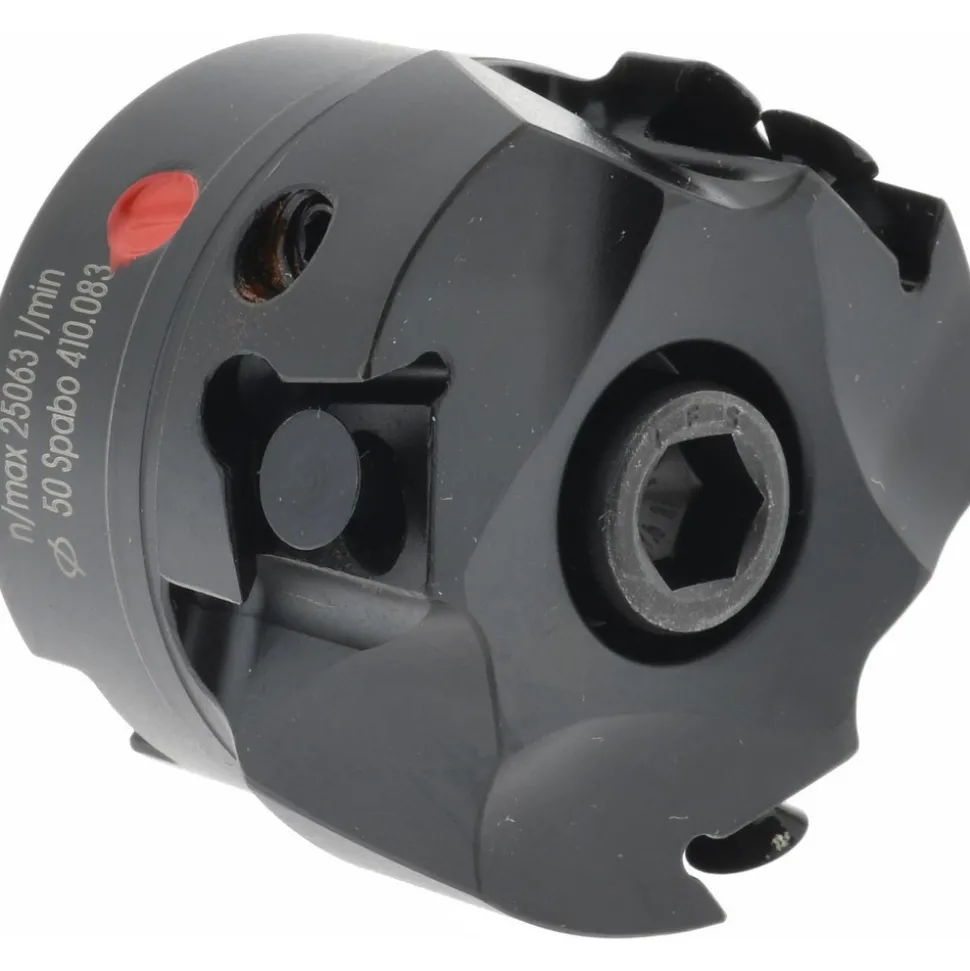

2″ Cut Dia, 3/4″ Arbor Hole Dia, 0.394″ Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 681,00 $.120,89 $Current price is: 120,89 $.
Specifications
| Maximum Cutting Diameter (Inch): 2 | Maximum Cutting Diameter (Decimal Inch): 2.0000 |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | Arbor Hole Diameter (Inch): 3/4 |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | Compatible Insert Size Code: BGHX 15L5… |
| Cutting Direction: Right Hand | Insert Holding Method: Screw; Clamp |
| Lead Angle: 0/90 | Rake: Positive |
| Rake Angle: 24.00 | Series: Fix-Perfect |
| Maximum Body Diameter (Decimal Inch): 1.9060 | Overall Height (Decimal Inch): 1.5700 |
| Keyway Width (Decimal Inch): 0.3100 | Hub Diameter (mm): 44.45 |
| Hub Diameter (Decimal Inch): 1.7500 | Hub Diameter (Inch): 1-3/4 |
| Pitch Type: Coarse | UNSPSC Code: 27112803 |
| Coolant Through: Yes | Number Of Cutter Inserts: 3 |
| Number Of Flutes: 3 | Country of Origin: Czechia |
| Maximum Cutting Diameter (Inch): 2 | |
| Maximum Cutting Diameter (Decimal Inch): 2.0000 | |
| Maximum Depth of Cut (Decimal Inch): 0.3940 | |
| Arbor Hole Diameter (Inch): 3/4 | |
| Arbor Hole Diameter (Decimal Inch): 0.7500 | |
| Compatible Insert Size Code: BGHX 15L5… | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 0/90 | |
| Rake: Positive | |
| Rake Angle: 24.00 | |
| Series: Fix-Perfect | |
| Maximum Body Diameter (Decimal Inch): 1.9060 | |
| Overall Height (Decimal Inch): 1.5700 | |
| Keyway Width (Decimal Inch): 0.3100 | |
| Hub Diameter (mm): 44.45 | |
| Hub Diameter (Decimal Inch): 1.7500 | |
| Hub Diameter (Inch): 1-3/4 | |
| Pitch Type: Coarse | |
| UNSPSC Code: 27112803 | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 3 | |
| Number Of Flutes: 3 | |
| Country of Origin: Czechia |
| MSC# | 41185299 |
| Mfr# | 1803175 |
| Big Book# | 717 |
