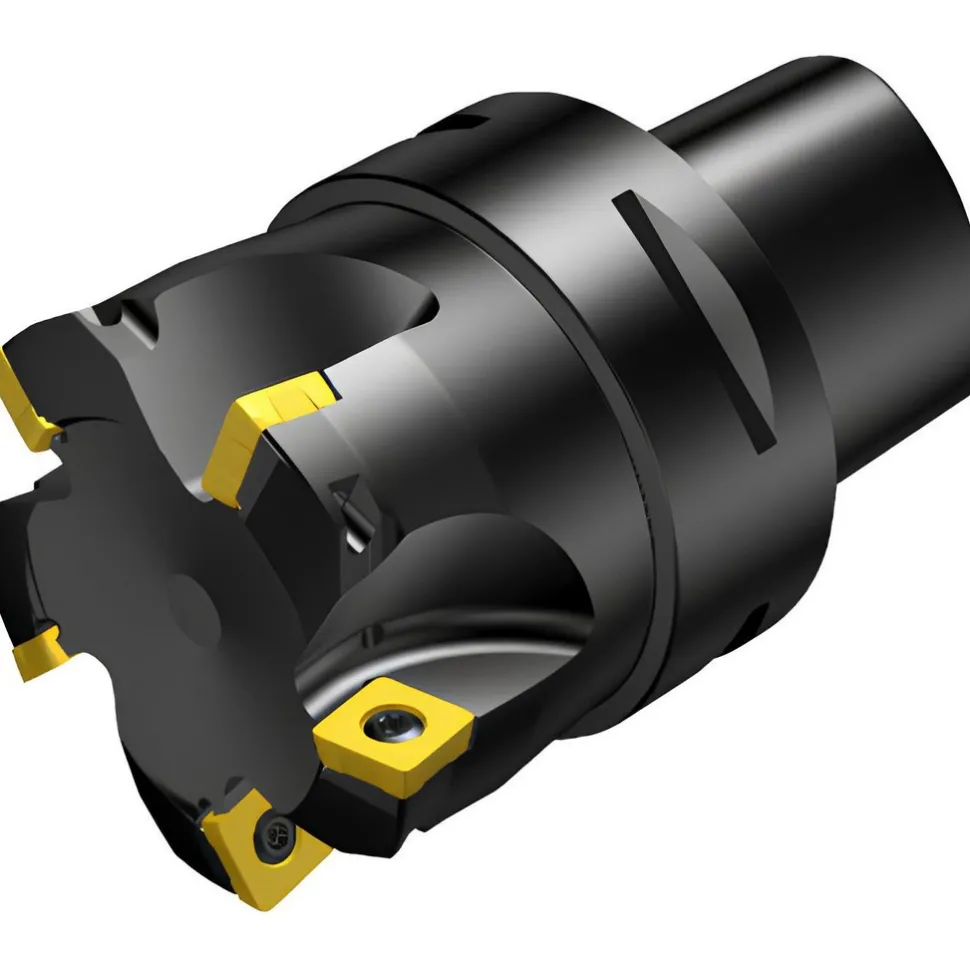

27.9mm Cut Dia, 40mm Arbor Hole Dia, 1.2mm Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 780,00 $.126,89 $Current price is: 126,89 $.
Specifications
| Maximum Cutting Diameter (Decimal Inch): 1.0984 | Maximum Cutting Diameter (mm): 27.90 |
| Maximum Depth of Cut (mm): 1.20 | Maximum Depth of Cut (Decimal Inch): 0.0472 |
| Arbor Hole Diameter (Decimal Inch): 1.5748 | Compatible Insert Size Code: R210-090412M |
| Cutter Style: R210..Cx | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 10 |
| Series: CoroMill 210 | Maximum Body Diameter (Decimal Inch): 1.5339 |
| Overall Height (mm): 84.00 | Overall Height (Decimal Inch): 3.3071 |
| Complete Insert Compatibility: R210-090412M | UNSPSC Code: 27112803 |
| Toolholder Material: Steel | Coolant Through: Yes |
| Number Of Cutter Inserts: 4 | Country of Origin: VARIOUS |
| Maximum Cutting Diameter (Decimal Inch): 1.0984 | |
| Maximum Cutting Diameter (mm): 27.90 | |
| Maximum Depth of Cut (mm): 1.20 | |
| Maximum Depth of Cut (Decimal Inch): 0.0472 | |
| Arbor Hole Diameter (Decimal Inch): 1.5748 | |
| Compatible Insert Size Code: R210-090412M | |
| Cutter Style: R210..Cx | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 10 | |
| Series: CoroMill 210 | |
| Maximum Body Diameter (Decimal Inch): 1.5339 | |
| Overall Height (mm): 84.00 | |
| Overall Height (Decimal Inch): 3.3071 | |
| Complete Insert Compatibility: R210-090412M | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 4 | |
| Country of Origin: VARIOUS |
| MSC# | 54952312 |
| Mfr# | 5742545 |
