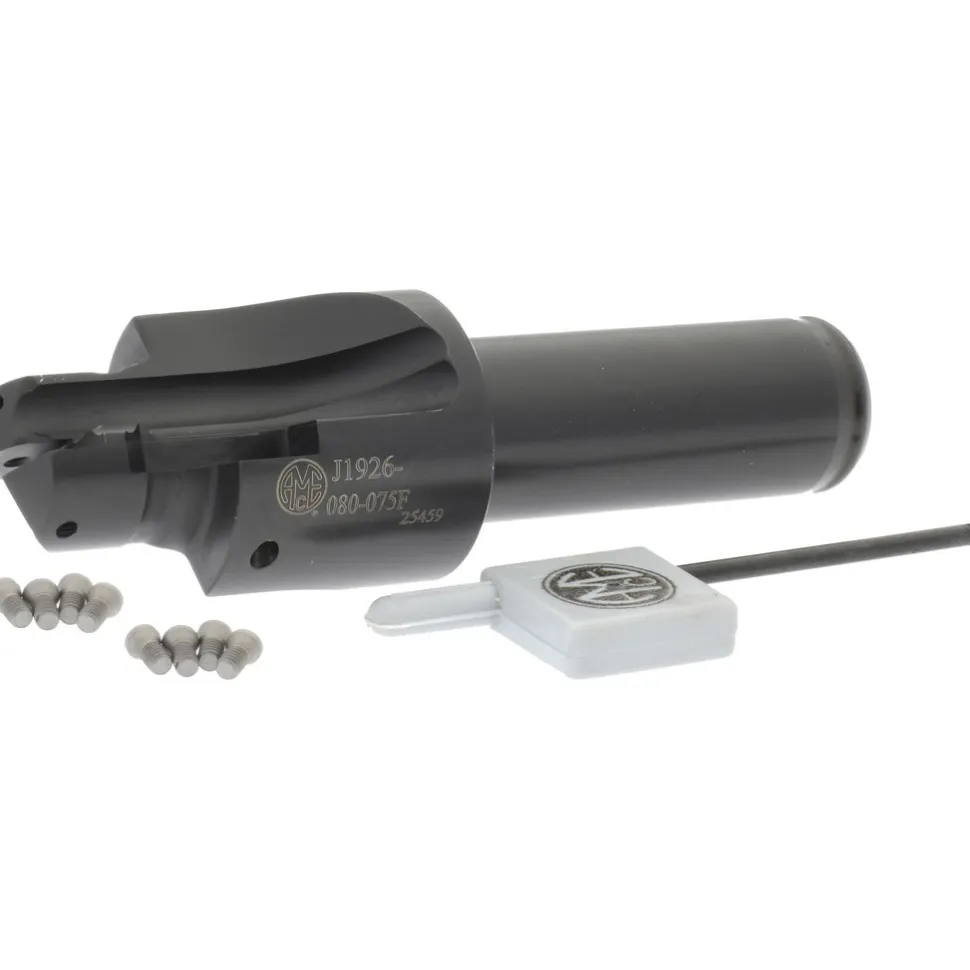

3/4-16, 0.688" Pilot Dia, 1.207" Spotface Dia, 0.688" Pilot Length, Tube Dash 8, Indexable Porting Tool

3/4-16, 0.688″ Pilot Dia, 1.207″ Spotface Dia, 0.688″ Pilot Length, Tube Dash 8, Indexable Porting Tool

124,99 $

SKU: SKULx7TocthW5 Categories: Indexable Cutting Tools, Indexable Holemaking, Shop All Products Tag: Allied Machine And Engineering Brand: Allied Machine And Engineering

Description
Reviews (0)

Specifications

Port Standard Designation: IS0 11926-1; SAE J1926-1/MS-16142	Pilot Insert Type: Spade Blade Insert
Port Thread Size: 3/4-16	Tube Dash Number: 8.000
Pilot Diameter (Decimal Inch): 0.6880	Spotface Diameter (Decimal Inch): 1.2070
Shank Diameter (Inch): 0.6875	Compatible Insert Style: J1926
Number of Porting Inserts: 2	Compatible Insert Size Code: 4C10H-0022; 450H-0022
Coated: Coated	Porting Diameter (Decimal Inch): 0.8130
Overall Length (Decimal Inch): 3.9510	Seal Angle Length: 0.106 in
Primary Workpiece Material: Universal	Primary Workpiece Material Code: P; H; K; N
Through Coolant: No; Yes	Porting Angle: 15
Porting Angle Length (Decimal Inch): 0.1060	Head Length (Decimal Inch): 1.9820
Shank Length (Decimal Inch): 1.9690	Series: AccuPort 432
UNSPSC Code: 23241603	Country of Origin: UNITED STATES
Port Standard Designation: IS0 11926-1; SAE J1926-1/MS-16142
Pilot Insert Type: Spade Blade Insert
Port Thread Size: 3/4-16
Tube Dash Number: 8.000
Pilot Diameter (Decimal Inch): 0.6880
Spotface Diameter (Decimal Inch): 1.2070
Shank Diameter (Inch): 0.6875
Compatible Insert Style: J1926
Number of Porting Inserts: 2
Compatible Insert Size Code: 4C10H-0022; 450H-0022
Coated: Coated
Porting Diameter (Decimal Inch): 0.8130
Overall Length (Decimal Inch): 3.9510
Seal Angle Length: 0.106 in
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; H; K; N
Through Coolant: No; Yes
Porting Angle: 15
Porting Angle Length (Decimal Inch): 0.1060
Head Length (Decimal Inch): 1.9820
Shank Length (Decimal Inch): 1.9690
Series: AccuPort 432
UNSPSC Code: 23241603
Country of Origin: UNITED STATES
