Sale!

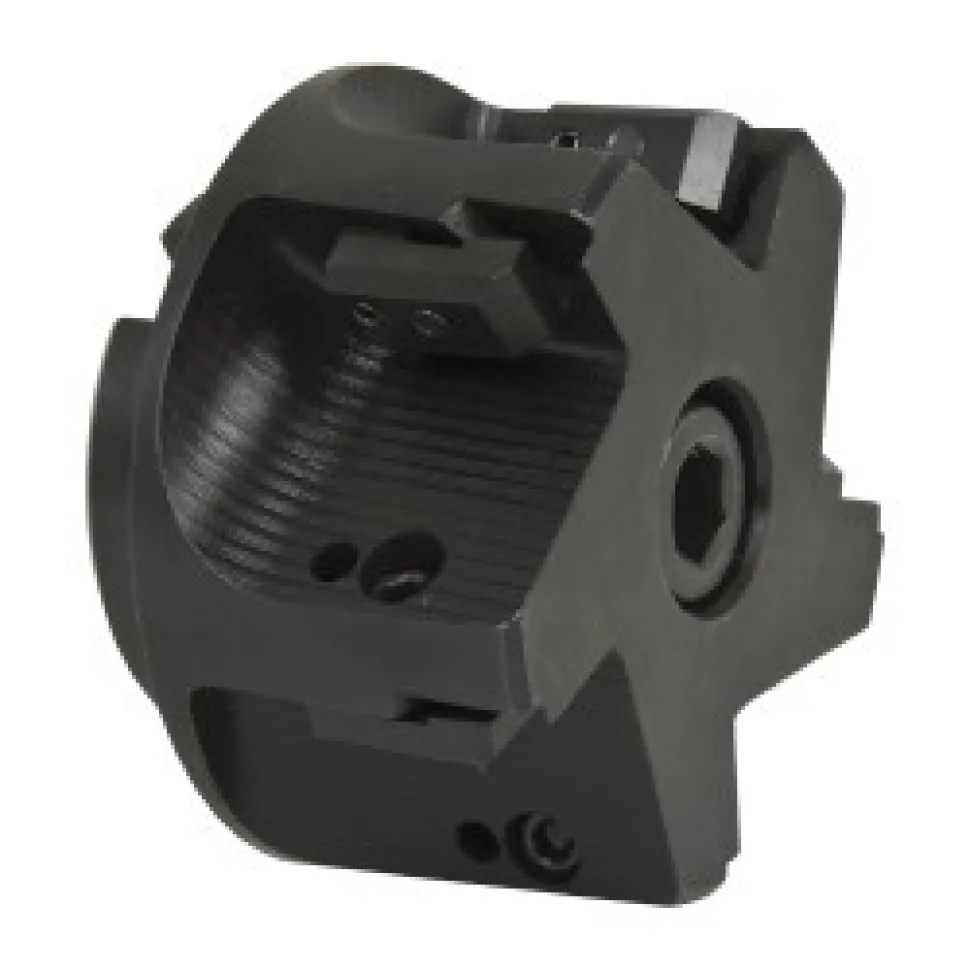

3″ Cut Dia, 1″ Arbor Hole Dia, 2″ Max Depth, Indexable Square-Shoulder Face Mill

Original price was: 318,00 $.Current price is: 120,89 $.

SKU: SKUXZzzLwwfpZ Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: APT Brand: APT

Description
Reviews (0)

Specifications

Maximum Cutting Diameter (Inch): 3	Maximum Cutting Diameter (Decimal Inch): 3.0000
Maximum Depth of Cut (Decimal Inch): 2.0000	Arbor Hole Diameter (Inch): 1
Arbor Hole Diameter (Decimal Inch): 1.0000	Compatible Insert Size Code: TPU 32; TPC 32; TPG32
Cutter Style: EMS	Cutting Direction: Right Hand
Insert Holding Method: Clamp	Lead Angle: 0/90
Rake: Positive	Rake Angle: 90.00
Series: EMS	Overall Height (Inch): 2
Overall Height (Decimal Inch): 2.0000	Cutting Edge Length (Inch): 2
Cutting Edge Length (Decimal Inch): 2.0000	Complete Insert Compatibility: TPG 324; TPG 322; TPG 323; TPG 320; TPG 321
UNSPSC Code: 27112803	Coolant Through: No
Number Of Cutter Inserts: 5	Number Of Flutes: 5
Country of Origin: UNITED STATES
Maximum Cutting Diameter (Inch): 3
Maximum Cutting Diameter (Decimal Inch): 3.0000
Maximum Depth of Cut (Decimal Inch): 2.0000
Arbor Hole Diameter (Inch): 1
Arbor Hole Diameter (Decimal Inch): 1.0000
Compatible Insert Size Code: TPU 32; TPC 32; TPG32
Cutter Style: EMS
Cutting Direction: Right Hand
Insert Holding Method: Clamp
Lead Angle: 0/90
Rake: Positive
Rake Angle: 90.00
Series: EMS
Overall Height (Inch): 2
Overall Height (Decimal Inch): 2.0000
Cutting Edge Length (Inch): 2
Cutting Edge Length (Decimal Inch): 2.0000
Complete Insert Compatibility: TPG 324; TPG 322; TPG 323; TPG 320; TPG 321
UNSPSC Code: 27112803
Coolant Through: No
Number Of Cutter Inserts: 5
Number Of Flutes: 5
Country of Origin: UNITED STATES
