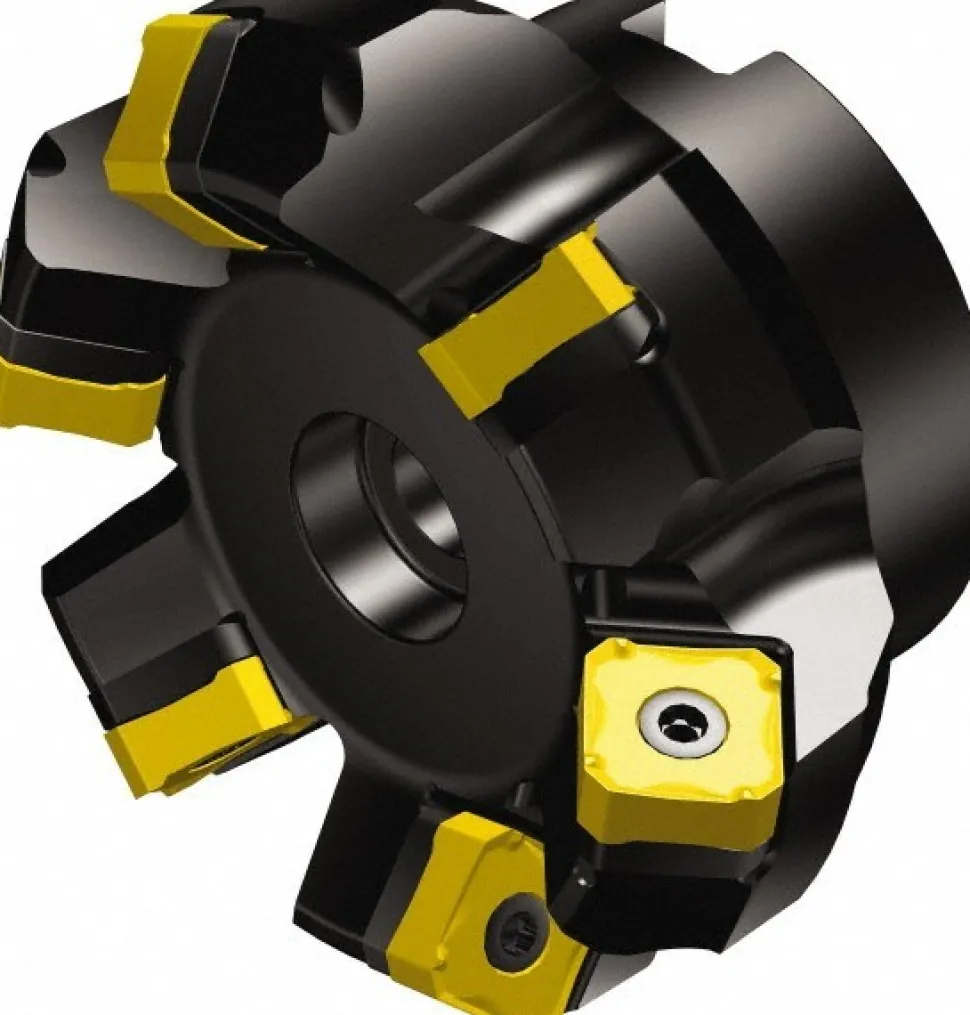

4″ Cut Dia, 1-1/2″ Arbor Hole Dia, 6mm Max Depth, Indexable Square-Shoulder Face Mill
140,89 $

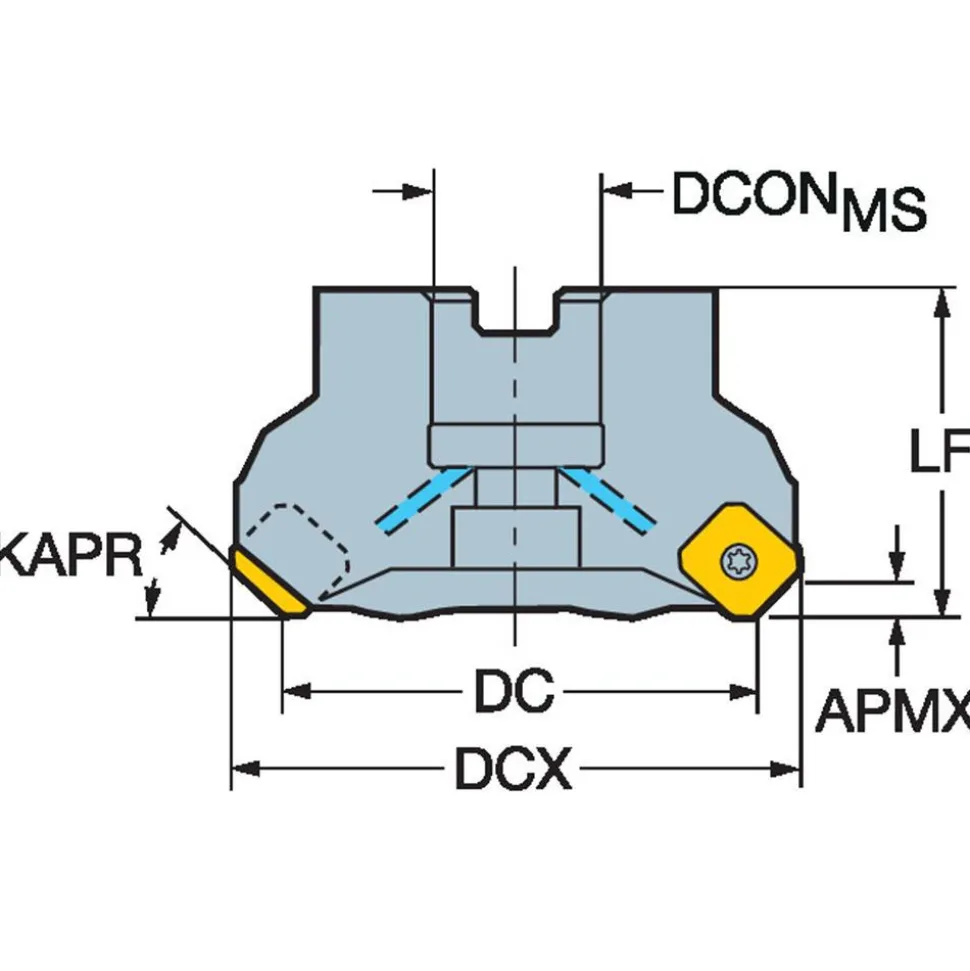

Specifications
| Maximum Cutting Diameter (Inch): 4 | Maximum Cutting Diameter (Decimal Inch): 4.0000 |
| Maximum Cutting Diameter (mm): 101.60 | Maximum Depth of Cut (mm): 6.00 |
| Maximum Depth of Cut (Decimal Inch): 0.2362 | Arbor Hole Diameter (Inch): 1-1/2 |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | Compatible Insert Size Code: 345R-13T5 |
| Cutter Style: A345 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 45 |
| Rake: Negative | Series: CoroMill 345 |
| Maximum Body Diameter (Decimal Inch): 4.0000 | Overall Height (mm): 63.00 |
| Overall Height (Decimal Inch): 2.4803 | Keyway Width (mm): 16.08 |
| Keyway Width (Decimal Inch): 0.6331 | Hub Diameter (mm): 38.10 |
| Hub Diameter (Inch): 1-1/2 | Pitch Type: Close |
| Cutting Edge Length (Decimal Inch): 0.2362 | Complete Insert Compatibility: 345R-13T5 |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: Yes | Number Of Cutter Inserts: 7 |
| Number Of Flutes: 7 | Country of Origin: UNITED STATES |
| Maximum Cutting Diameter (Inch): 4 | |
| Maximum Cutting Diameter (Decimal Inch): 4.0000 | |
| Maximum Cutting Diameter (mm): 101.60 | |
| Maximum Depth of Cut (mm): 6.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.2362 | |
| Arbor Hole Diameter (Inch): 1-1/2 | |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | |
| Compatible Insert Size Code: 345R-13T5 | |
| Cutter Style: A345 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 45 | |
| Rake: Negative | |
| Series: CoroMill 345 | |
| Maximum Body Diameter (Decimal Inch): 4.0000 | |
| Overall Height (mm): 63.00 | |
| Overall Height (Decimal Inch): 2.4803 | |
| Keyway Width (mm): 16.08 | |
| Keyway Width (Decimal Inch): 0.6331 | |
| Hub Diameter (mm): 38.10 | |
| Hub Diameter (Inch): 1-1/2 | |
| Pitch Type: Close | |
| Cutting Edge Length (Decimal Inch): 0.2362 | |
| Complete Insert Compatibility: 345R-13T5 | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 7 | |
| Number Of Flutes: 7 | |
| Country of Origin: UNITED STATES |
| MSC# | 52065216 |
| Mfr# | 5722549 |
