Sale!

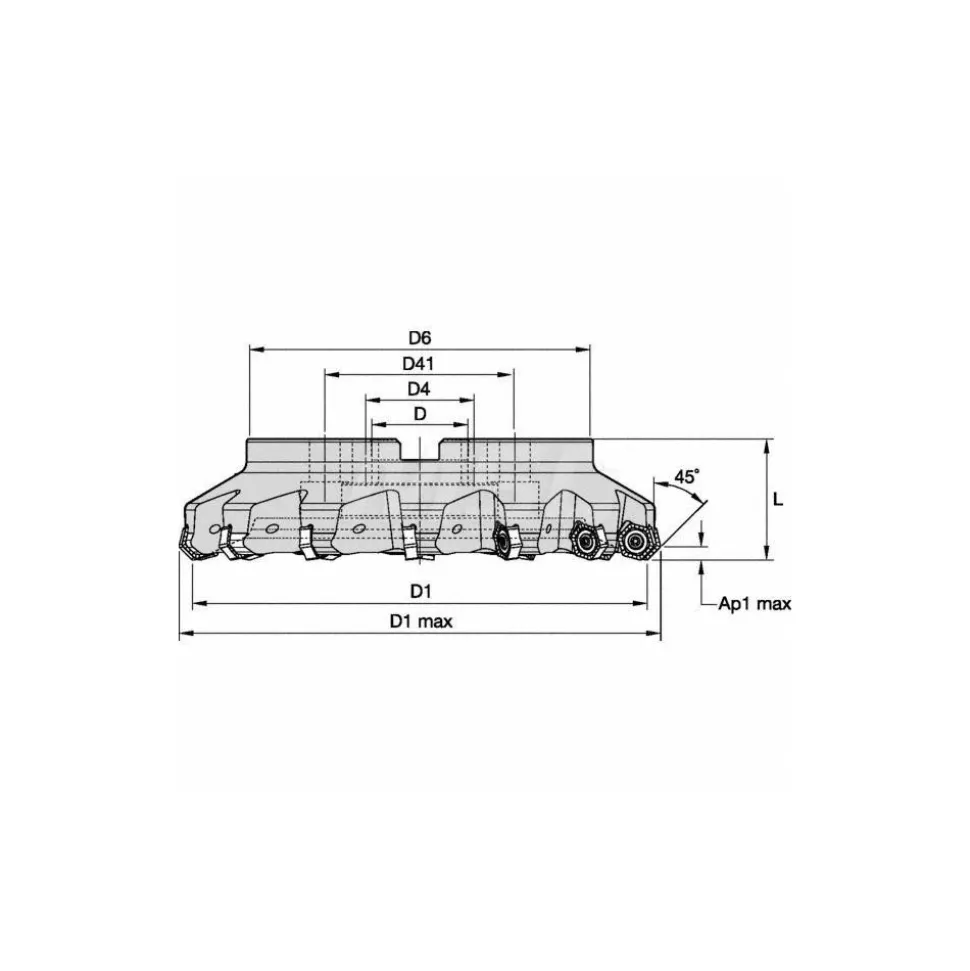

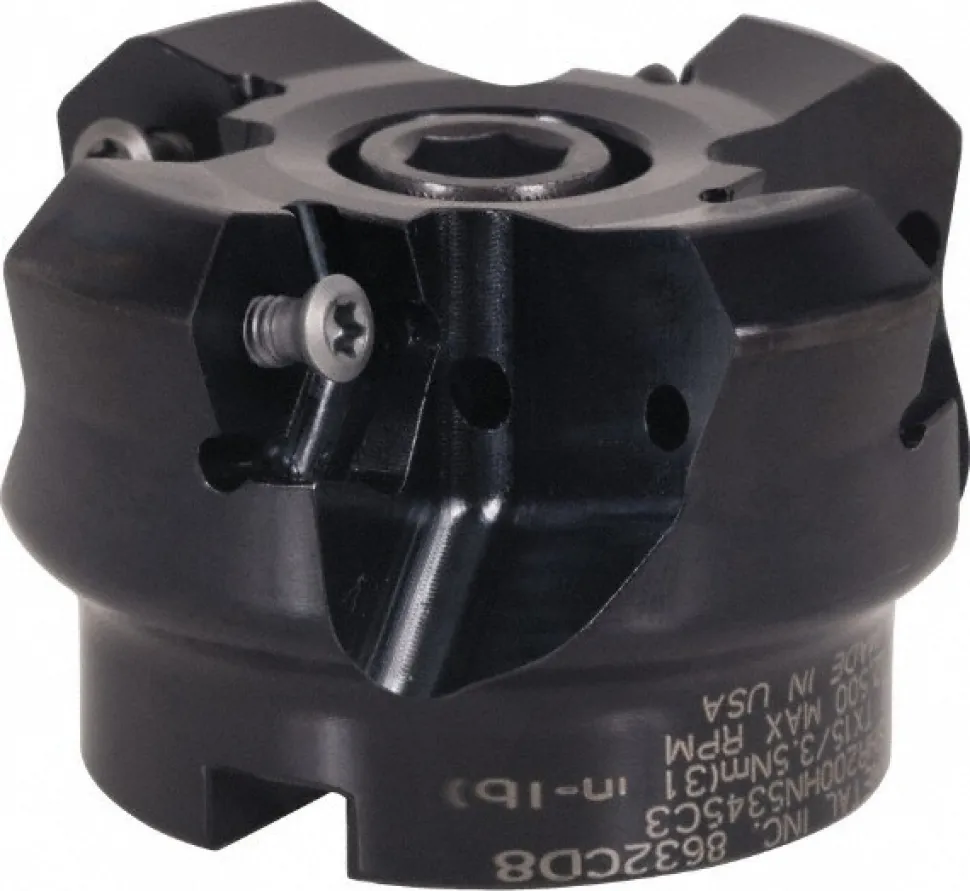

4″ Cut Dia, 1-1/4″ Arbor Hole, 4.5mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill
Original price was: 1 356,00 $.124,89 $Current price is: 124,89 $.
Specifications
| Minimum Cutting Diameter (Decimal Inch): 4.0000 | Minimum Cutting Diameter (Inch): 4 |
| Maximum Cutting Diameter (Decimal Inch): 4.4320 | Maximum Depth of Cut (mm): 4.50 |
| Maximum Depth of Cut (Decimal Inch): 0.1770 | Arbor Hole Diameter (mm): 31.75 |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | Arbor Hole Diameter (Inch): 1-1/4 |
| Compatible Insert Size Code: HNGJ 535ANENLD | Cutter Style: KSHR |
| Cutting Direction: Right Hand | Insert Holding Method: Screw |
| Series: Dodeka Series | Hub Diameter (Decimal Inch): 2.7220 |
| Overall Height (Inch): 1-3/4 | Overall Height (Decimal Inch): 1.7500 |
| Maximum Body Diameter (Decimal Inch): 4.2320 | Pitch Type: Extra Coarse |
| Maximum RPM: 6300 | Number Of Cutter Inserts: 6 |
| Coolant Through: Yes | Number Of Flutes: 6 |
| UNSPSC Code: 23291600 | Country of Origin: Bulgaria |
| Minimum Cutting Diameter (Decimal Inch): 4.0000 | |
| Minimum Cutting Diameter (Inch): 4 | |
| Maximum Cutting Diameter (Decimal Inch): 4.4320 | |
| Maximum Depth of Cut (mm): 4.50 | |
| Maximum Depth of Cut (Decimal Inch): 0.1770 | |
| Arbor Hole Diameter (mm): 31.75 | |
| Arbor Hole Diameter (Decimal Inch): 1.2500 | |
| Arbor Hole Diameter (Inch): 1-1/4 | |
| Compatible Insert Size Code: HNGJ 535ANENLD | |
| Cutter Style: KSHR | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: Dodeka Series | |
| Hub Diameter (Decimal Inch): 2.7220 | |
| Overall Height (Inch): 1-3/4 | |
| Overall Height (Decimal Inch): 1.7500 | |
| Maximum Body Diameter (Decimal Inch): 4.2320 | |
| Pitch Type: Extra Coarse | |
| Maximum RPM: 6300 | |
| Number Of Cutter Inserts: 6 | |
| Coolant Through: Yes | |
| Number Of Flutes: 6 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: Bulgaria |
| MSC# | 77462000 |
| Mfr# | 3747126 |
| Big Book# | 715 |
