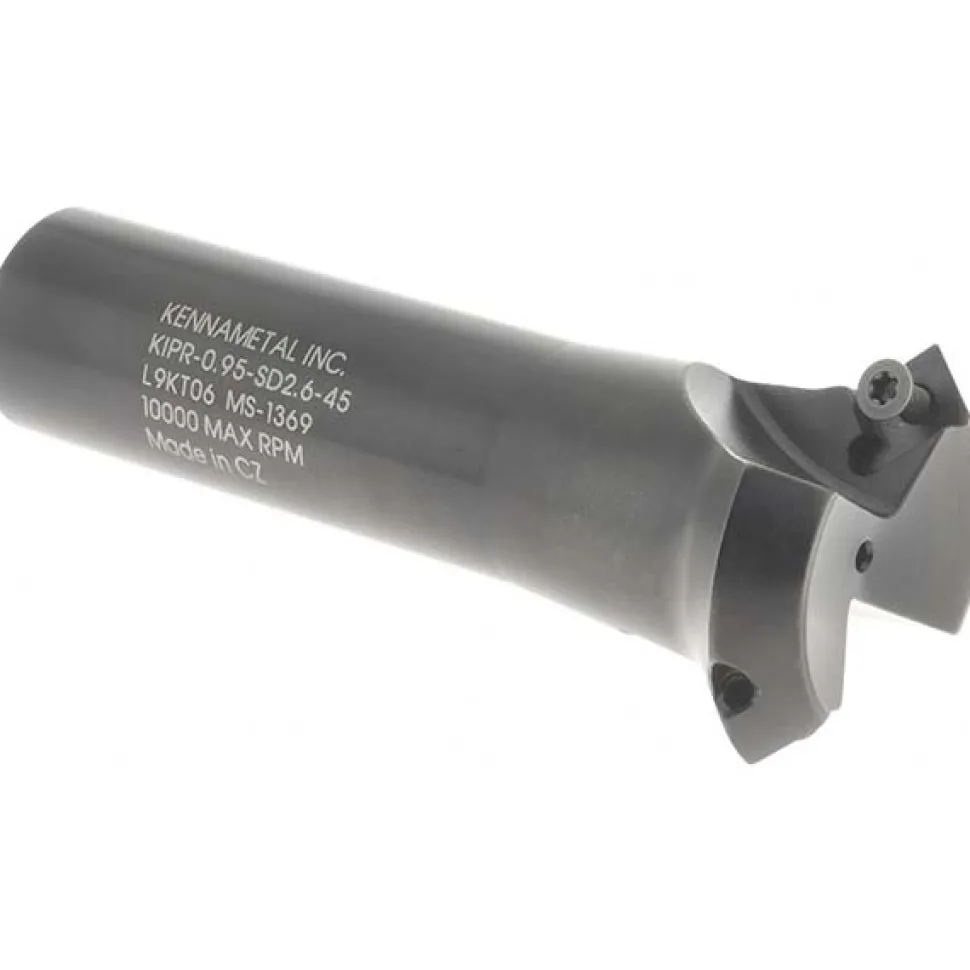

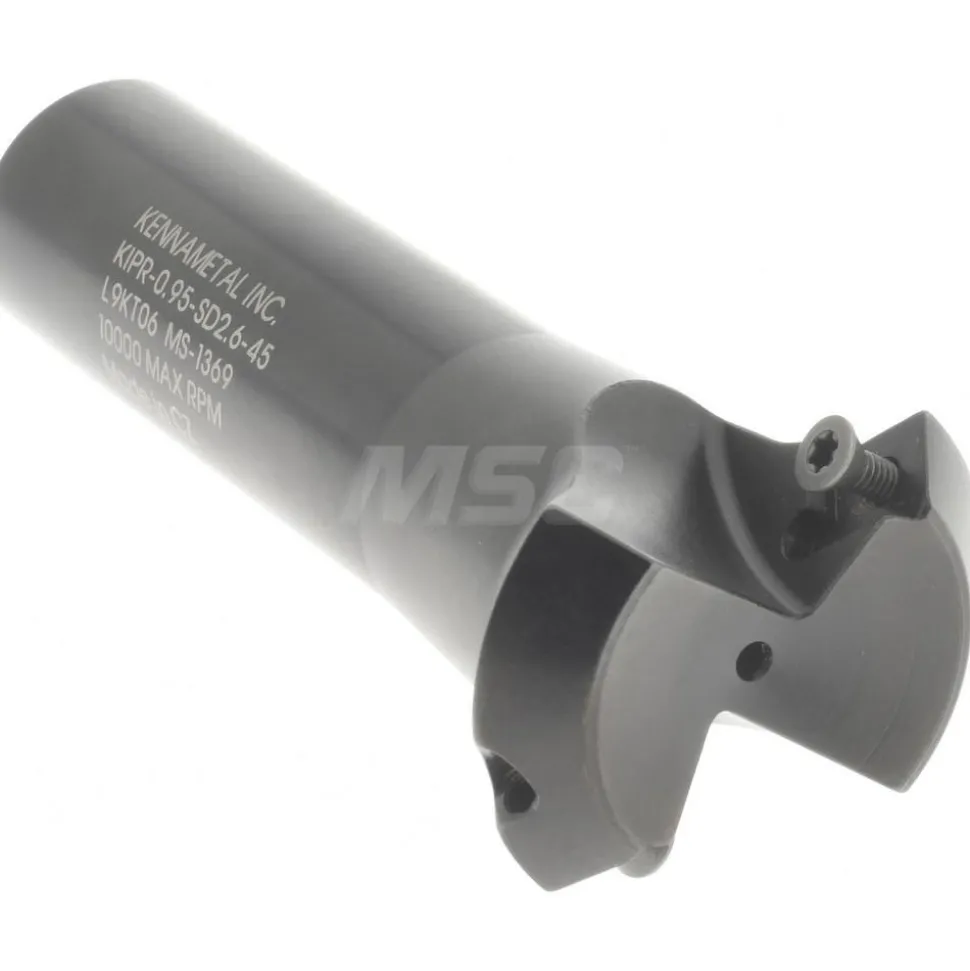

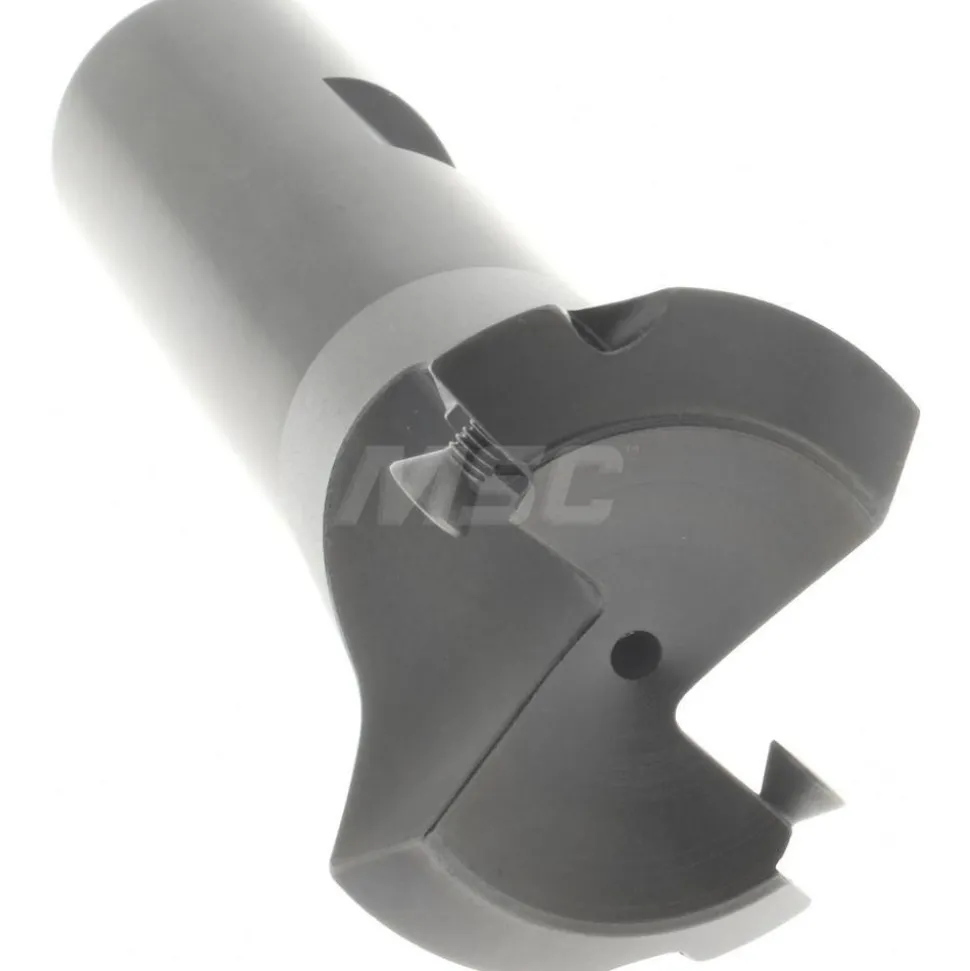

45° Lead Angle, 0.95" to 1.387" Cut Dia, Indexable & Chamfer End Mill

45° Lead Angle, 0.95″ to 1.387″ Cut Dia, Indexable & Chamfer End Mill

134,89 $

SKU: SKU1szBTSIUaO Categories: Indexable Cutting Tools, Indexable Milling, Shop All Products Tag: Kennametal Brand: Kennametal

Description
Reviews (0)

Specifications

Minimum Cutting Diameter (Decimal Inch): 0.9500	Maximum Cutting Diameter (Decimal Inch): 1.3870
Maximum Depth of Cut (Decimal Inch): 0.1950	Maximum Depth of Cut (mm): 4.96
Shank Diameter (mm): 19.05	Number Of Cutter Inserts: 2
Insert Style: SDEB 26152	Insert Holding Method: Screw
Overall Length (Decimal Inch): 3.2500	Toolholder Style: KIPR
Maximum RPM: 10000	Head Length (Decimal Inch): 1.2200
Shank Length (Decimal Inch): 2.0299	Shank Length (mm): 51.56
UNSPSC Code: 23291600	Number Of Flutes: 2
Coolant Through: No	Shank Type: Weldon Flat
Country of Origin: Czechia
Minimum Cutting Diameter (Decimal Inch): 0.9500
Maximum Cutting Diameter (Decimal Inch): 1.3870
Maximum Depth of Cut (Decimal Inch): 0.1950
Maximum Depth of Cut (mm): 4.96
Shank Diameter (mm): 19.05
Number Of Cutter Inserts: 2
Insert Style: SDEB 26152
Insert Holding Method: Screw
Overall Length (Decimal Inch): 3.2500
Toolholder Style: KIPR
Maximum RPM: 10000
Head Length (Decimal Inch): 1.2200
Shank Length (Decimal Inch): 2.0299
Shank Length (mm): 51.56
UNSPSC Code: 23291600
Number Of Flutes: 2
Coolant Through: No
Shank Type: Weldon Flat
Country of Origin: Czechia
