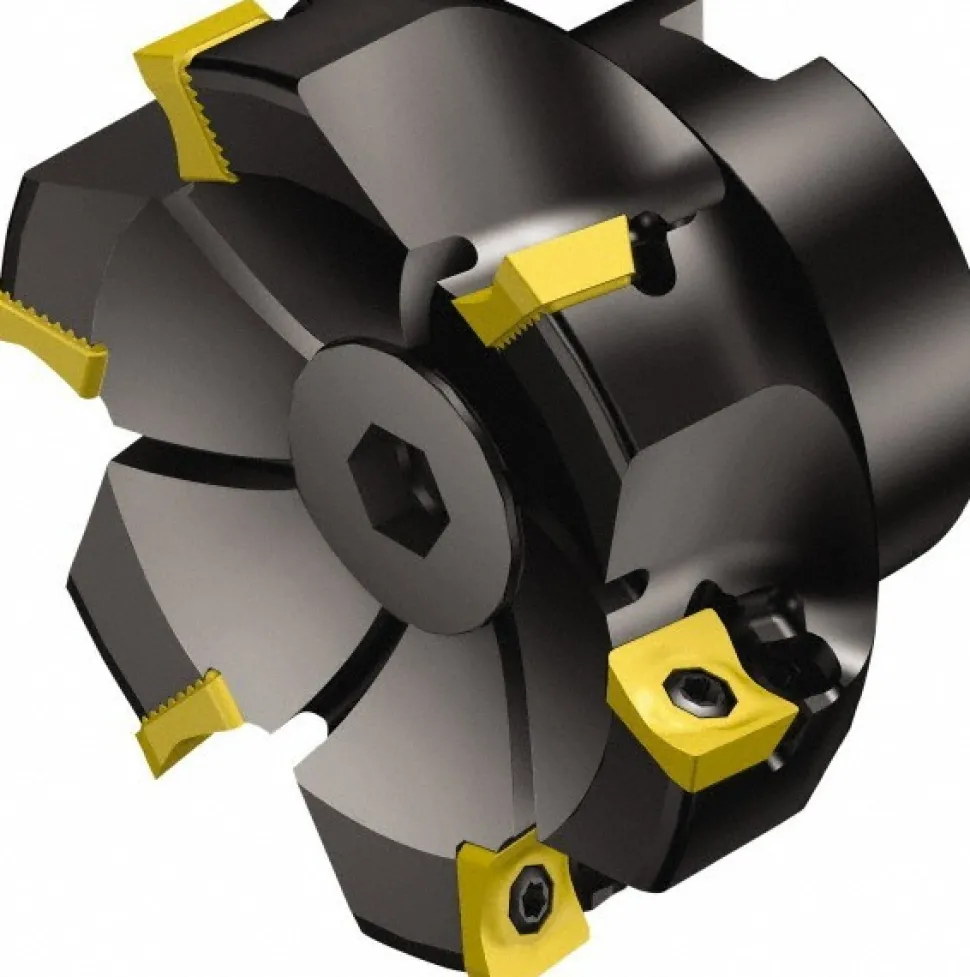

5″ Cut Dia, 1-1/2″ Arbor Hole Dia, 11mm Max Depth, Indexable Square-Shoulder Face Mill
Original price was: 2 838,00 $.120,99 $Current price is: 120,99 $.

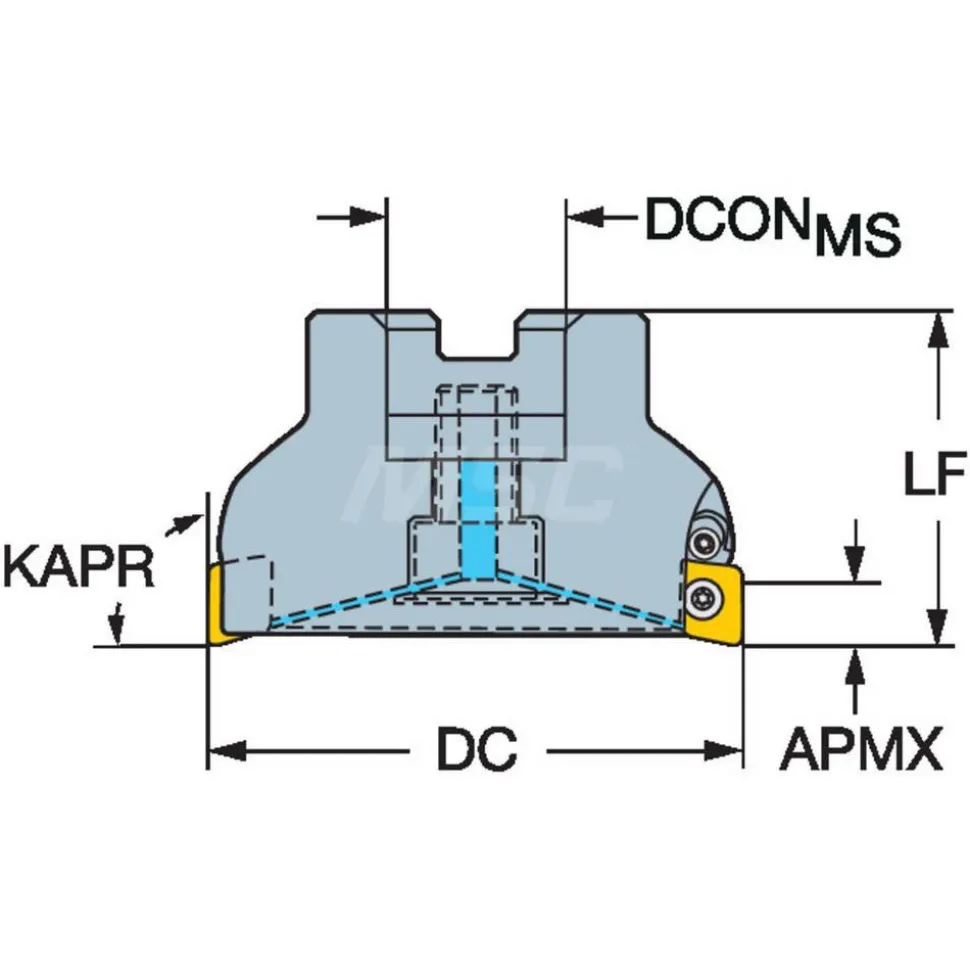

Specifications
| Maximum Cutting Diameter (Inch): 5 | Maximum Cutting Diameter (Decimal Inch): 5.0000 |
| Maximum Cutting Diameter (mm): 127.00 | Maximum Depth of Cut (mm): 11.00 |
| Maximum Depth of Cut (Decimal Inch): 0.4331 | Arbor Hole Diameter (Inch): 1-1/2 |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | Compatible Insert Size Code: R590-1105.. |
| Cutter Style: RA590 | Cutting Direction: Right Hand |
| Insert Holding Method: Screw; Clamp | Lead Angle: 90 |
| Rake: Positive | Series: CoroMill Century |
| Maximum Body Diameter (Decimal Inch): 4.9685 | Overall Height (mm): 63.00 |
| Overall Height (Decimal Inch): 2.4803 | Hub Diameter (mm): 38.10 |
| Hub Diameter (Inch): 1-1/2 | Pitch Type: Close |
| Cutting Edge Length (Decimal Inch): 0.4331 | Complete Insert Compatibility: R590-1105.. |
| UNSPSC Code: 27112803 | Toolholder Material: Steel |
| Coolant Through: Yes | Number Of Cutter Inserts: 8 |
| Number Of Flutes: 8 | Country of Origin: Sweden |
| Maximum Cutting Diameter (Inch): 5 | |
| Maximum Cutting Diameter (Decimal Inch): 5.0000 | |
| Maximum Cutting Diameter (mm): 127.00 | |
| Maximum Depth of Cut (mm): 11.00 | |
| Maximum Depth of Cut (Decimal Inch): 0.4331 | |
| Arbor Hole Diameter (Inch): 1-1/2 | |
| Arbor Hole Diameter (Decimal Inch): 1.5000 | |
| Compatible Insert Size Code: R590-1105.. | |
| Cutter Style: RA590 | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw; Clamp | |
| Lead Angle: 90 | |
| Rake: Positive | |
| Series: CoroMill Century | |
| Maximum Body Diameter (Decimal Inch): 4.9685 | |
| Overall Height (mm): 63.00 | |
| Overall Height (Decimal Inch): 2.4803 | |
| Hub Diameter (mm): 38.10 | |
| Hub Diameter (Inch): 1-1/2 | |
| Pitch Type: Close | |
| Cutting Edge Length (Decimal Inch): 0.4331 | |
| Complete Insert Compatibility: R590-1105.. | |
| UNSPSC Code: 27112803 | |
| Toolholder Material: Steel | |
| Coolant Through: Yes | |
| Number Of Cutter Inserts: 8 | |
| Number Of Flutes: 8 | |
| Country of Origin: Sweden |
| MSC# | 65733958 |
| Mfr# | 5740381 |
