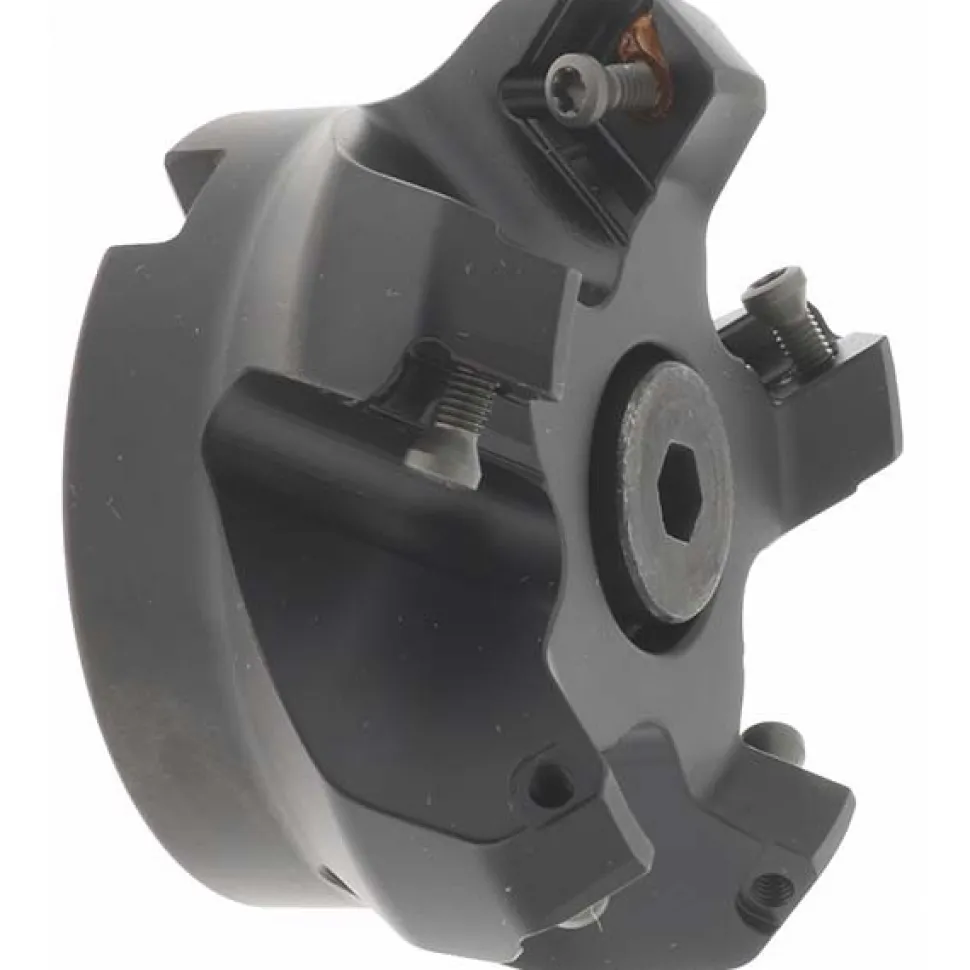

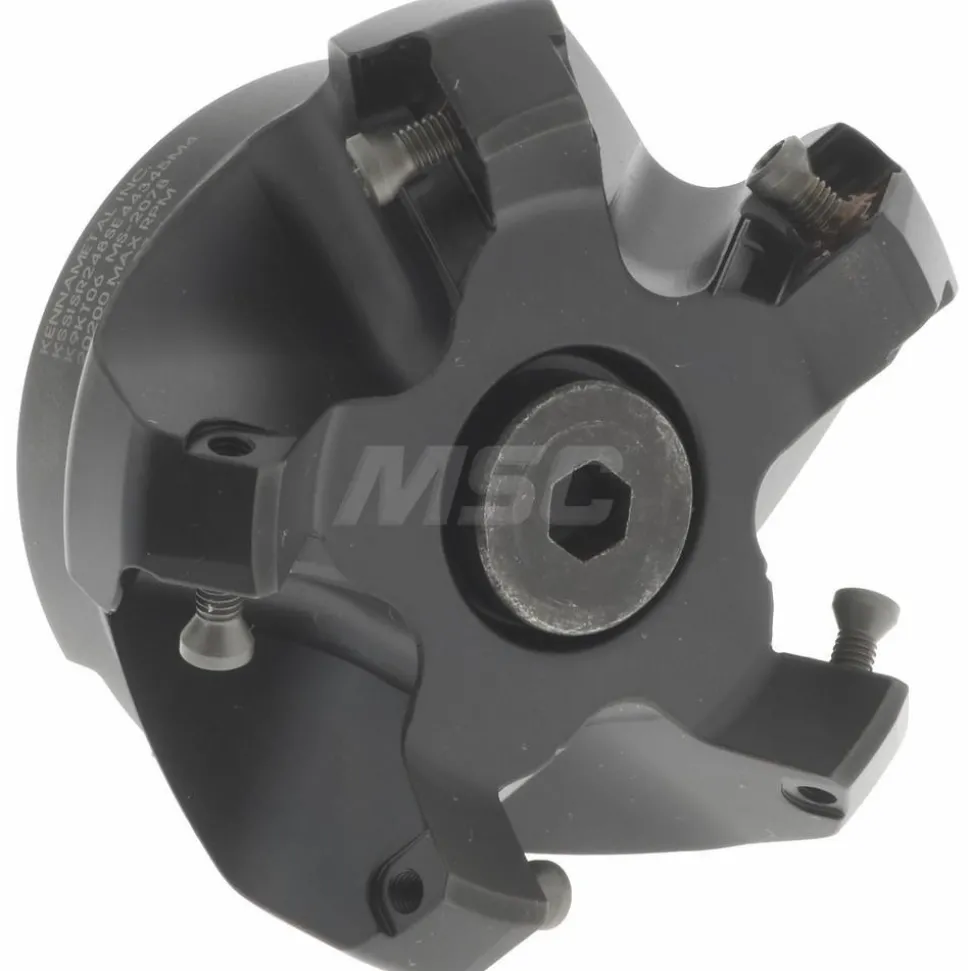

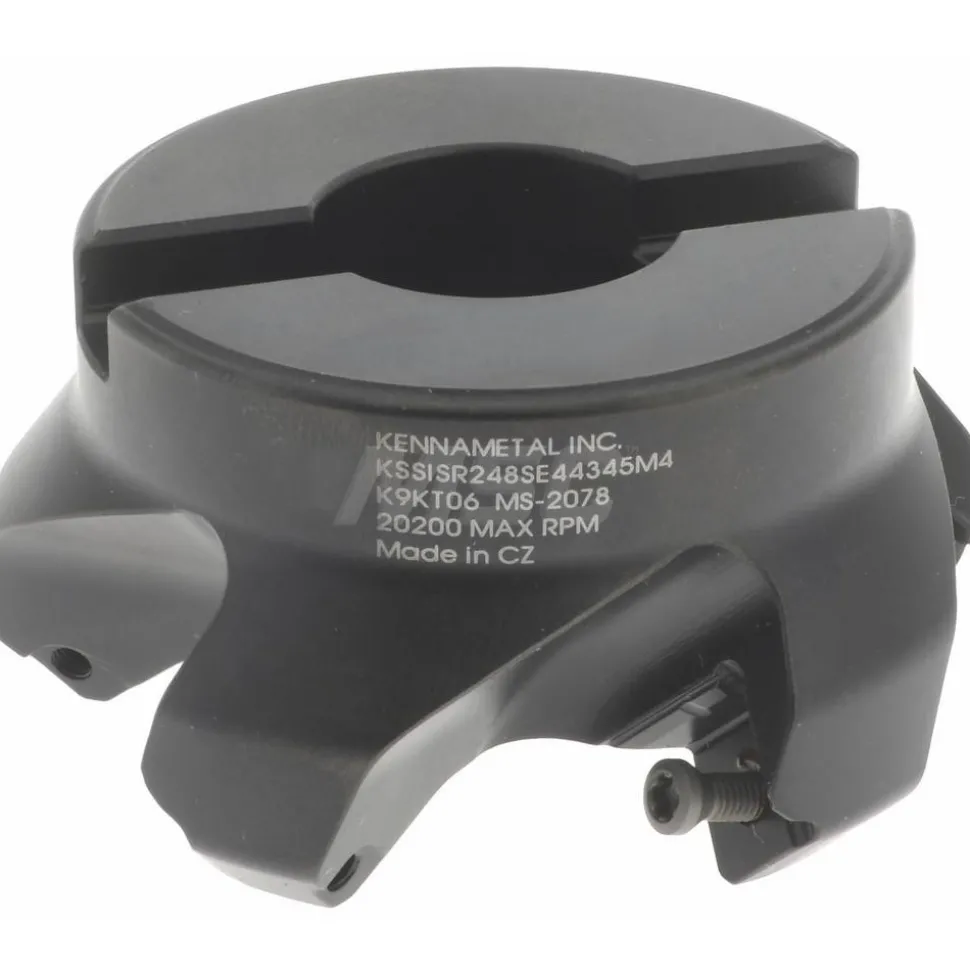

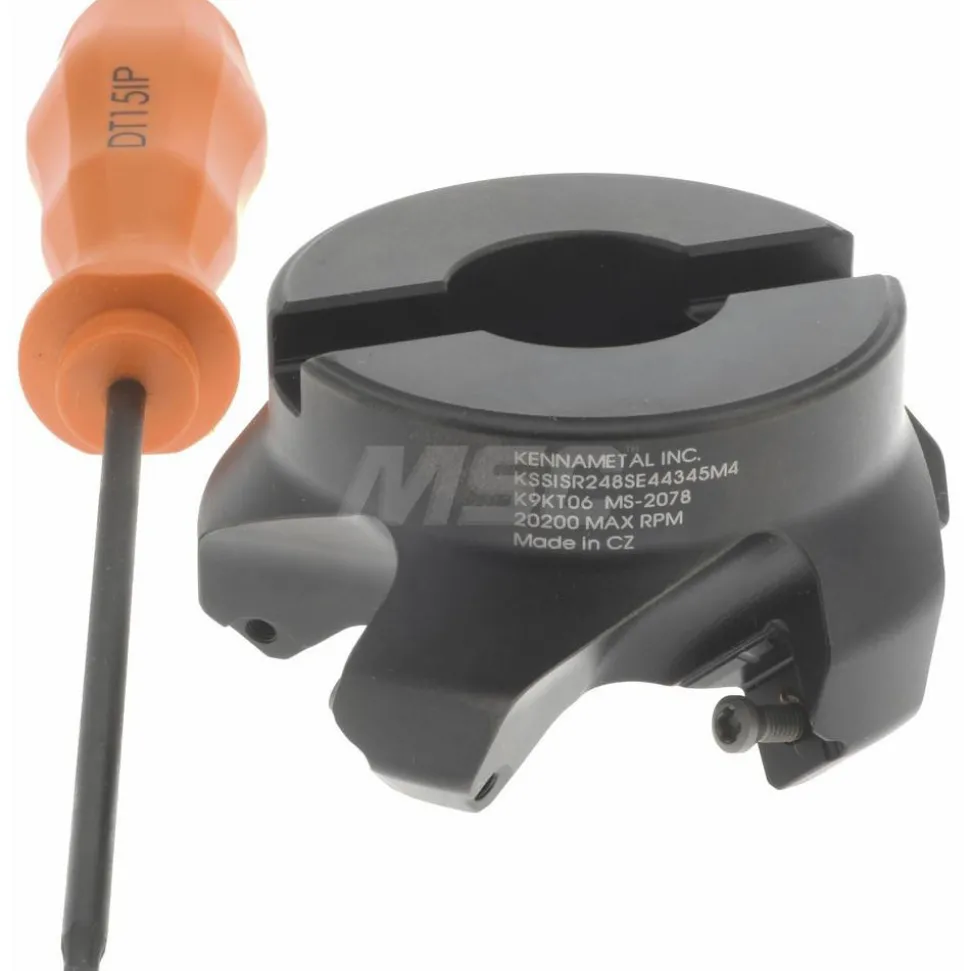

62.99mm Cut Dia, 1″ Arbor Hole, 6.6mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill
122,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 2.4800 | Maximum Cutting Diameter (Decimal Inch): 3.0240 |
| Maximum Depth of Cut (mm): 6.60 | Maximum Depth of Cut (Decimal Inch): 0.2600 |
| Arbor Hole Diameter (mm): 25.40 | Arbor Hole Diameter (Decimal Inch): 1.0000 |
| Arbor Hole Diameter (Inch): 1 | Compatible Insert Size Code: SEKT 1404 |
| Cutter Style: KSSISR | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Series: KSSM |
| Hub Diameter (mm): 55.63 | Hub Diameter (Decimal Inch): 2.1902 |
| Keyway Width (Decimal Inch): 0.3900 | Overall Height (Decimal Inch): 1.5750 |
| Maximum Body Diameter (Decimal Inch): 3.0240 | Pitch Type: Medium |
| Maximum RPM: 20200 | Number Of Cutter Inserts: 5 |
| Coolant Through: No | Number Of Flutes: 5 |
| UNSPSC Code: 23291600 | Country of Origin: India |
| Minimum Cutting Diameter (Decimal Inch): 2.4800 | |
| Maximum Cutting Diameter (Decimal Inch): 3.0240 | |
| Maximum Depth of Cut (mm): 6.60 | |
| Maximum Depth of Cut (Decimal Inch): 0.2600 | |
| Arbor Hole Diameter (mm): 25.40 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Arbor Hole Diameter (Inch): 1 | |
| Compatible Insert Size Code: SEKT 1404 | |
| Cutter Style: KSSISR | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Series: KSSM | |
| Hub Diameter (mm): 55.63 | |
| Hub Diameter (Decimal Inch): 2.1902 | |
| Keyway Width (Decimal Inch): 0.3900 | |
| Overall Height (Decimal Inch): 1.5750 | |
| Maximum Body Diameter (Decimal Inch): 3.0240 | |
| Pitch Type: Medium | |
| Maximum RPM: 20200 | |
| Number Of Cutter Inserts: 5 | |
| Coolant Through: No | |
| Number Of Flutes: 5 | |
| UNSPSC Code: 23291600 | |
| Country of Origin: India |
| MSC# | 01230374 |
| Mfr# | 1817869 |
| Big Book# | 714 |
