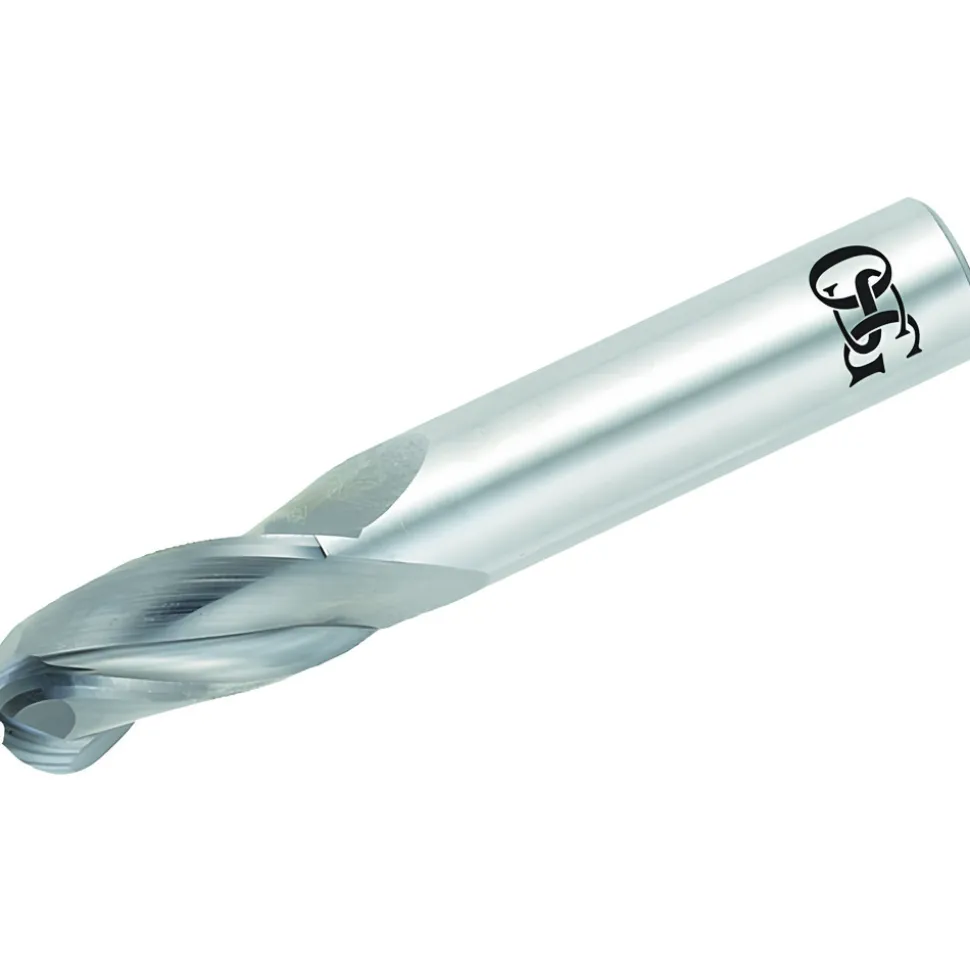

Ball End Mill: 3/32" Dia, 5/16" LOC, 4 Flute, Solid Carbide

Ball End Mill: 3/32″ Dia, 5/16″ LOC, 4 Flute, Solid Carbide

Name: Ball End Mill: 3/32" Dia, 5/16" LOC, 4 Flute, Solid Carbide - Industrial Tool
Price: 13.99 USD
Availability: InStock

13,99 $

Shop Ball End Mill: 3/32″ Dia, 5/16″ LOC, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products

Categories: End Mills, Milling, Shop All Products Tag: OSG Brand: OSG

Description
Reviews (0)

Specifications

Mill Diameter (Decimal Inch): 0.0938	Mill Diameter (Inch): 3/32
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.3125	Length of Cut (Inch): 5/16
Shank Diameter (Decimal Inch): 0.1200	Shank Diameter (Inch): 1/8
Overall Length (Inch): 1-1/2	Overall Length (Decimal Inch): 1.5000
Single Or Double End: Single	Coating/Finish Family: TiAlN
Centercutting: Yes	Cutting Direction: Right Hand
Flute Direction: Right Hand	Extended Reach: No
Coolant Through: No	Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel; Hardened Materials	Primary Workpiece Material Code: P; H; K; M; N
Secondary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials	Secondary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: TiAlN	Variable Helix: No
Variable Index: No	Chipbreaker: No
Flute Type: Spiral	Shank Type: Straight-Cylindrical
Material Grade: TiAlN	Length Type: Standard
Coating Classification: PVD	Helix Style: Medium
Nose Radius (Decimal Inch): 0.0469	Neck Length (Decimal Inch): 0.0000
Reach Length (Decimal Inch): 0.3125	Mill Diameter Tolerance: +0.0000/-0.0020 in
Series: 404BN	System Of Measurement: Fractional Inch
Additional Information: The Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing & Precision.	Manufacturers Catalog Number: 404-0938-BN11
Material Removal Type: Roughing & Finishing	UNSPSC Code: 27112803
Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.0938
Mill Diameter (Inch): 3/32
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.3125
Length of Cut (Inch): 5/16
Shank Diameter (Decimal Inch): 0.1200
Shank Diameter (Inch): 1/8
Overall Length (Inch): 1-1/2
Overall Length (Decimal Inch): 1.5000
Single Or Double End: Single
Coating/Finish Family: TiAlN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 30
Primary Workpiece Material: Aluminum & Non-Ferrous; Stainless Steel; Cast Iron; Steel; Hardened Materials
Primary Workpiece Material Code: P; H; K; M; N
Secondary Workpiece Material: Aluminum & Non-Ferrous; High-Temp Alloy; Stainless Steel; Cast Iron; Steel; Hardened Materials
Secondary Workpiece Material Code: P; S; H; K; M; N
Coating/Finish: TiAlN
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Shank Type: Straight-Cylindrical
Material Grade: TiAlN
Length Type: Standard
Coating Classification: PVD
Helix Style: Medium
Nose Radius (Decimal Inch): 0.0469
Neck Length (Decimal Inch): 0.0000
Reach Length (Decimal Inch): 0.3125
Mill Diameter Tolerance: +0.0000/-0.0020 in
Series: 404BN
System Of Measurement: Fractional Inch
Additional Information: The Standard Carbide End Mill Lineup Consists of a Variety of Different End Mill Designs, Made to OSG Quality Standards At a Value-Added Price Point That Is Friendly to Any Tooling Budget. An Economical Solution Without Sacrificing Consistent Tolerancing & Precision.
Manufacturers Catalog Number: 404-0938-BN11
Material Removal Type: Roughing & Finishing
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
