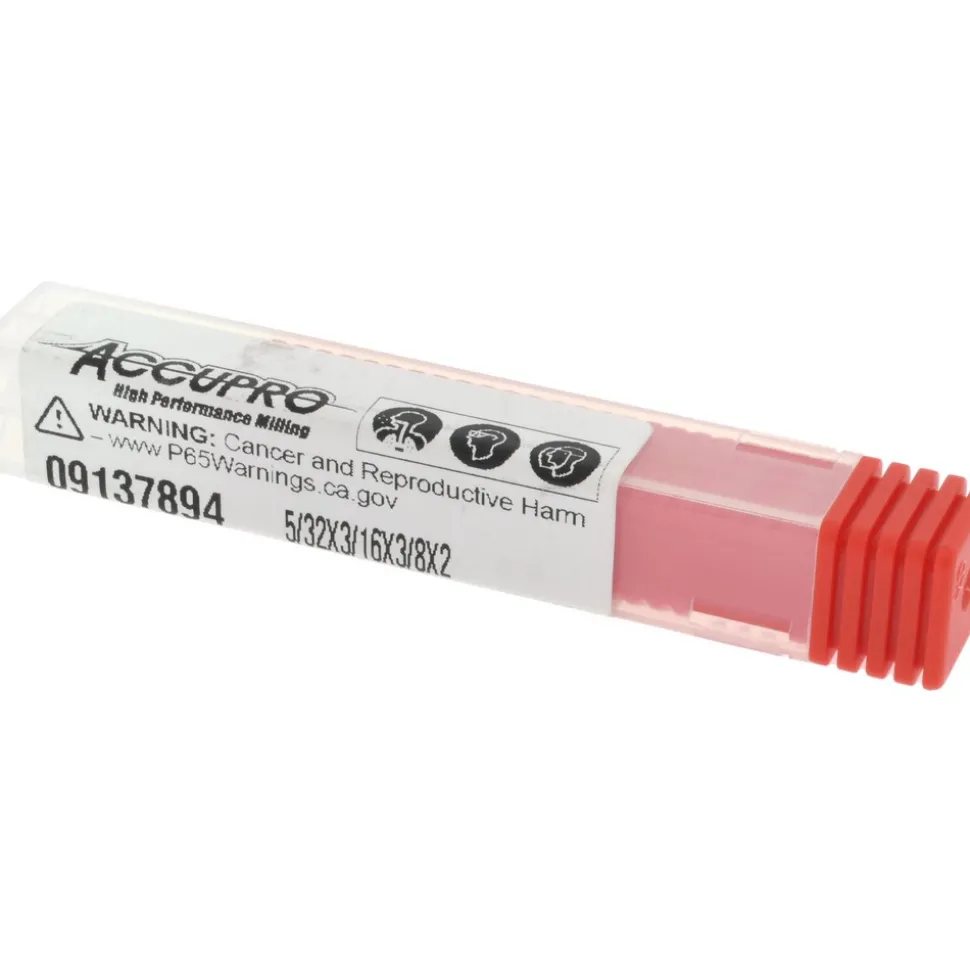

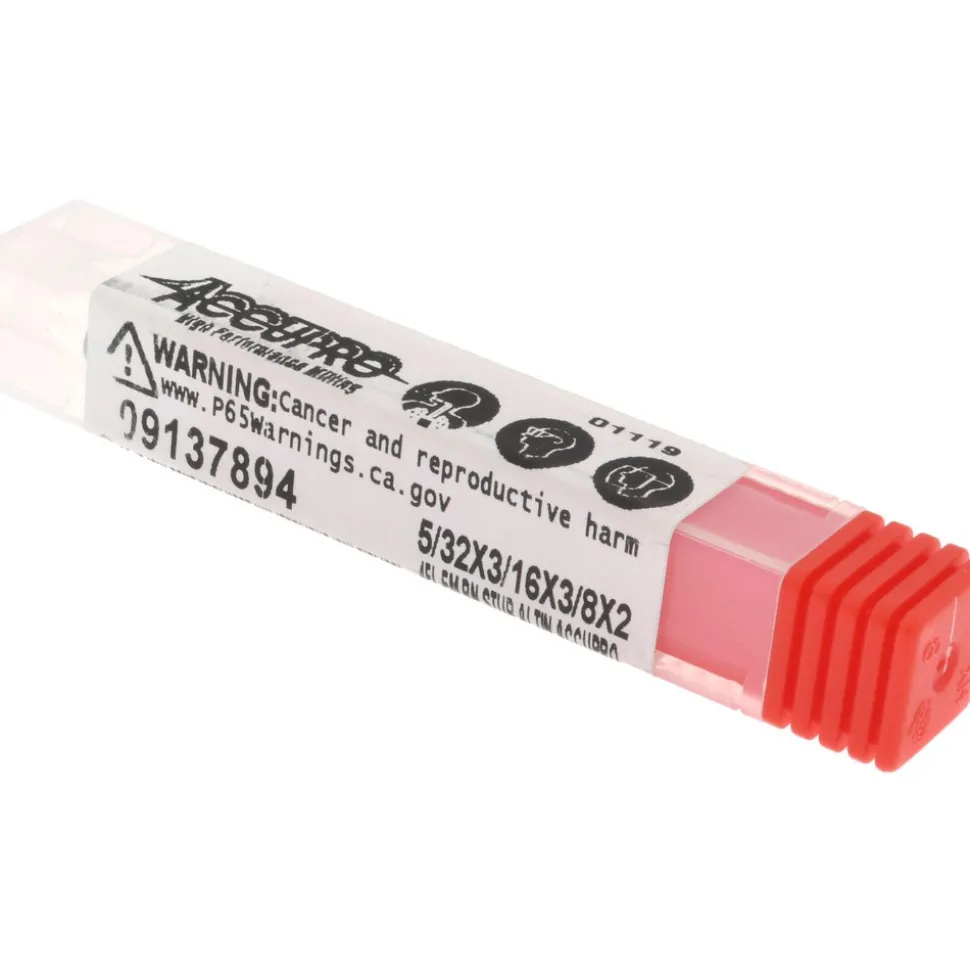

Ball End Mill: 5/32″ Dia, 3/8″ LOC, 4 Flute, Solid Carbide

Name: Ball End Mill: 5/32" Dia, 3/8" LOC, 4 Flute, Solid Carbide - Industrial Tool
Price: 13.89 USD
Availability: InStock

13,89 $

Shop Ball End Mill: 5/32″ Dia, 3/8″ LOC, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products

Specifications

Mill Diameter (Decimal Inch): 0.1563	Mill Diameter (Inch): 5/32
Number Of Flutes: 4	End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.3750	Length of Cut (Inch): 3/8
Shank Diameter (Inch): 3/16	Overall Length (Inch): 2
Overall Length (Decimal Inch): 2.0000	Single Or Double End: Single
Coating/Finish Family: AlTiN	Centercutting: Yes
Cutting Direction: Right Hand	Flute Direction: Right Hand
Extended Reach: No	Coolant Through: No
Helix Angle: 40	Coating/Finish: AlTiN
Variable Helix: No	Variable Index: No
Chipbreaker: No	Flute Type: Spiral
Material Grade: Micrograin	Length Type: Stub
Series: ABSC4-AT-CC-40H	System Of Measurement: Fractional Inch
UNSPSC Code: 27112803	Country of Origin: UNITED STATES
Mill Diameter (Decimal Inch): 0.1563
Mill Diameter (Inch): 5/32
Number Of Flutes: 4
End Mill Material: Solid Carbide
Length of Cut (Decimal Inch): 0.3750
Length of Cut (Inch): 3/8
Shank Diameter (Inch): 3/16
Overall Length (Inch): 2
Overall Length (Decimal Inch): 2.0000
Single Or Double End: Single
Coating/Finish Family: AlTiN
Centercutting: Yes
Cutting Direction: Right Hand
Flute Direction: Right Hand
Extended Reach: No
Coolant Through: No
Helix Angle: 40
Coating/Finish: AlTiN
Variable Helix: No
Variable Index: No
Chipbreaker: No
Flute Type: Spiral
Material Grade: Micrograin
Length Type: Stub
Series: ABSC4-AT-CC-40H
System Of Measurement: Fractional Inch
UNSPSC Code: 27112803
Country of Origin: UNITED STATES
