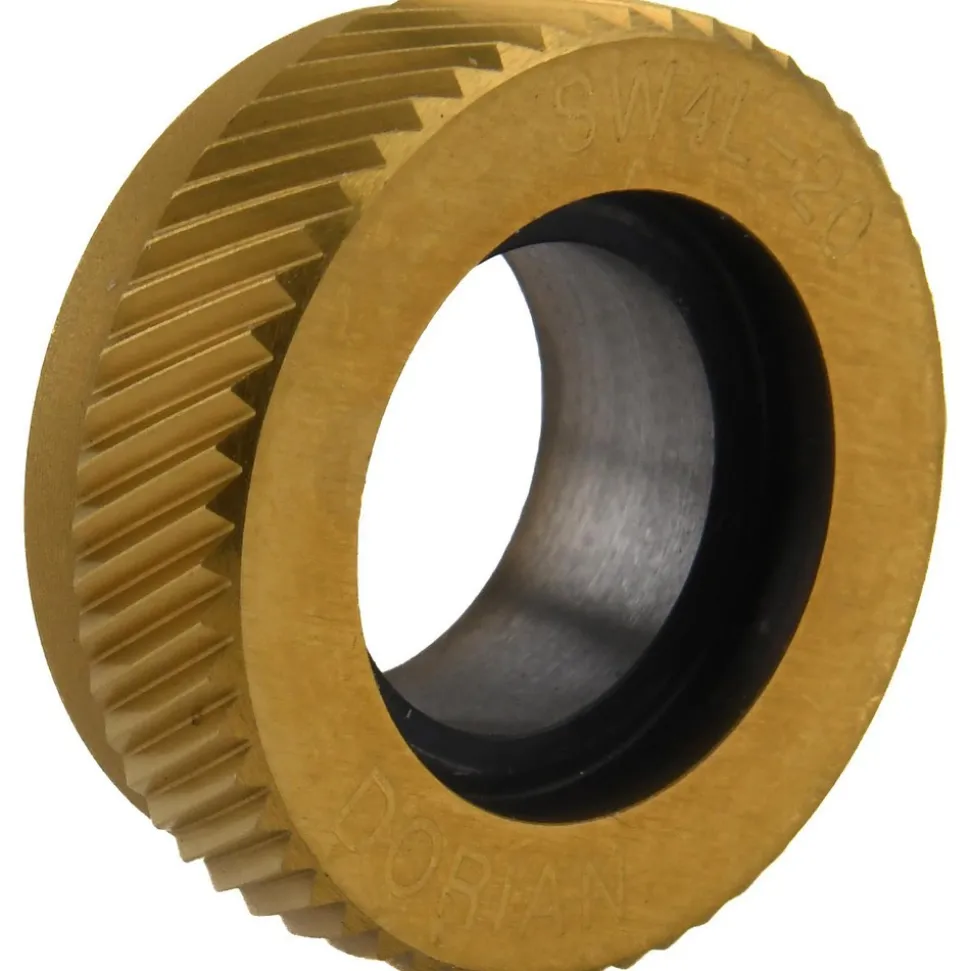

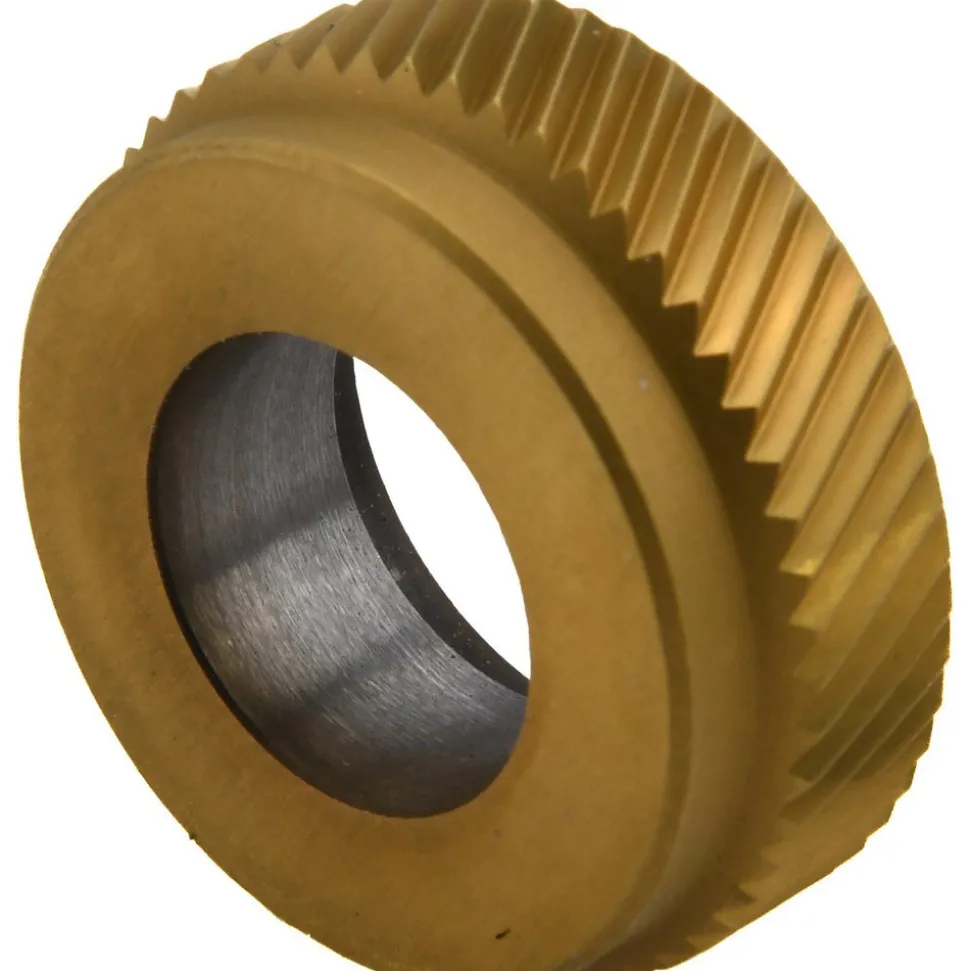

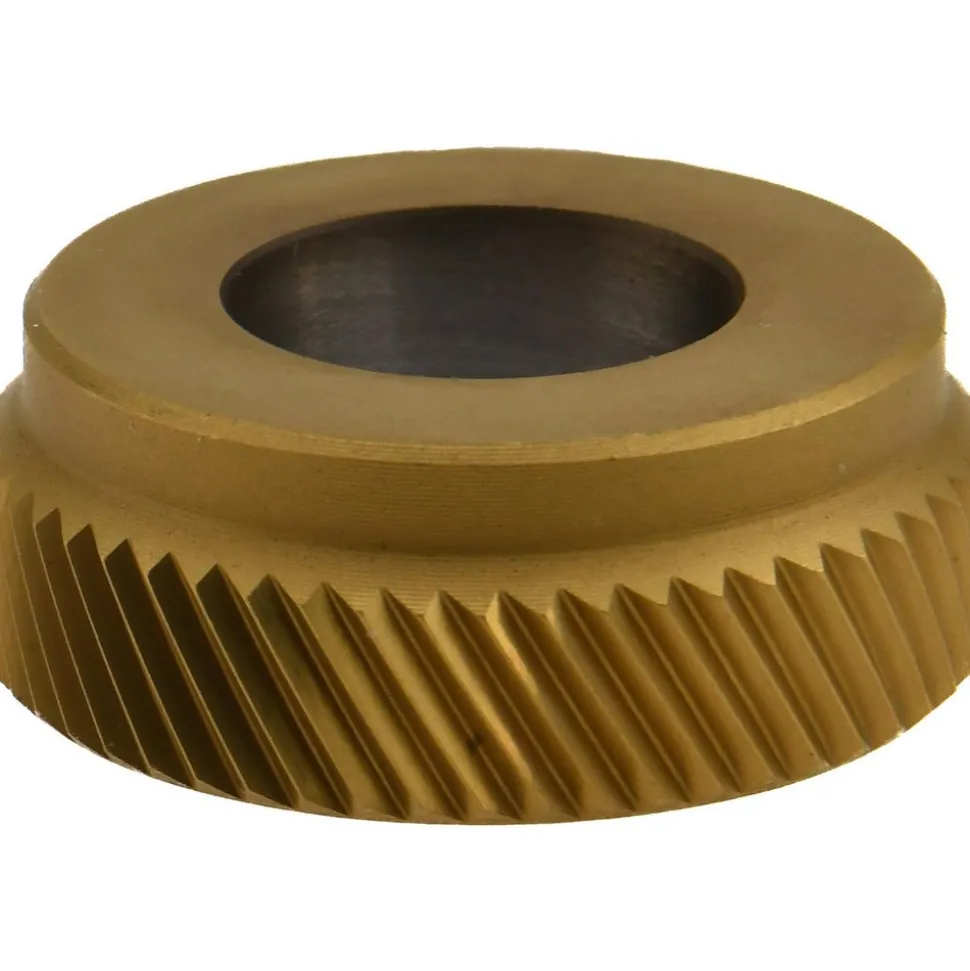

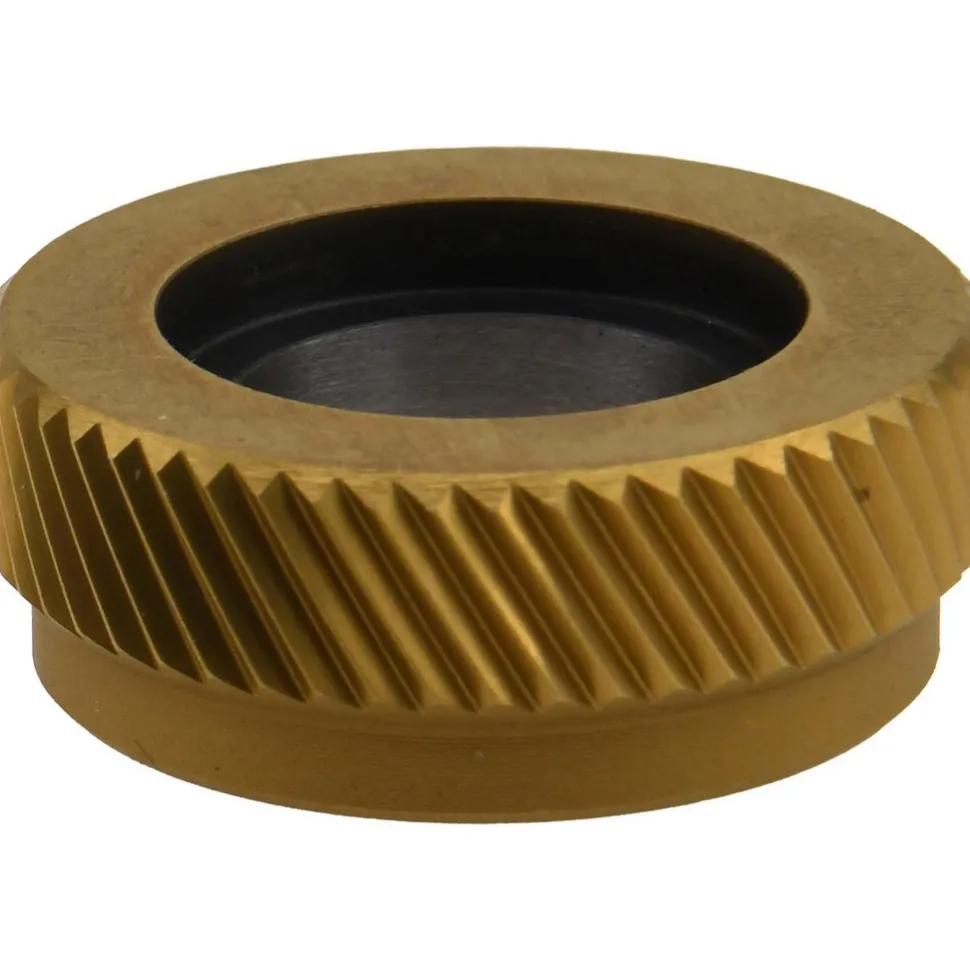

Beveled Face Knurl Wheel: 1″ Dia, 90 ° Tooth Angle, 20 TPI, Diagonal, High Speed Steel
Original price was: 74,00 $.52,89 $Current price is: 52,89 $.
Specifications
| Knurl Shape: Beveled Face | Tooth Pattern: Diagonal |
| Pattern: Left-Hand Diagonal | Form Or Cut Type: Form |
| Material: High-Speed Steel | Knurl Diameter (mm): 25.40 |
| Knurl Diameter (Decimal Inch): 1.0000 | Knurl Diameter (Inch): 1 |
| Face Width (mm): 6.35 | Face Width (Inch): 1/4 |
| Face Width (Decimal Inch): 0.2500 | Hole Diameter (Inch): 1/2 |
| Hole Diameter (Decimal Inch): 0.5000 | Hole Diameter (mm): 12.70 |
| Pitch (TPI): 20 | Pitch System: Circular |
| Pitch (mm): 1.20 | Included Tooth Angle: 90 |
| Finish: Titanium Nitride | Helix Angle: 30.00 |
| Overall Width (Inch): 3/8 | Pitch Type: Medium |
| Knurl Series: SW4 | Number Of Teeth: 54 |
| UNSPSC Code: 23242118 | Country of Origin: UNITED STATES |
| Knurl Shape: Beveled Face | |
| Tooth Pattern: Diagonal | |
| Pattern: Left-Hand Diagonal | |
| Form Or Cut Type: Form | |
| Material: High-Speed Steel | |
| Knurl Diameter (mm): 25.40 | |
| Knurl Diameter (Decimal Inch): 1.0000 | |
| Knurl Diameter (Inch): 1 | |
| Face Width (mm): 6.35 | |
| Face Width (Inch): 1/4 | |
| Face Width (Decimal Inch): 0.2500 | |
| Hole Diameter (Inch): 1/2 | |
| Hole Diameter (Decimal Inch): 0.5000 | |
| Hole Diameter (mm): 12.70 | |
| Pitch (TPI): 20 | |
| Pitch System: Circular | |
| Pitch (mm): 1.20 | |
| Included Tooth Angle: 90 | |
| Finish: Titanium Nitride | |
| Helix Angle: 30.00 | |
| Overall Width (Inch): 3/8 | |
| Pitch Type: Medium | |
| Knurl Series: SW4 | |
| Number Of Teeth: 54 | |
| UNSPSC Code: 23242118 | |
| Country of Origin: UNITED STATES |
| MSC# | 07076151 |
| Mfr# | 73310128140 |
