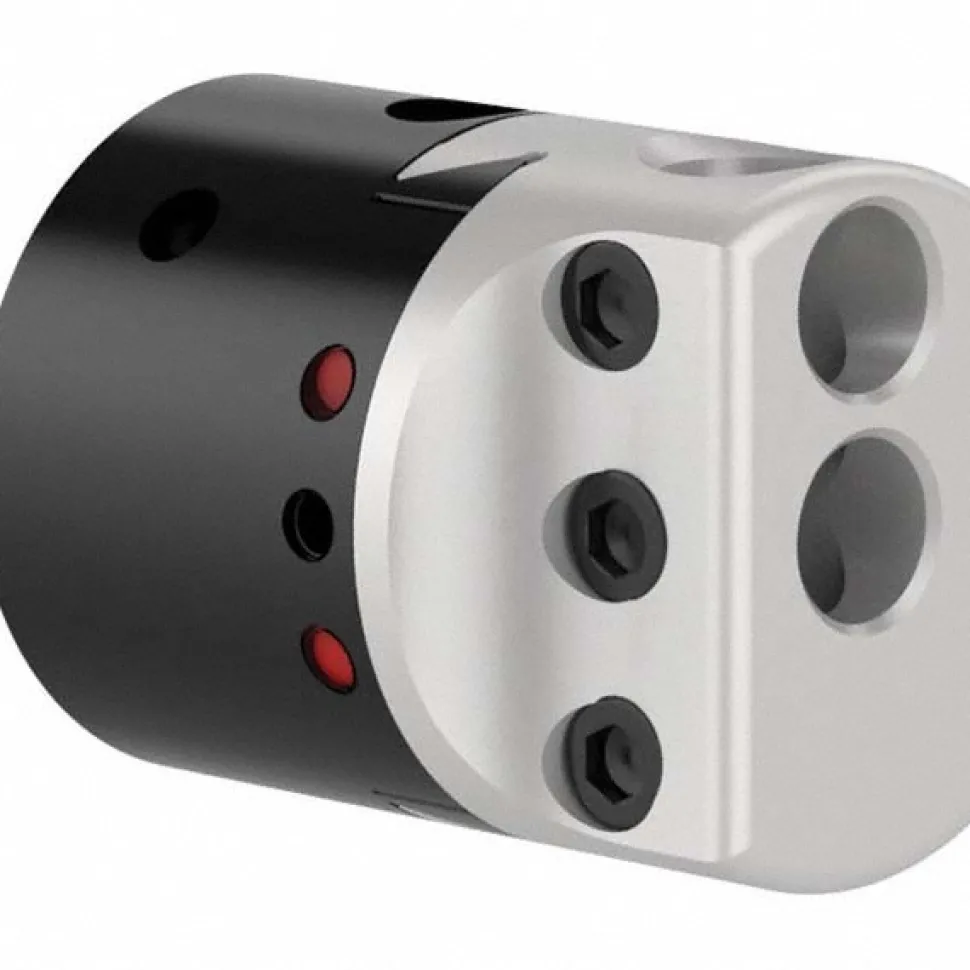

Boring Head: 3″ Body Dia, 3/4″ Hole Dia, Manual

124,99 $

Specifications

Head Type: Fine	Actuation Type: Manual
Boring Bar Hole Diameter (Inch): 3/4	Minimum Bore Diameter (Inch): 1/4
Minimum Bore Diameter (Decimal Inch): 0.2500	Maximum Bore Diameter (Inch): 11
Maximum Bore Diameter (Decimal Inch): 11.0000	Body Diameter (Inch): 3
Body Diameter (Decimal Inch): 3.0000	Mount Type: Threaded
Shank Type: Modular Connection	Overall Length (Decimal Inch): 3.4100
Thread Size (Inch): 1-1/2-18	Diameter Direct Reading: 0.001000 in
Series: CB	Machine Compatibility: CNC; Manual
UNSPSC Code: 27112800	Country of Origin: UNITED STATES
Head Type: Fine
Actuation Type: Manual
Boring Bar Hole Diameter (Inch): 3/4
Minimum Bore Diameter (Inch): 1/4
Minimum Bore Diameter (Decimal Inch): 0.2500
Maximum Bore Diameter (Inch): 11
Maximum Bore Diameter (Decimal Inch): 11.0000
Body Diameter (Inch): 3
Body Diameter (Decimal Inch): 3.0000
Mount Type: Threaded
Shank Type: Modular Connection
Overall Length (Decimal Inch): 3.4100
Thread Size (Inch): 1-1/2-18
Diameter Direct Reading: 0.001000 in
Series: CB
Machine Compatibility: CNC; Manual
UNSPSC Code: 27112800
Country of Origin: UNITED STATES
