Sale!

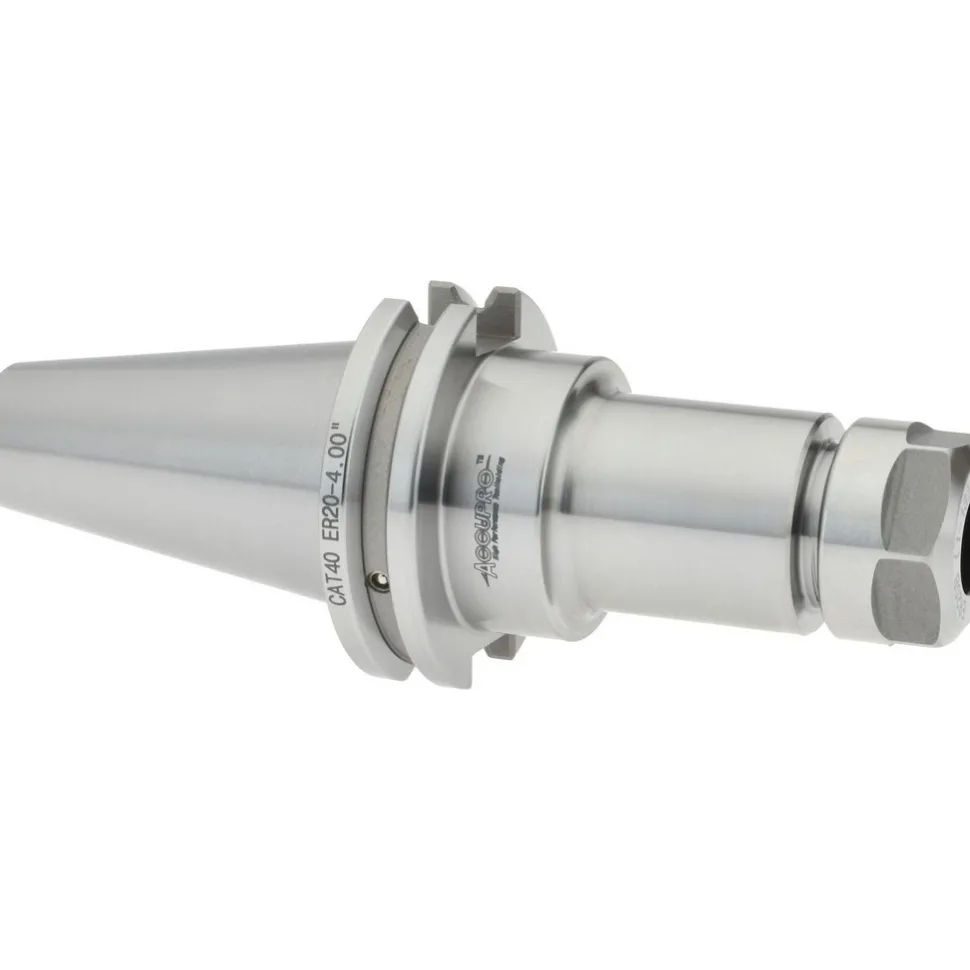

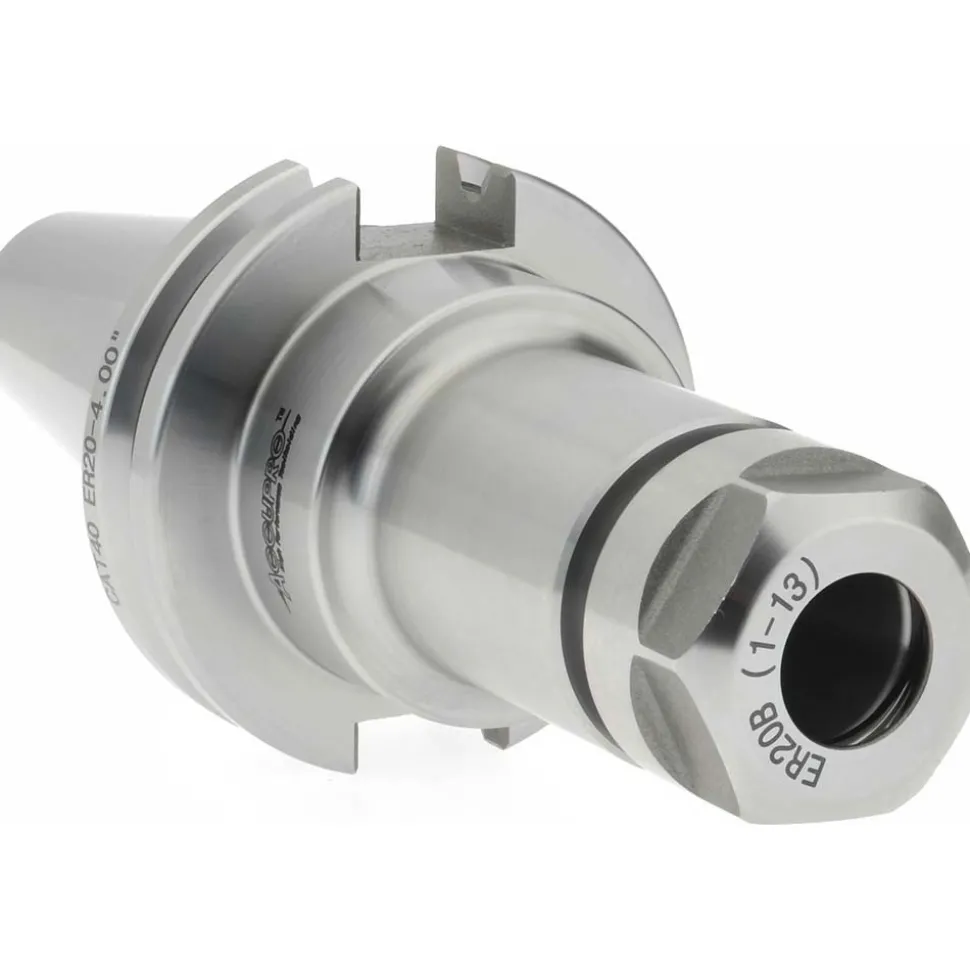

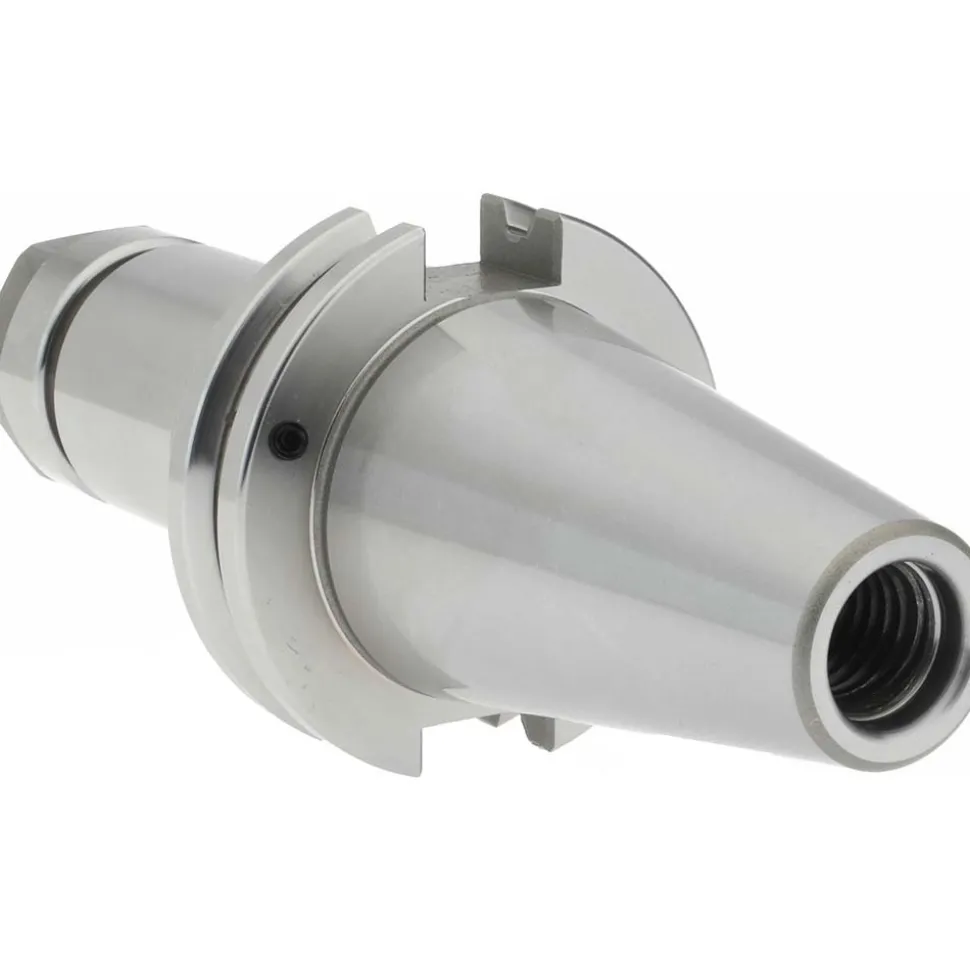

Collet Chuck: 0.0390 to 0.5110″ Capacity, ER20 Collet, Taper Shank
Original price was: 156,00 $.101,99 $Current price is: 101,99 $.
Specifications
| Collet System: ER | Collet Series: ER20 |
| Shank Type: Taper | Taper Size: CAT40 |
| Projection (Decimal Inch): 4.0000 in | Projection (Inch): 4 |
| Through Coolant: Yes | Minimum Collet Capacity (Decimal Inch): 0.0390 |
| Maximum Collet Capacity (Decimal Inch): 0.5110 | TIR (Decimal Inch): 0.000200 |
| Coolant Type: Through-Spindle & DIN Flange | Collet Nut Diameter (Decimal Inch): 1.3800 |
| UNSPSC Code: 27112808 | Product Service Code: 5136 |
| Balanced To Rpm: 30000 | Country of Origin: VARIOUS |
| Collet System: ER | |
| Collet Series: ER20 | |
| Shank Type: Taper | |
| Taper Size: CAT40 | |
| Projection (Decimal Inch): 4.0000 in | |
| Projection (Inch): 4 | |
| Through Coolant: Yes | |
| Minimum Collet Capacity (Decimal Inch): 0.0390 | |
| Maximum Collet Capacity (Decimal Inch): 0.5110 | |
| TIR (Decimal Inch): 0.000200 | |
| Coolant Type: Through-Spindle & DIN Flange | |
| Collet Nut Diameter (Decimal Inch): 1.3800 | |
| UNSPSC Code: 27112808 | |
| Product Service Code: 5136 | |
| Balanced To Rpm: 30000 | |
| Country of Origin: VARIOUS |
| MSC# | 80265283 |
| Mfr# | 775646 |
| Big Book# | 1210 |
