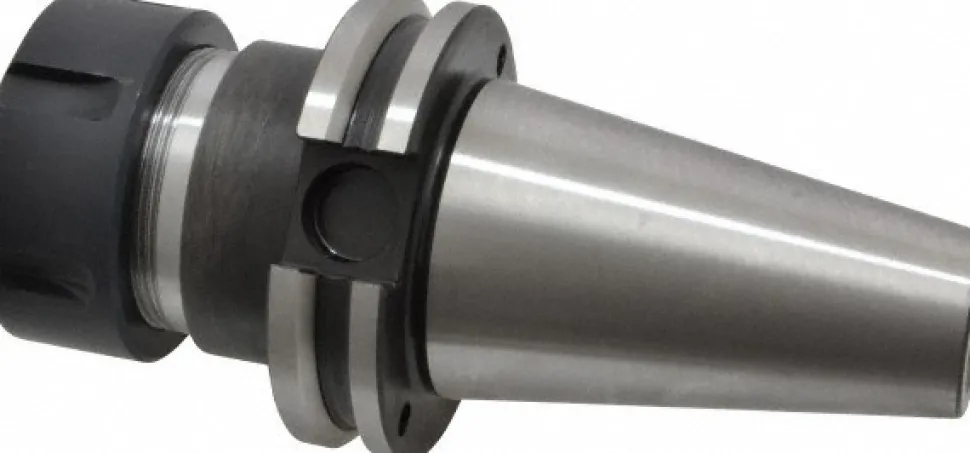

Collet Chuck: 0.0800 to 0.7874″ Capacity, ER32 Collet, Taper Shank
Original price was: 229,00 $.130,99 $Current price is: 130,99 $.
Specifications
| Collet System: ER | Collet Series: ER32 |
| Shank Type: Taper | Taper Size: CAT40 |
| Projection (Decimal Inch): 2.7500 in | Projection (Inch): 2-3/4 |
| Through Coolant: Yes | Minimum Collet Capacity (mm): 2.03 |
| Minimum Collet Capacity (Decimal Inch): 0.0800 | Maximum Collet Capacity (mm): 20.00 |
| Maximum Collet Capacity (Decimal Inch): 0.7874 | Overall Length (Decimal Inch): 5.4370 |
| Actuator Type: Wrench | Nose Diameter (Decimal Inch – 4 Decimals): 1.9700 |
| Coolant Type: Through-Spindle & DIN Flange | Collet Nut Diameter (mm): 50.01 |
| Collet Nut Diameter (Decimal Inch): 1.9690 | UNSPSC Code: 27112808 |
| Product Service Code: 5136 | Balanced To Rpm: 12000 |
| Country of Origin: Slovenia | |
| Collet System: ER | |
| Collet Series: ER32 | |
| Shank Type: Taper | |
| Taper Size: CAT40 | |
| Projection (Decimal Inch): 2.7500 in | |
| Projection (Inch): 2-3/4 | |
| Through Coolant: Yes | |
| Minimum Collet Capacity (mm): 2.03 | |
| Minimum Collet Capacity (Decimal Inch): 0.0800 | |
| Maximum Collet Capacity (mm): 20.00 | |
| Maximum Collet Capacity (Decimal Inch): 0.7874 | |
| Overall Length (Decimal Inch): 5.4370 | |
| Actuator Type: Wrench | |
| Nose Diameter (Decimal Inch – 4 Decimals): 1.9700 | |
| Coolant Type: Through-Spindle & DIN Flange | |
| Collet Nut Diameter (mm): 50.01 | |
| Collet Nut Diameter (Decimal Inch): 1.9690 | |
| UNSPSC Code: 27112808 | |
| Product Service Code: 5136 | |
| Balanced To Rpm: 12000 | |
| Country of Origin: Slovenia |
| MSC# | 06495139 |
| Mfr# | 1261619 |
| Big Book# | 1212 |
