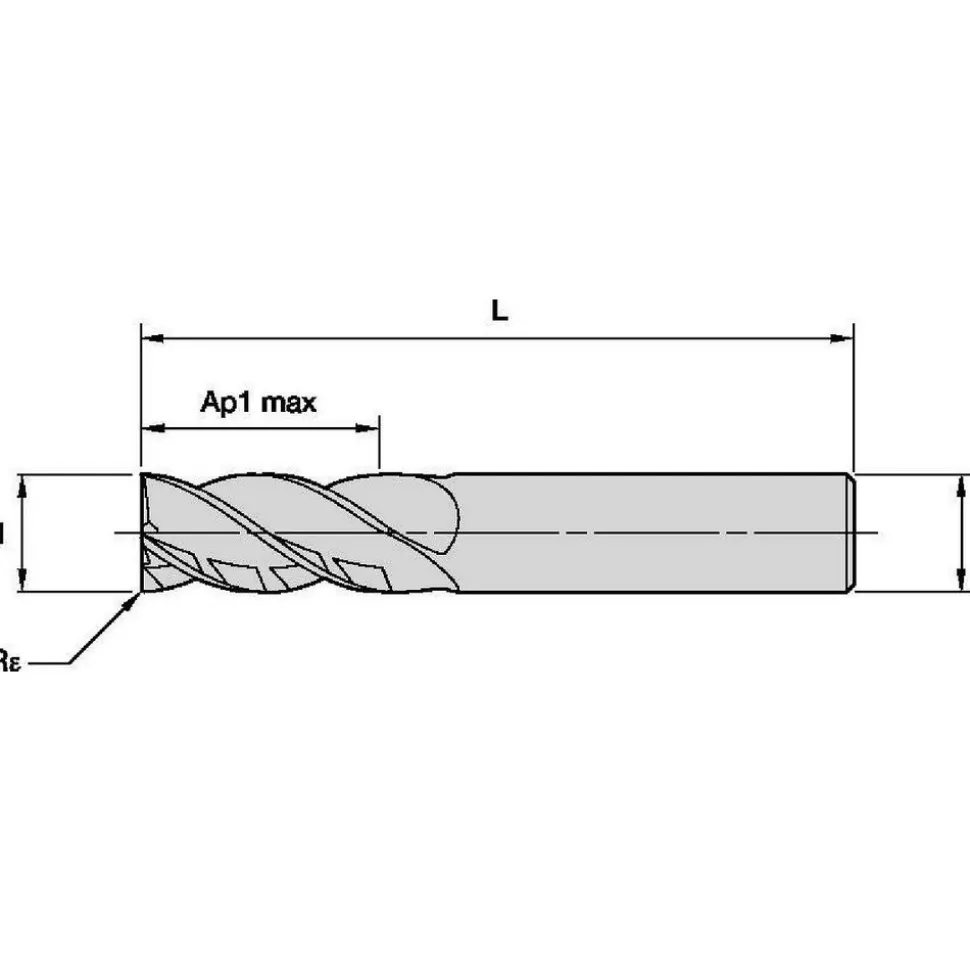

Corner Radius End Mill: 1/2″ Dia, 1″ LOC, 0.0300″ Corner Radius, 4 Flute, Solid Carbide
130,89 $
Shop Corner Radius End Mill: 1/2″ Dia, 1″ LOC, 0.0300″ Corner Radius, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Inch): 1/2 | Mill Diameter (Decimal Inch): 0.5000 |
| Number Of Flutes: 4 | Length of Cut (Inch): 1 |
| Single Or Double End: Single | End Mill Material: Solid Carbide |
| Chipbreaker: No | Coating/Finish: AlTiN |
| Overall Length (Inch): 3 | Centercutting: Yes |
| Flute Direction: Right Hand | Corner Radius (Decimal Inch): 0.0300 |
| Variable Index: No | Helix Angle: 36.00 |
| Cutting Direction: Right Hand | Coolant Through: No |
| Pitch: Normal | Overall Length (Decimal Inch): 3.0000 |
| End Type: Corner Radius | Length Of Cut (Decimal Inch – 4 Decimals): 1.0000 |
| Length Type: Short | Flute Type: Spiral |
| Extended Reach: No | Shank Type: Straight-Cylindrical |
| Material Removal Type: Roughing & Finishing | Shank Diameter (Decimal Inch): 0.5000 |
| Shank Diameter (Inch): 1/2 | Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| UNSPSC Code: 27112803 | Primary Workpiece Material Code: P; S; H; K; M |
| Material Grade: Submicron | Series: HARVI I TE |
| Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Coating Classification: PVD |
| For Use With.: End Mill Toolholders | Country of Origin: UNITED STATES |
| Mill Diameter (Inch): 1/2 | |
| Mill Diameter (Decimal Inch): 0.5000 | |
| Number Of Flutes: 4 | |
| Length of Cut (Inch): 1 | |
| Single Or Double End: Single | |
| End Mill Material: Solid Carbide | |
| Chipbreaker: No | |
| Coating/Finish: AlTiN | |
| Overall Length (Inch): 3 | |
| Centercutting: Yes | |
| Flute Direction: Right Hand | |
| Corner Radius (Decimal Inch): 0.0300 | |
| Variable Index: No | |
| Helix Angle: 36.00 | |
| Cutting Direction: Right Hand | |
| Coolant Through: No | |
| Pitch: Normal | |
| Overall Length (Decimal Inch): 3.0000 | |
| End Type: Corner Radius | |
| Length Of Cut (Decimal Inch – 4 Decimals): 1.0000 | |
| Length Type: Short | |
| Flute Type: Spiral | |
| Extended Reach: No | |
| Shank Type: Straight-Cylindrical | |
| Material Removal Type: Roughing & Finishing | |
| Shank Diameter (Decimal Inch): 0.5000 | |
| Shank Diameter (Inch): 1/2 | |
| Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| UNSPSC Code: 27112803 | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Material Grade: Submicron | |
| Series: HARVI I TE | |
| Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Coating Classification: PVD | |
| For Use With.: End Mill Toolholders | |
| Country of Origin: UNITED STATES |
| MSC# | 99989972 |
| Mfr# | 6676409 |
