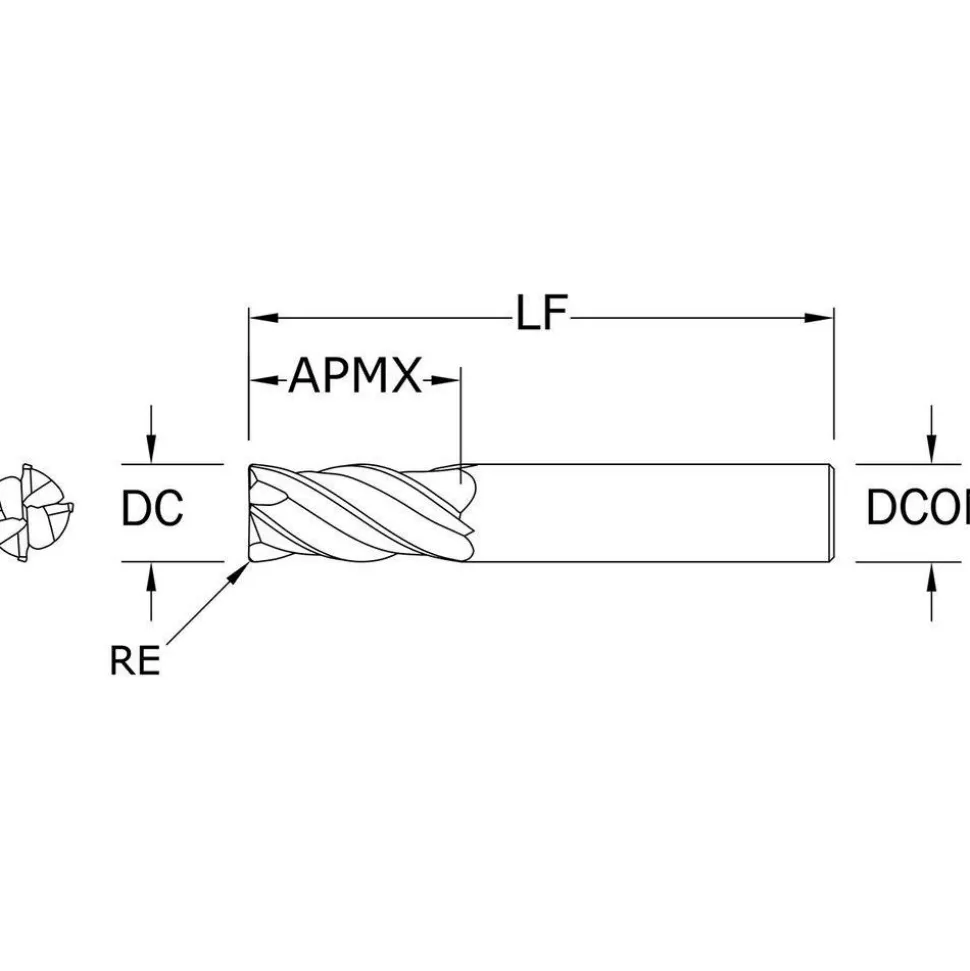

Corner Radius End Mill: 1/8″ Dia, 3/8″ LOC, 0.0100″ Corner Radius, 4 Flute, Solid Carbide
19,89 $
Shop Corner Radius End Mill: 1/8″ Dia, 3/8″ LOC, 0.0100″ Corner Radius, 4 Flute, Solid Carbide at MSC Direct top provider of high quality products
Specifications
| Mill Diameter (Inch): 1/8 | Mill Diameter (Decimal Inch): 0.1250 |
| Number Of Flutes: 4 | Length of Cut (Inch): 3/8 |
| Single Or Double End: Single | End Mill Material: Solid Carbide |
| Chipbreaker: No | Coating/Finish: TX |
| Overall Length (Inch): 1-1/2 | Centercutting: No |
| Flute Direction: Right Hand | Corner Radius (Decimal Inch): 0.0100 |
| Variable Index: Yes | Helix Angle: 38.00; 35.00 |
| Cutting Direction: Right Hand | Coolant Through: No |
| Pitch: Normal | Overall Length (Decimal Inch): 1.5000 |
| End Type: Corner Radius | Length Of Cut (Decimal Inch – 4 Decimals): 0.3750 |
| Length Type: Standard | Flute Type: Spiral |
| Extended Reach: No | Shank Type: Straight-Cylindrical |
| Material Removal Type: Roughing & Finishing | Shank Diameter (Decimal Inch): 0.1250 |
| Shank Diameter (Inch): 1/8 | Corner Radius Tolerance: +0.00000 to -0.00200 in |
| Mill Diameter Tolerance: -0.0012/0.0000 in | Shank Diameter Tolerance: h6 |
| Primary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | UNSPSC Code: 27112803 |
| Primary Workpiece Material Code: P; S; K; M | Secondary Workpiece Material: Hard Material |
| Secondary Workpiece Material Code: H | Material Grade: Micrograin |
| Series: ZPCR | Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| For Use With.: End Mill Toolholders | Country of Origin: UNITED STATES |
| Mill Diameter (Inch): 1/8 | |
| Mill Diameter (Decimal Inch): 0.1250 | |
| Number Of Flutes: 4 | |
| Length of Cut (Inch): 3/8 | |
| Single Or Double End: Single | |
| End Mill Material: Solid Carbide | |
| Chipbreaker: No | |
| Coating/Finish: TX | |
| Overall Length (Inch): 1-1/2 | |
| Centercutting: No | |
| Flute Direction: Right Hand | |
| Corner Radius (Decimal Inch): 0.0100 | |
| Variable Index: Yes | |
| Helix Angle: 38.00; 35.00 | |
| Cutting Direction: Right Hand | |
| Coolant Through: No | |
| Pitch: Normal | |
| Overall Length (Decimal Inch): 1.5000 | |
| End Type: Corner Radius | |
| Length Of Cut (Decimal Inch – 4 Decimals): 0.3750 | |
| Length Type: Standard | |
| Flute Type: Spiral | |
| Extended Reach: No | |
| Shank Type: Straight-Cylindrical | |
| Material Removal Type: Roughing & Finishing | |
| Shank Diameter (Decimal Inch): 0.1250 | |
| Shank Diameter (Inch): 1/8 | |
| Corner Radius Tolerance: +0.00000 to -0.00200 in | |
| Mill Diameter Tolerance: -0.0012/0.0000 in | |
| Shank Diameter Tolerance: h6 | |
| Primary Workpiece Material: Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| UNSPSC Code: 27112803 | |
| Primary Workpiece Material Code: P; S; K; M | |
| Secondary Workpiece Material: Hard Material | |
| Secondary Workpiece Material Code: H | |
| Material Grade: Micrograin | |
| Series: ZPCR | |
| Material Application: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| For Use With.: End Mill Toolholders | |
| Country of Origin: UNITED STATES |
| MSC# | 81971913 |
| Mfr# | 36370 |
