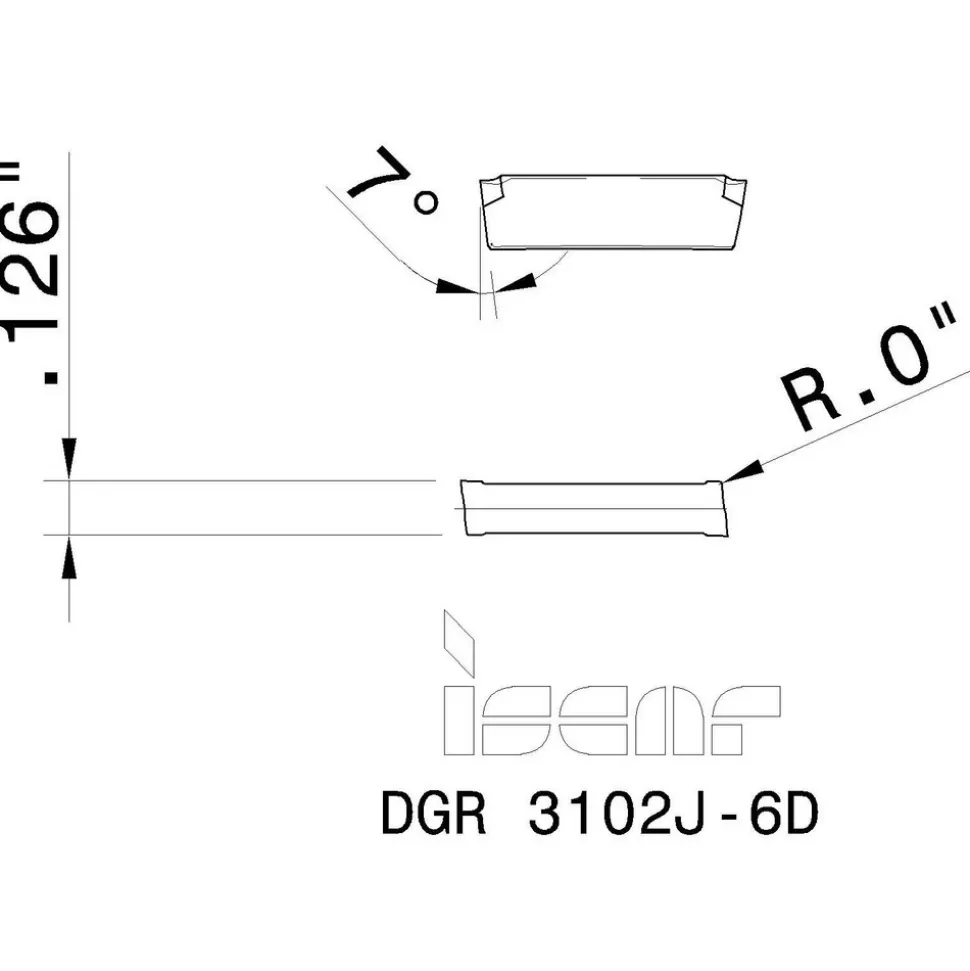

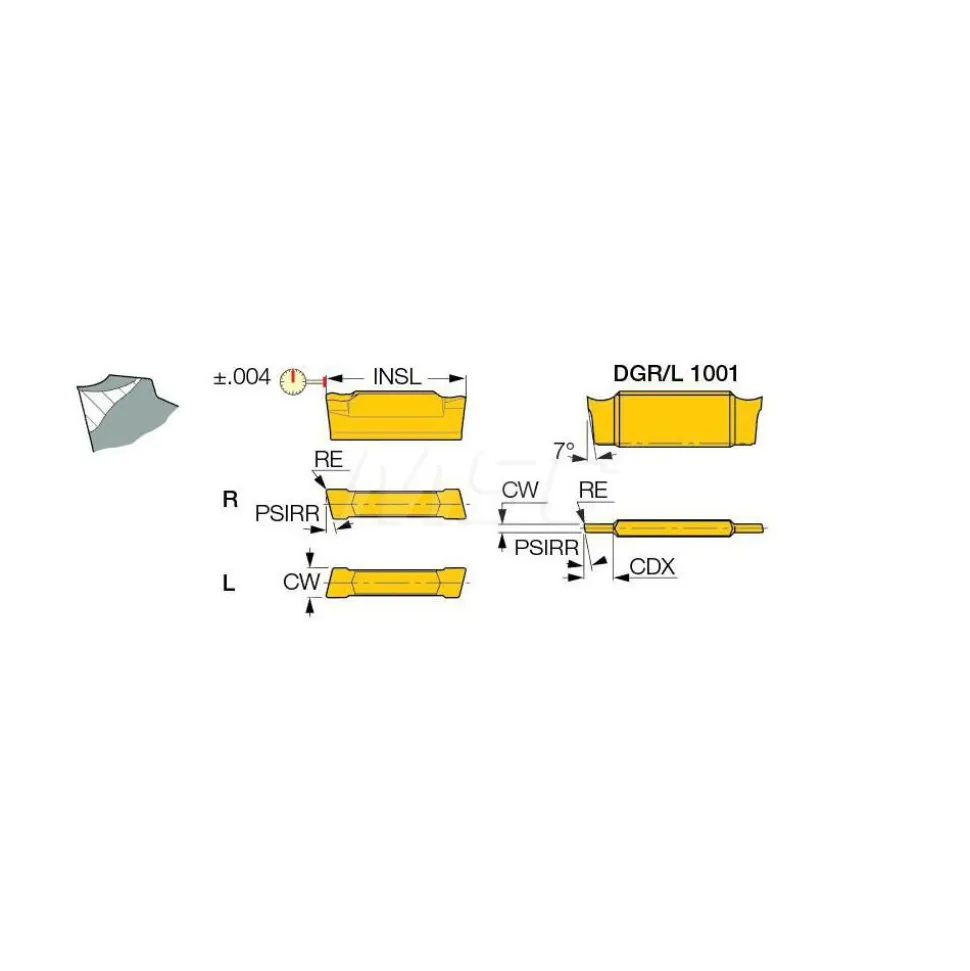

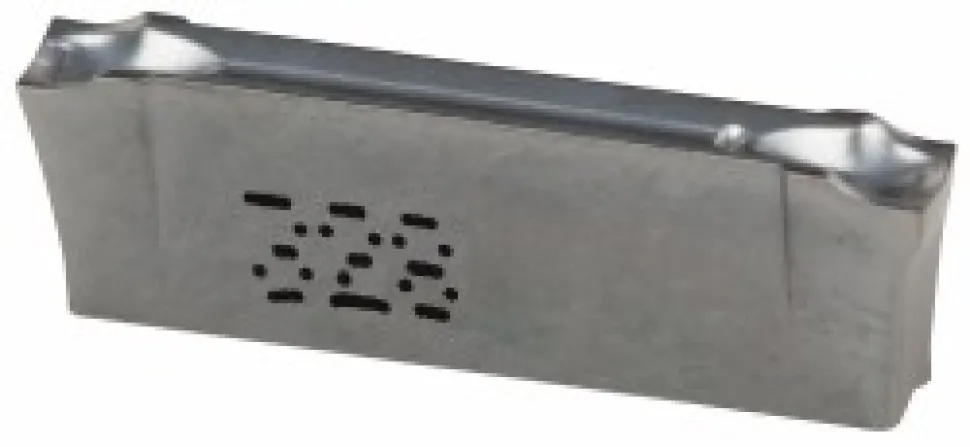

Cutoff Insert: DGR 3102J-6D IC-328, Carbide, 3.10 mm Cutting Width, 0.1220″ Cutting Width
27,99 $
Specifications
| Insert Style: DGR | Insert Size Code: 3102 |
| Insert Material: Carbide | Manufacturer Grade: IC328 |
| Cutting Width (Decimal Inch): 0.1220 | Cutting Width (mm): 3.10 |
| Insert Holding Method: Clamp | Lead Angle Direction: Right Hand |
| Insert Hand: Right Hand | Lead Angle: 6.000 |
| Relief Angle: 7.000 | Corner Radius (Decimal Inch): 0.0079 |
| Chipbreaker: J | Multi-use Tool: No |
| Cutting Tool Application: Parting | Series: Do-Grip |
| Coating Process: PVD | Overall Length (mm): 21.00 |
| Overall Length (Decimal Inch): 0.8268 | Primary Workpiece Material: Superalloy |
| Primary Workpiece Material Code: P; S; M | Iso Code: ISO 13399 |
| Standards: ISO 13399 | Manufacturers Catalog Number: DGR 3102J-6D |
| Maximum Depth of Cut (mm): 18.00 | Material Grade: C3; C5; C6; C2 |
| Maximum Depth of Cut (Decimal Inch): 0.7087 | Coating/Finish: Coated |
| Single Or Double End: Double | UNSPSC Code: 23242105 |
| Country of Origin: Israel | |
| Insert Style: DGR | |
| Insert Size Code: 3102 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC328 | |
| Cutting Width (Decimal Inch): 0.1220 | |
| Cutting Width (mm): 3.10 | |
| Insert Holding Method: Clamp | |
| Lead Angle Direction: Right Hand | |
| Insert Hand: Right Hand | |
| Lead Angle: 6.000 | |
| Relief Angle: 7.000 | |
| Corner Radius (Decimal Inch): 0.0079 | |
| Chipbreaker: J | |
| Multi-use Tool: No | |
| Cutting Tool Application: Parting | |
| Series: Do-Grip | |
| Coating Process: PVD | |
| Overall Length (mm): 21.00 | |
| Overall Length (Decimal Inch): 0.8268 | |
| Primary Workpiece Material: Superalloy | |
| Primary Workpiece Material Code: P; S; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| Manufacturers Catalog Number: DGR 3102J-6D | |
| Maximum Depth of Cut (mm): 18.00 | |
| Material Grade: C3; C5; C6; C2 | |
| Maximum Depth of Cut (Decimal Inch): 0.7087 | |
| Coating/Finish: Coated | |
| Single Or Double End: Double | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Israel |
| MSC# | 52701059 |
| Mfr# | 6002453 |
| Big Book# | 889 |
