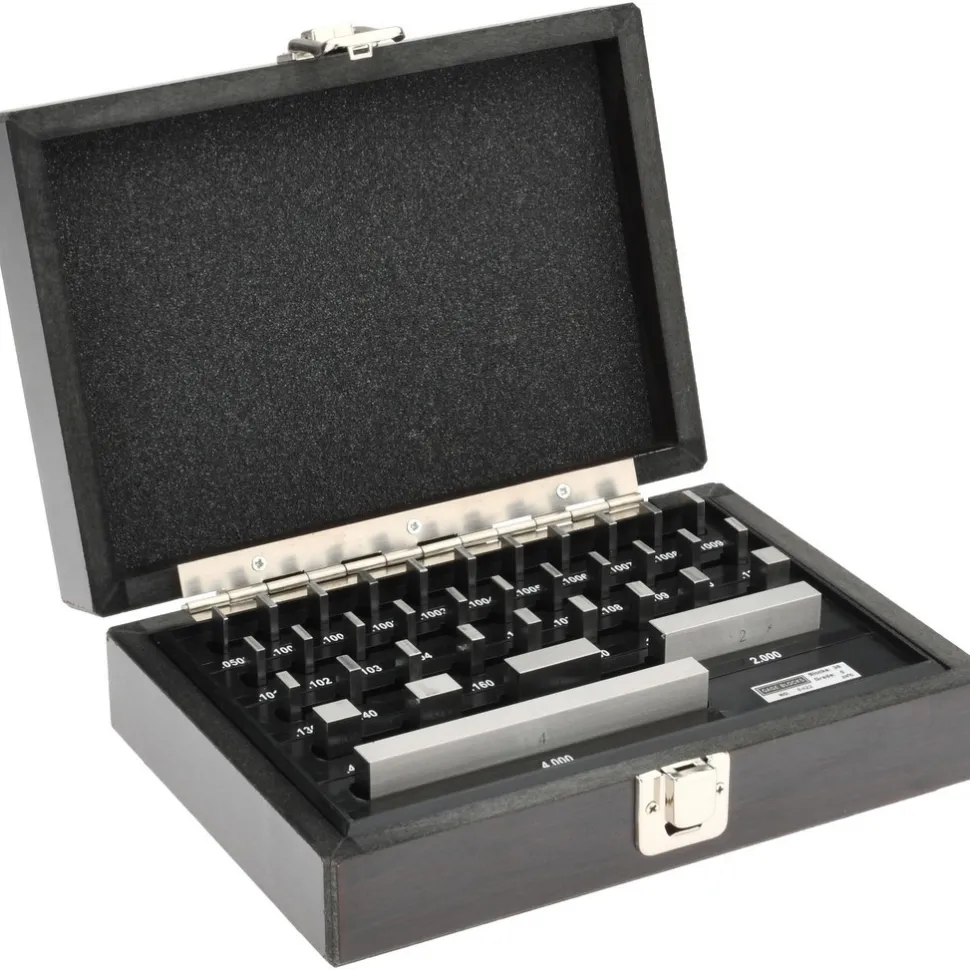

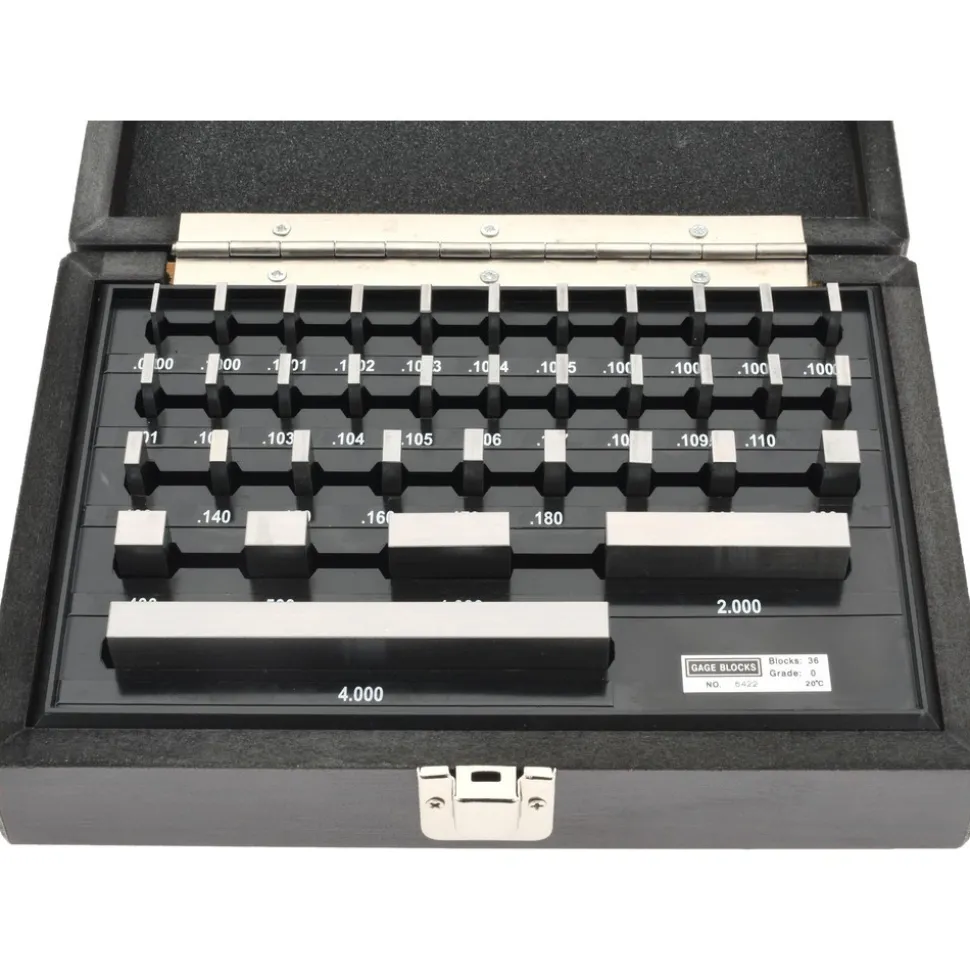

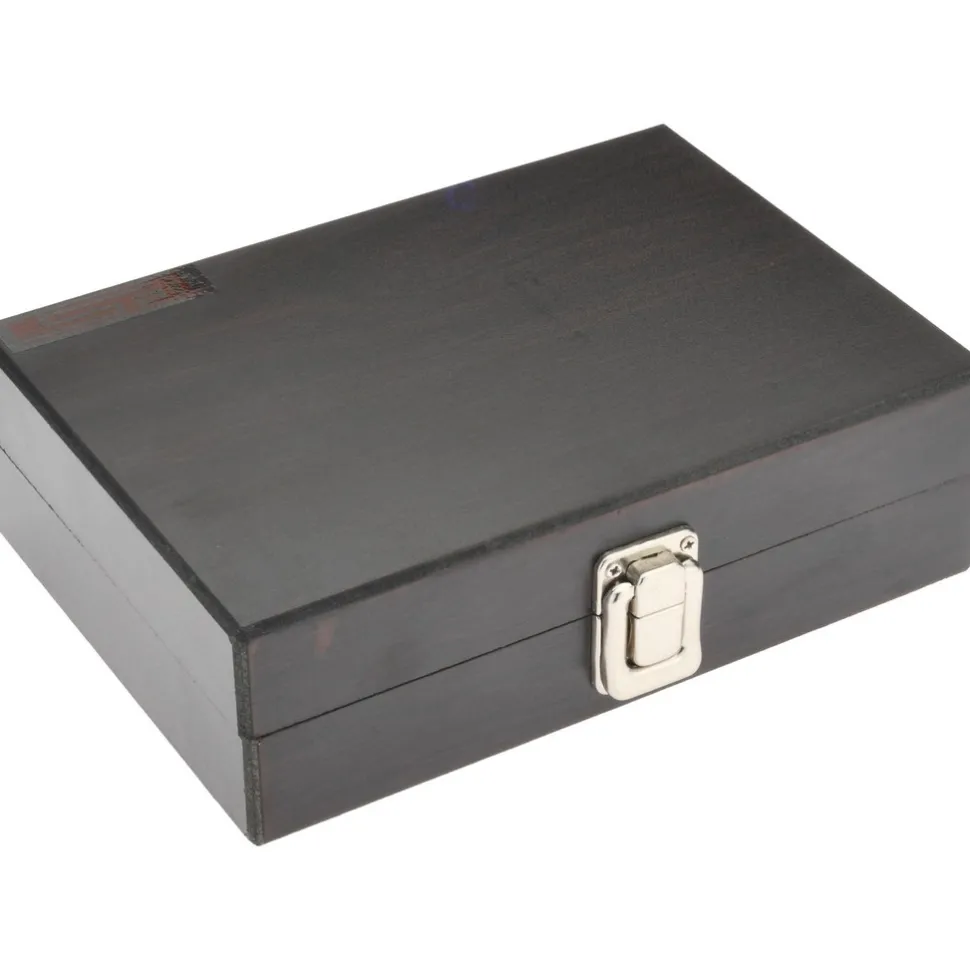

Gage Block Set: 0.05 to 4” Range, 36 Pc, Steel

122,99 $

Specifications

Shape: Rectangle	Material: Steel
Accuracy Grade: 0	Minimum Size (Decimal Inch): 0.0500
Maximum Size (Decimal Inch): 4.0000	Number Of Pieces: 36
Individually Serialized: Yes	Tolerance (micro Inch): +4 – 2 (0.050 – 1); +12 – 6 (4); +8 – 4 (2)
Step Increments (Inch): (9) 0.010; (9) 0.0001; (9) 0.001	Includes: (1) 0.050; (5) 0.100-0.500 (with 0.100 step); (9) 0.110-0.190 (with 0.010 Step); (9) 0.1001-0.1009 (with 0.0001 Step); (9) 0.101-0.109 (with 0.001 Step); (3)1,2,4
Standards: ASME B89.1.9-2002	Certification Included: Yes
UNSPSC Code: 41111618	Country of Origin: China
Shape: Rectangle
Material: Steel
Accuracy Grade: 0
Minimum Size (Decimal Inch): 0.0500
Maximum Size (Decimal Inch): 4.0000
Number Of Pieces: 36
Individually Serialized: Yes
Tolerance (micro Inch): +4 – 2 (0.050 – 1); +12 – 6 (4); +8 – 4 (2)
Step Increments (Inch): (9) 0.010; (9) 0.0001; (9) 0.001
Includes: (1) 0.050; (5) 0.100-0.500 (with 0.100 step); (9) 0.110-0.190 (with 0.010 Step); (9) 0.1001-0.1009 (with 0.0001 Step); (9) 0.101-0.109 (with 0.001 Step); (3)1,2,4
Standards: ASME B89.1.9-2002
Certification Included: Yes
UNSPSC Code: 41111618
Country of Origin: China
