Sale!

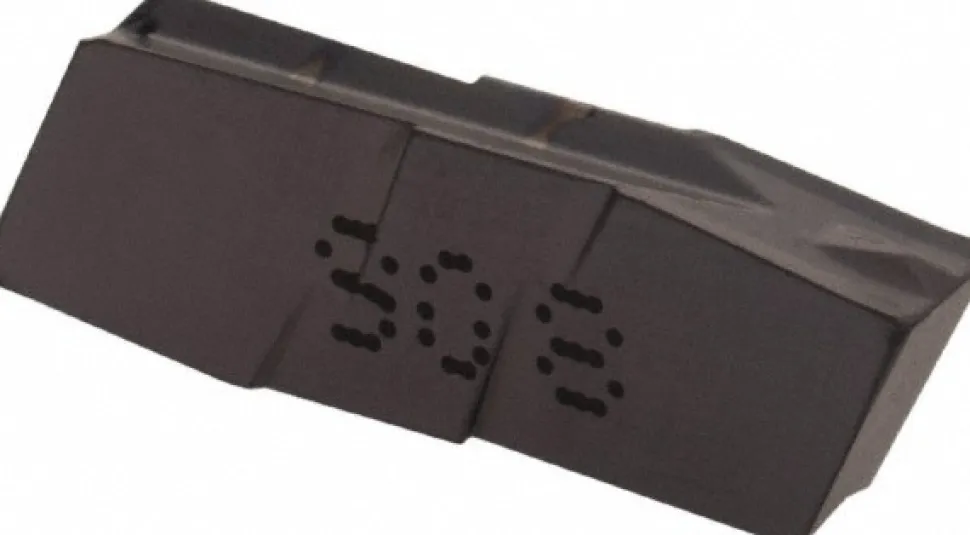

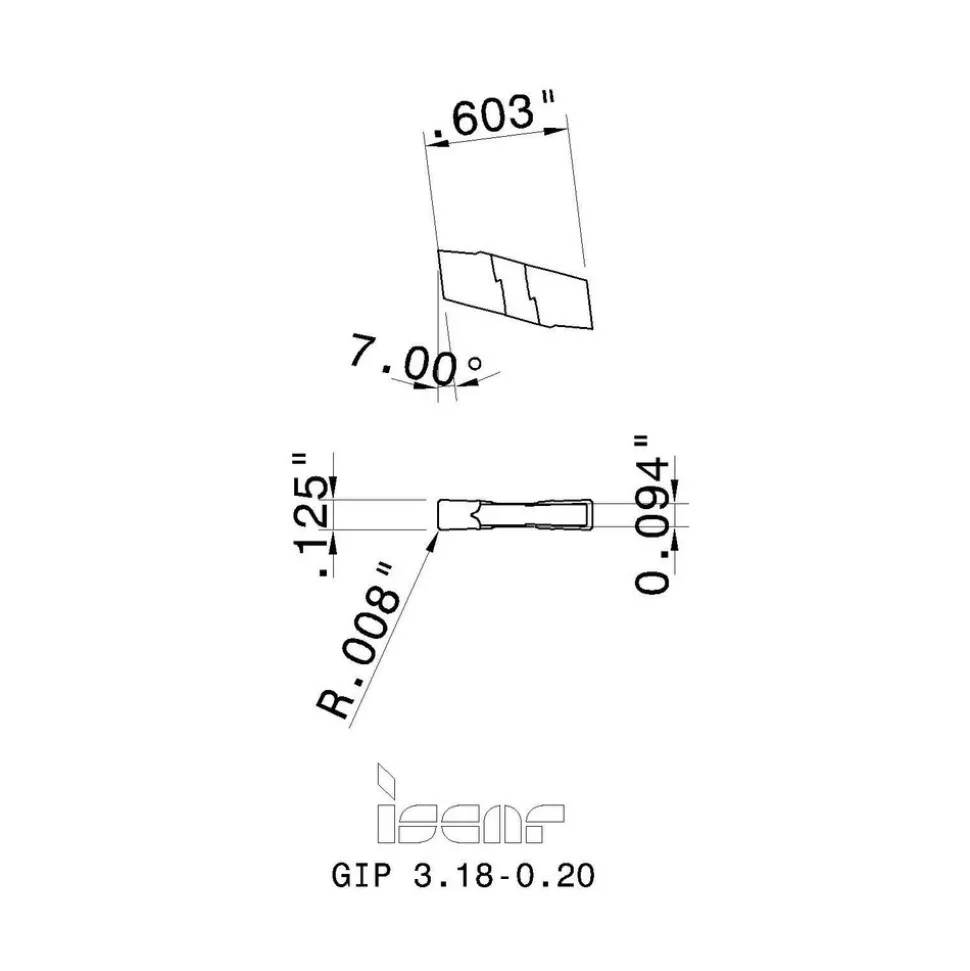

Grooving Insert: GIP3.18-0.20 IC908, Carbide
Original price was: 48,00 $.35,99 $Current price is: 35,99 $.
Specifications
| Insert Style: GIP | Insert Size Code: 318020 |
| Cutting Width (Decimal Inch): 0.1252 | Cutting Width (mm): 3.18 |
| Insert Hand: Neutral | Maximum Depth of Cut (Decimal Inch): 0.5120 |
| Maximum Depth of Cut (mm): 13.00 | Insert Material: Carbide |
| Manufacturer Grade: IC908 | Full Radius: No |
| Corner Radius (Decimal Inch): 0.0079 | Corner Radius (mm): 0.20 |
| Rake: Positive | Measurement Type: Metric |
| Insert Size: 318020 | Material Grade: C6; C7; C1; C2 |
| Multi-use Tool: No | Series: Cut-Grip |
| Coating Process: PVD | Rake Angle: 7.000 |
| Overall Length (Decimal Inch): 0.6024 | Primary Workpiece Material: Universal |
| Primary Workpiece Material Code: P; S; H; K; M | Iso Code: ISO 13399 |
| Standards: ISO 13399 | UNSPSC Code: 23242105 |
| Chip Breaker: P | MSC/Manufacturer Number: GIP 3.18-0.20 |
| Coating/Finish: TiAlN | Country of Origin: Israel |
| Insert Style: GIP | |
| Insert Size Code: 318020 | |
| Cutting Width (Decimal Inch): 0.1252 | |
| Cutting Width (mm): 3.18 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.5120 | |
| Maximum Depth of Cut (mm): 13.00 | |
| Insert Material: Carbide | |
| Manufacturer Grade: IC908 | |
| Full Radius: No | |
| Corner Radius (Decimal Inch): 0.0079 | |
| Corner Radius (mm): 0.20 | |
| Rake: Positive | |
| Measurement Type: Metric | |
| Insert Size: 318020 | |
| Material Grade: C6; C7; C1; C2 | |
| Multi-use Tool: No | |
| Series: Cut-Grip | |
| Coating Process: PVD | |
| Rake Angle: 7.000 | |
| Overall Length (Decimal Inch): 0.6024 | |
| Primary Workpiece Material: Universal | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Iso Code: ISO 13399 | |
| Standards: ISO 13399 | |
| UNSPSC Code: 23242105 | |
| Chip Breaker: P | |
| MSC/Manufacturer Number: GIP 3.18-0.20 | |
| Coating/Finish: TiAlN | |
| Country of Origin: Israel |
| MSC# | 78689304 |
| Mfr# | 6402812 |
| Big Book# | 888 |
