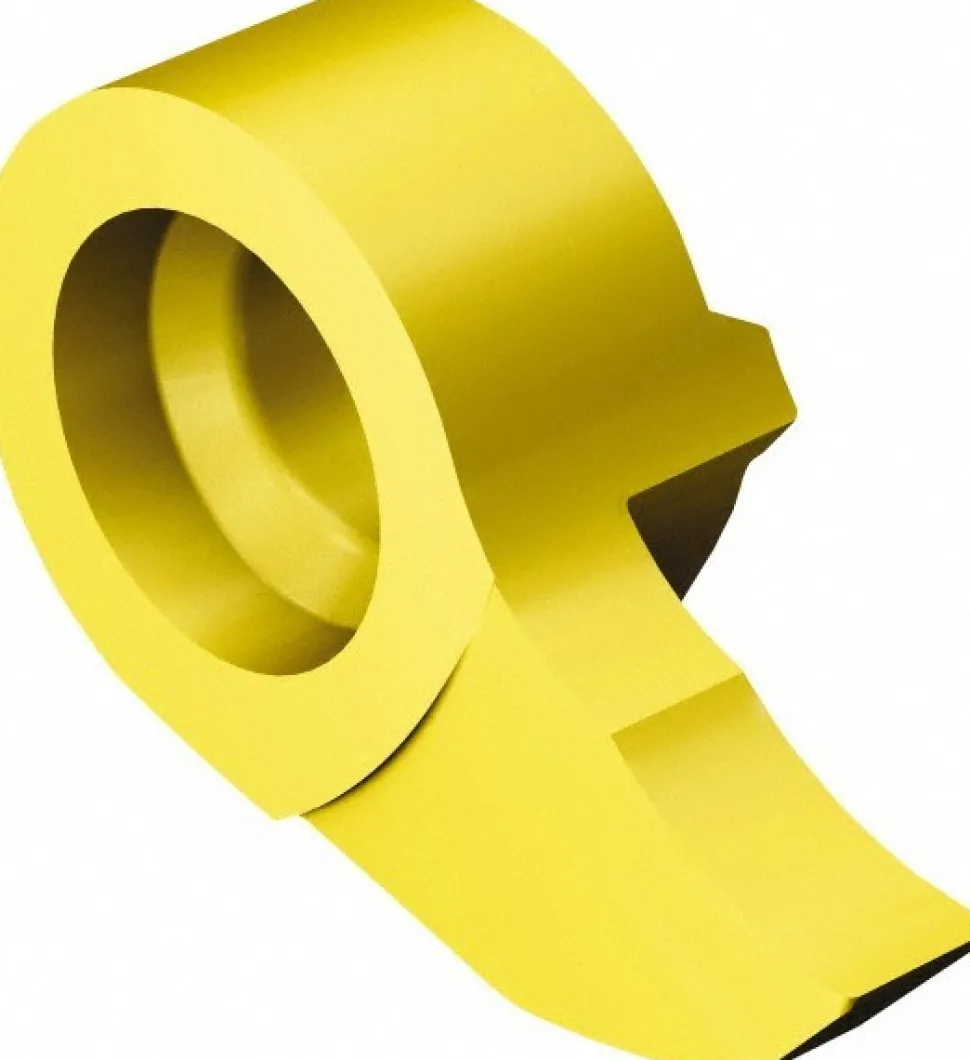

Grooving Insert: MB07G120-00-10R 1025, Carbide
30,89 $

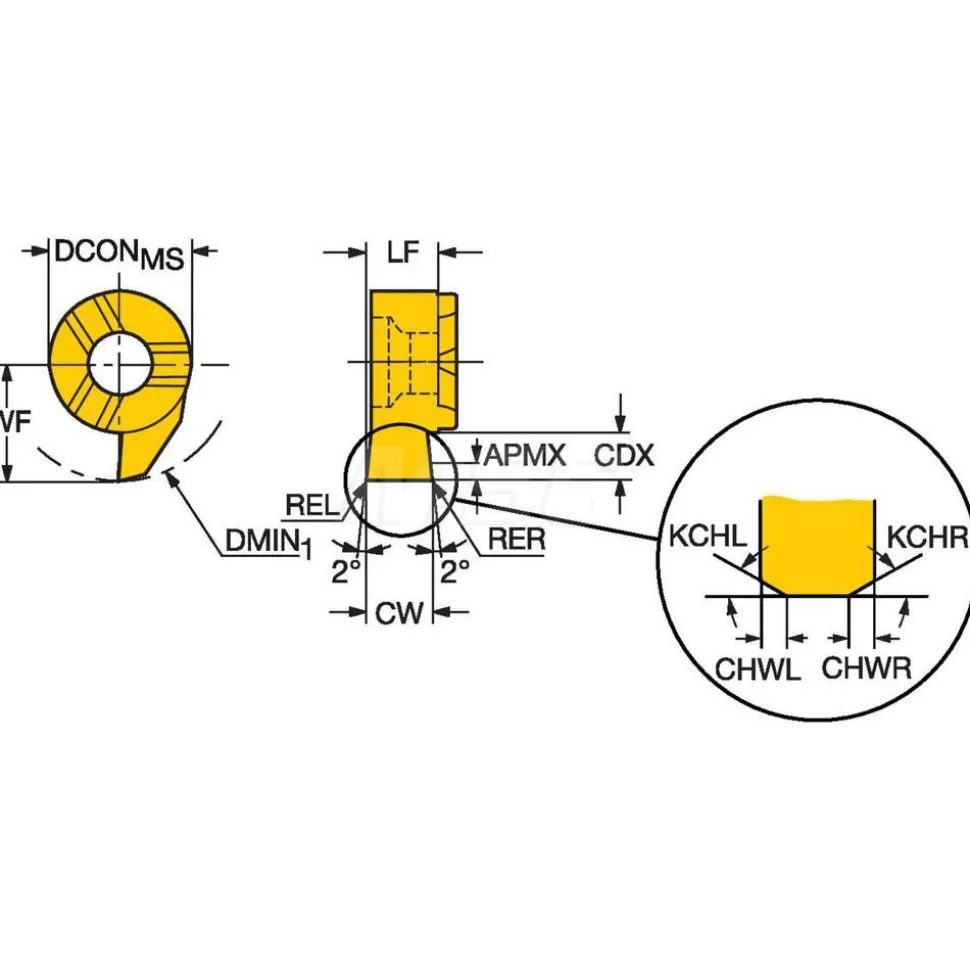

Specifications
| Insert Style: MB | Cutting Width (Decimal Inch): 0.0472 |
| Cutting Width (mm): 1.20 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.0709 | Maximum Depth of Cut (mm): 1.80 |
| Insert Material: Carbide | Manufacturer Grade: 1025 |
| Rake: Neutral | Measurement Type: Metric |
| Insert Size: 07 | Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750 |
| Maximum Depth Of Cut Range (mm): 0.00 to 2.00 | Lead Angle: 90.000 |
| Multi-use Tool: Yes | Series: CoroCut MB |
| Coating Process: PVD | Rake Angle: 2.000 |
| Overall Length (Decimal Inch): 0.1850 | Iso Code: MB-07G120-00-10R 1025 |
| Manufacturers Catalog Number: MB-07G120-00-10R 1025 | Insert Thickness (Decimal Inch): 0.2283 |
| UNSPSC Code: 23242105 | Overall Width (mm): 1.20 |
| Overall Width (Decimal Inch – 4 Decimals): 0.0472 | Coating/Finish: TiN; TiAlN |
| Country of Origin: France | |
| Insert Style: MB | |
| Cutting Width (Decimal Inch): 0.0472 | |
| Cutting Width (mm): 1.20 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.0709 | |
| Maximum Depth of Cut (mm): 1.80 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 1025 | |
| Rake: Neutral | |
| Measurement Type: Metric | |
| Insert Size: 07 | |
| Maximum Depth Of Cut Range (Decimal Inch): 0.0000 to 0.0750 | |
| Maximum Depth Of Cut Range (mm): 0.00 to 2.00 | |
| Lead Angle: 90.000 | |
| Multi-use Tool: Yes | |
| Series: CoroCut MB | |
| Coating Process: PVD | |
| Rake Angle: 2.000 | |
| Overall Length (Decimal Inch): 0.1850 | |
| Iso Code: MB-07G120-00-10R 1025 | |
| Manufacturers Catalog Number: MB-07G120-00-10R 1025 | |
| Insert Thickness (Decimal Inch): 0.2283 | |
| UNSPSC Code: 23242105 | |
| Overall Width (mm): 1.20 | |
| Overall Width (Decimal Inch – 4 Decimals): 0.0472 | |
| Coating/Finish: TiN; TiAlN | |
| Country of Origin: France |
| MSC# | 52068699 |
| Mfr# | 5735548 |
