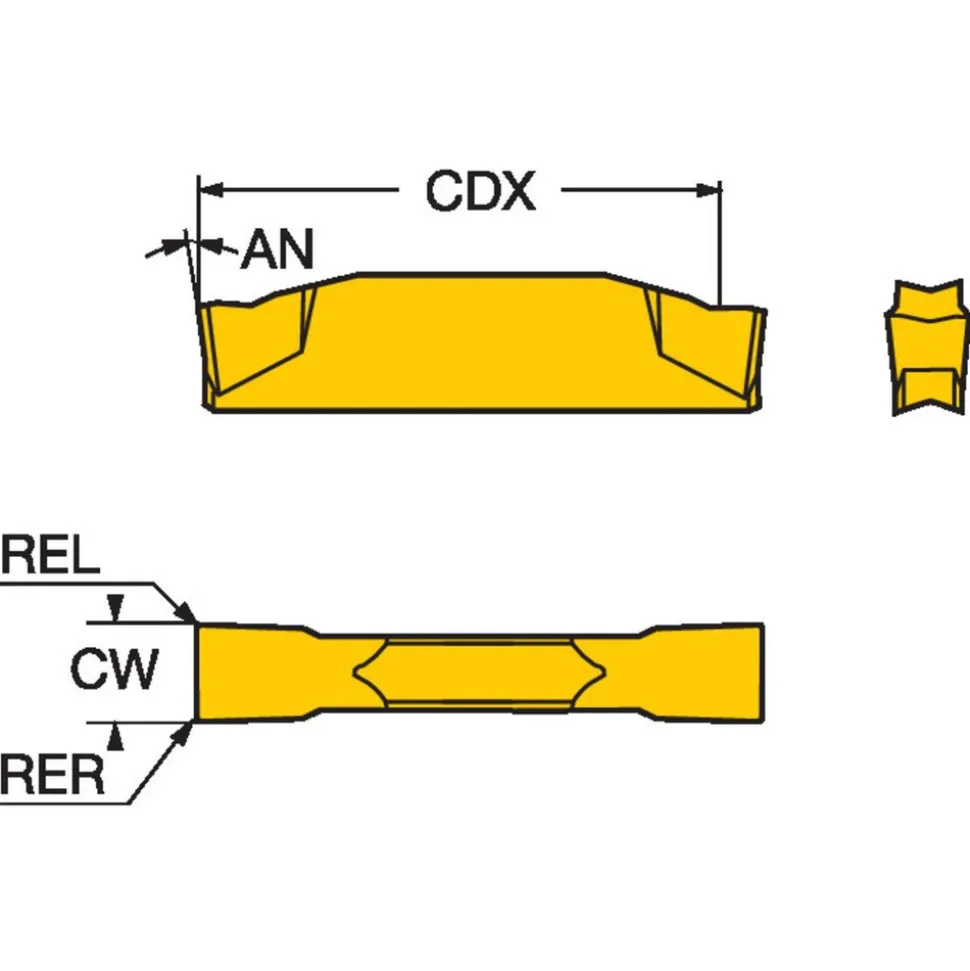

Grooving Insert: N123E202000002-GF 1105, Carbide
43,99 $
Specifications
| Insert Style: N123 | Cutting Width (Decimal Inch): 0.0787 |
| Cutting Width (mm): 2.00 | Insert Hand: Neutral |
| Maximum Depth of Cut (Decimal Inch): 0.7559 | Maximum Depth of Cut (mm): 19.20 |
| Insert Material: Carbide | Manufacturer Grade: 1105 |
| Corner Radius (Decimal Inch): 0.0079 | Corner Radius (mm): 0.20 |
| Rake: Neutral | Measurement Type: Metric |
| Insert Size: E | Cutting Height (mm): 4.30 |
| Maximum Depth Of Cut Range (Decimal Inch): 0.3000 to 1.0000 | Cutting Height (Decimal Inch): 0.1693 |
| Maximum Depth Of Cut Range (mm): 10.00 to 20.00 | Multi-use Tool: Yes |
| Series: CoroCut 1-2 | Coating Process: PVD |
| Rake Angle: 7.000 | Overall Length (Decimal Inch): 0.7894 |
| Iso Code: N123E2-0200-0002-GF 1105 | Manufacturers Catalog Number: N123E2-0200-0002-GF 1105 |
| Insert Thickness (Decimal Inch): 0.1693 | UNSPSC Code: 23242105 |
| Chip Breaker: GF | Insert Seat Size: E |
| Overall Width (mm): 2.00 | Overall Width (Decimal Inch – 4 Decimals): 0.0787 |
| Coating/Finish: TiAlN2 | Country of Origin: VARIOUS |
| Insert Style: N123 | |
| Cutting Width (Decimal Inch): 0.0787 | |
| Cutting Width (mm): 2.00 | |
| Insert Hand: Neutral | |
| Maximum Depth of Cut (Decimal Inch): 0.7559 | |
| Maximum Depth of Cut (mm): 19.20 | |
| Insert Material: Carbide | |
| Manufacturer Grade: 1105 | |
| Corner Radius (Decimal Inch): 0.0079 | |
| Corner Radius (mm): 0.20 | |
| Rake: Neutral | |
| Measurement Type: Metric | |
| Insert Size: E | |
| Cutting Height (mm): 4.30 | |
| Maximum Depth Of Cut Range (Decimal Inch): 0.3000 to 1.0000 | |
| Cutting Height (Decimal Inch): 0.1693 | |
| Maximum Depth Of Cut Range (mm): 10.00 to 20.00 | |
| Multi-use Tool: Yes | |
| Series: CoroCut 1-2 | |
| Coating Process: PVD | |
| Rake Angle: 7.000 | |
| Overall Length (Decimal Inch): 0.7894 | |
| Iso Code: N123E2-0200-0002-GF 1105 | |
| Manufacturers Catalog Number: N123E2-0200-0002-GF 1105 | |
| Insert Thickness (Decimal Inch): 0.1693 | |
| UNSPSC Code: 23242105 | |
| Chip Breaker: GF | |
| Insert Seat Size: E | |
| Overall Width (mm): 2.00 | |
| Overall Width (Decimal Inch – 4 Decimals): 0.0787 | |
| Coating/Finish: TiAlN2 | |
| Country of Origin: VARIOUS |
| MSC# | 33253881 |
| Mfr# | 5735780 |
