Sale!

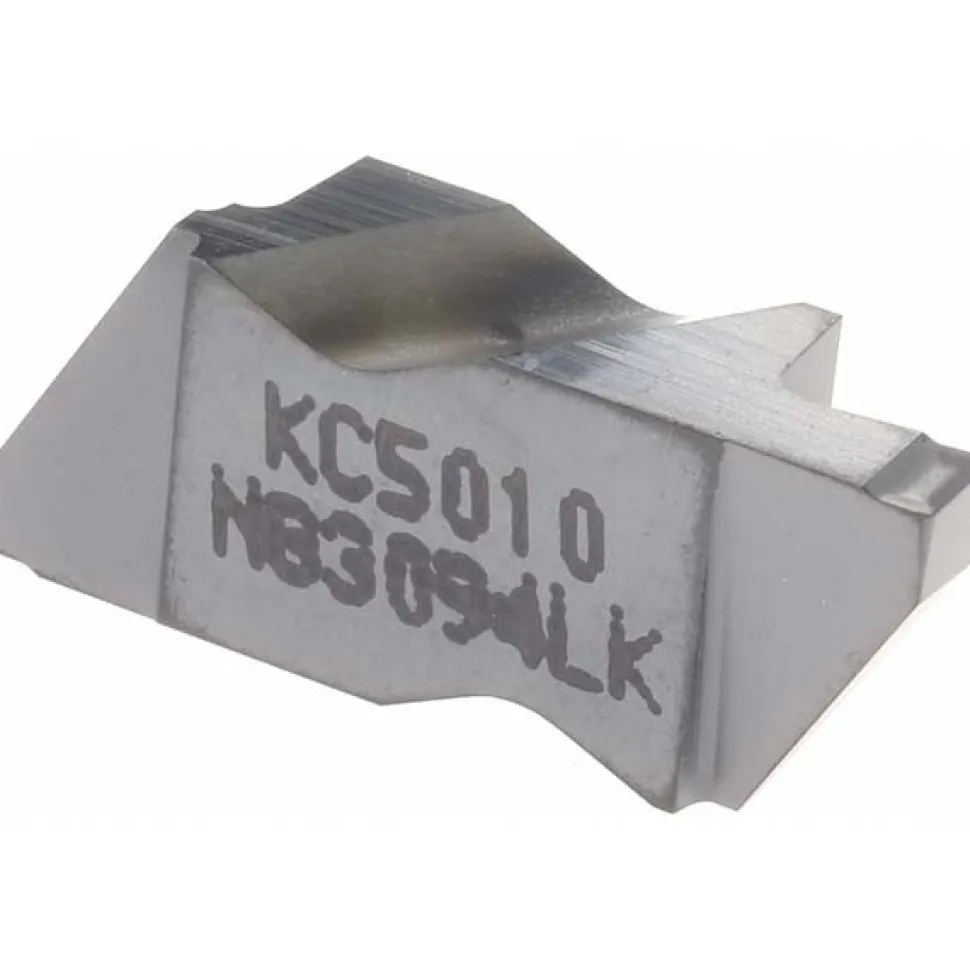

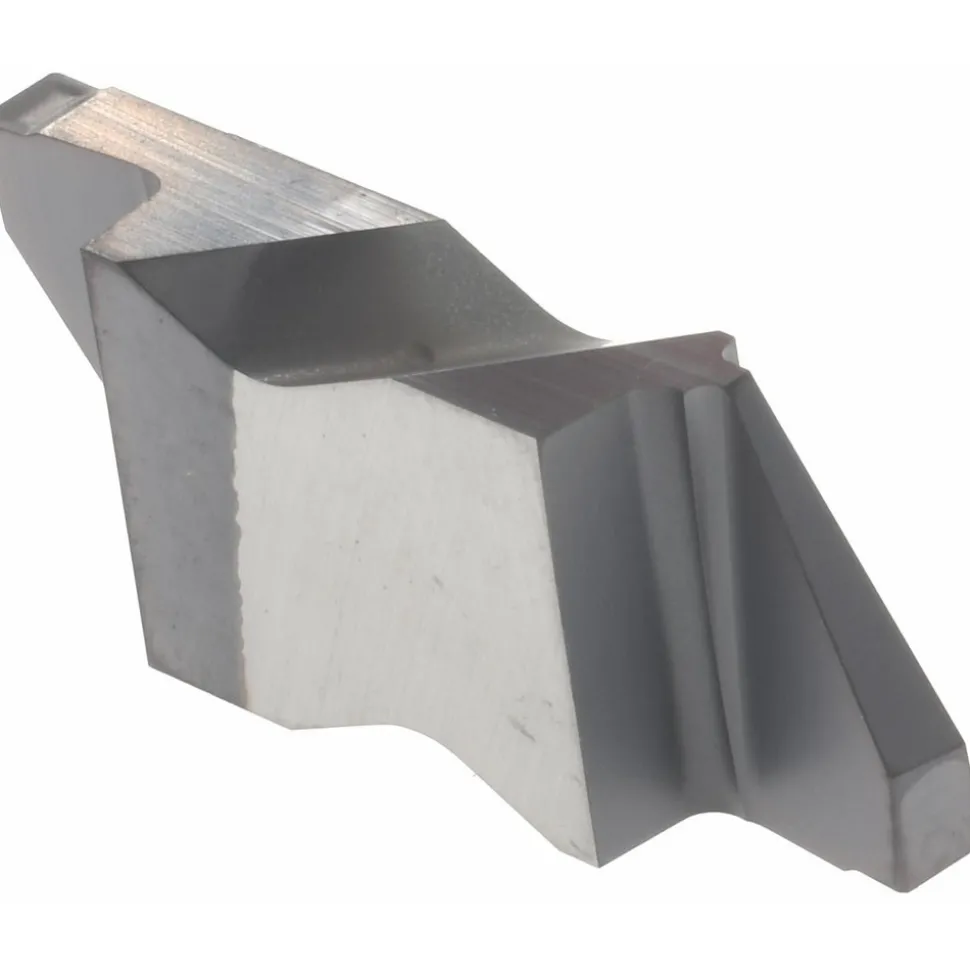

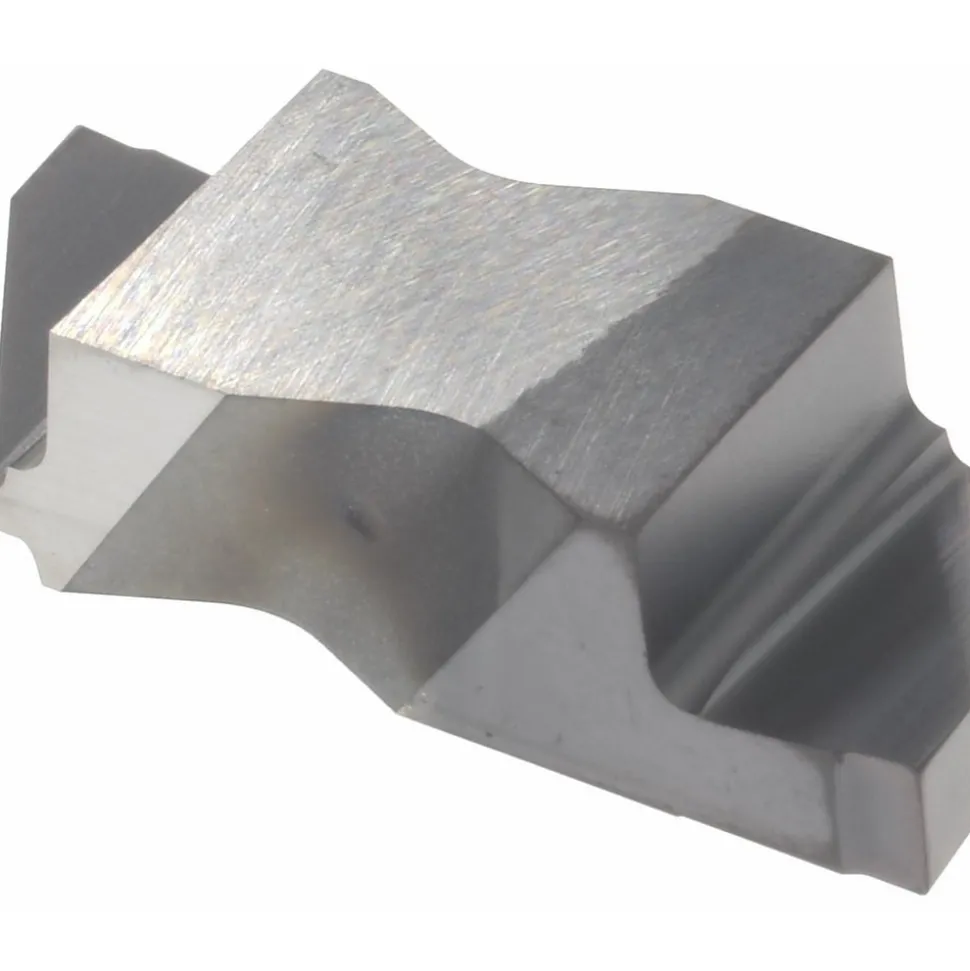

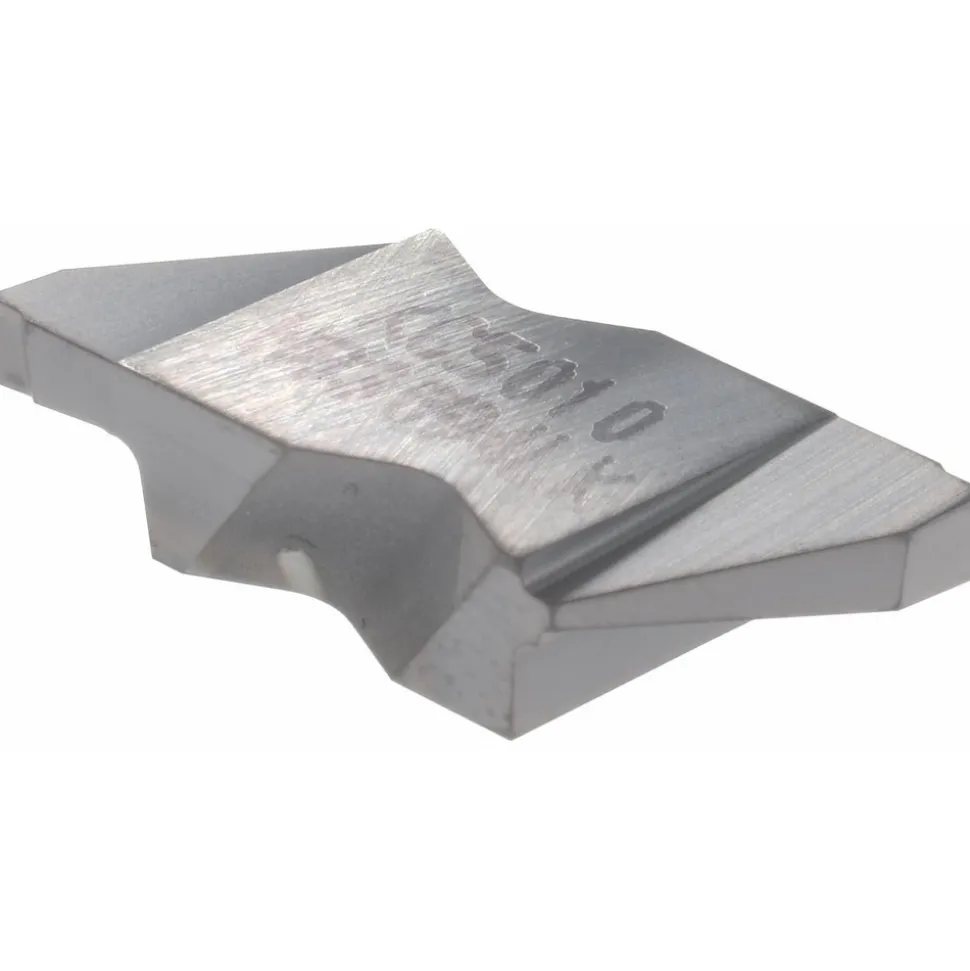

Grooving Insert: NG3094LK KC5010, Carbide

Original price was: 40,00 $.Current price is: 28,89 $.

Specifications

Insert Style: NG	Cutting Width (Decimal Inch): 0.0941
Cutting Width (mm): 2.39	Insert Hand: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.1500	Maximum Depth of Cut (mm): 3.81
Insert Material: Carbide	Manufacturer Grade: KC5010
Full Radius: No	Corner Radius (Decimal Inch): 0.0075
Corner Radius (mm): 0.19	Rake: Positive
Measurement Type: Metric	Insert Size: 3094
Material Grade: C3; C4	Maximum Depth Of Cut Range (Decimal Inch): 0.1500 to 0.2000
Maximum Depth Of Cut Range (mm): 3.00 to 4.00	Lead Angle: 3.000
Multi-use Tool: No	Series: Top Notch
Coating Process: PVD	Rake Angle: 10.000
UNSPSC Code: 23242105	Chip Breaker: K
Included Angle Degree: 55	Coating/Finish: TiAlN
Insert Style: NG
Cutting Width (Decimal Inch): 0.0941
Cutting Width (mm): 2.39
Insert Hand: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.1500
Maximum Depth of Cut (mm): 3.81
Insert Material: Carbide
Manufacturer Grade: KC5010
Full Radius: No
Corner Radius (Decimal Inch): 0.0075
Corner Radius (mm): 0.19
Rake: Positive
Measurement Type: Metric
Insert Size: 3094
Material Grade: C3; C4
Maximum Depth Of Cut Range (Decimal Inch): 0.1500 to 0.2000
Maximum Depth Of Cut Range (mm): 3.00 to 4.00
Lead Angle: 3.000
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
Rake Angle: 10.000
UNSPSC Code: 23242105
Chip Breaker: K
Included Angle Degree: 55
Coating/Finish: TiAlN
