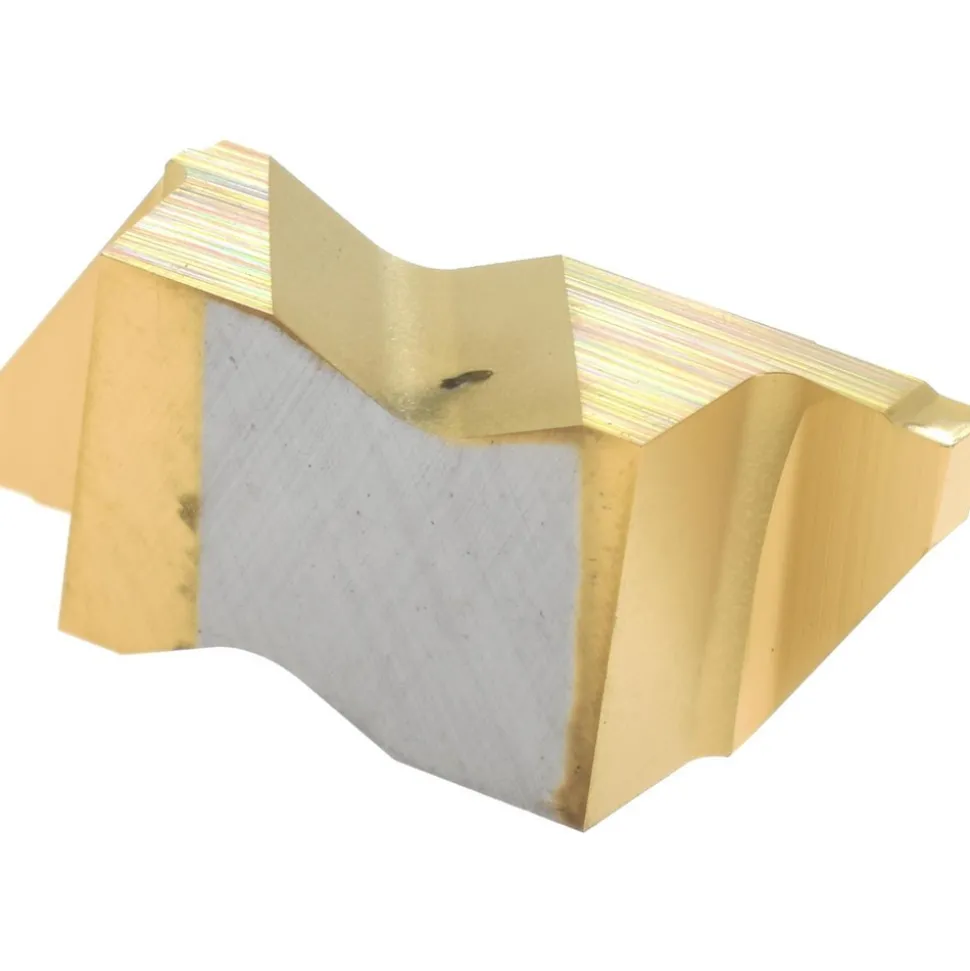

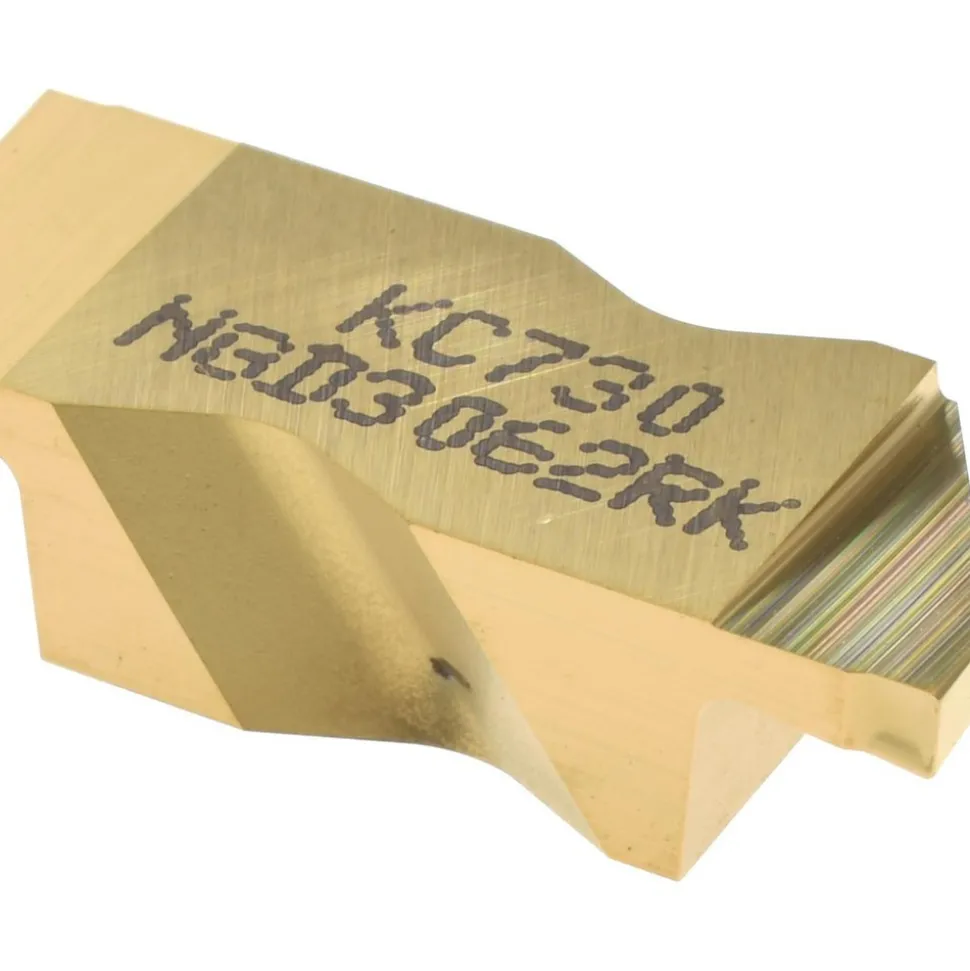

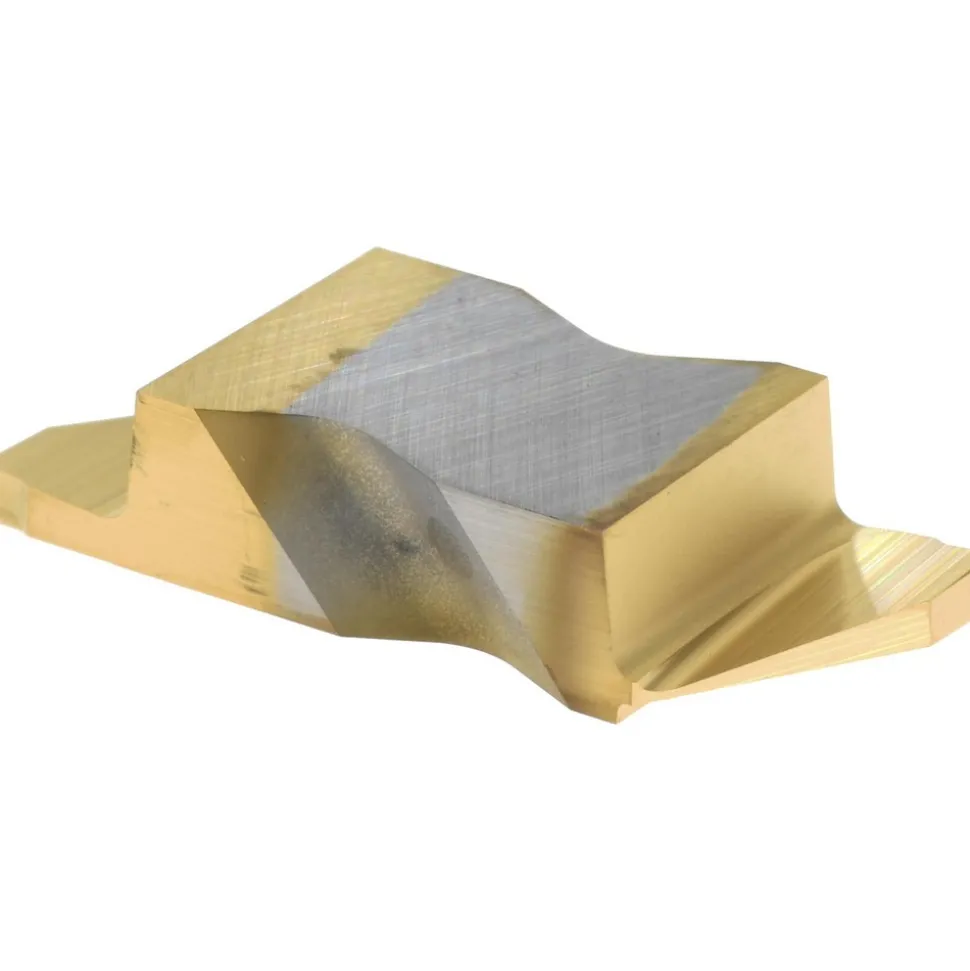

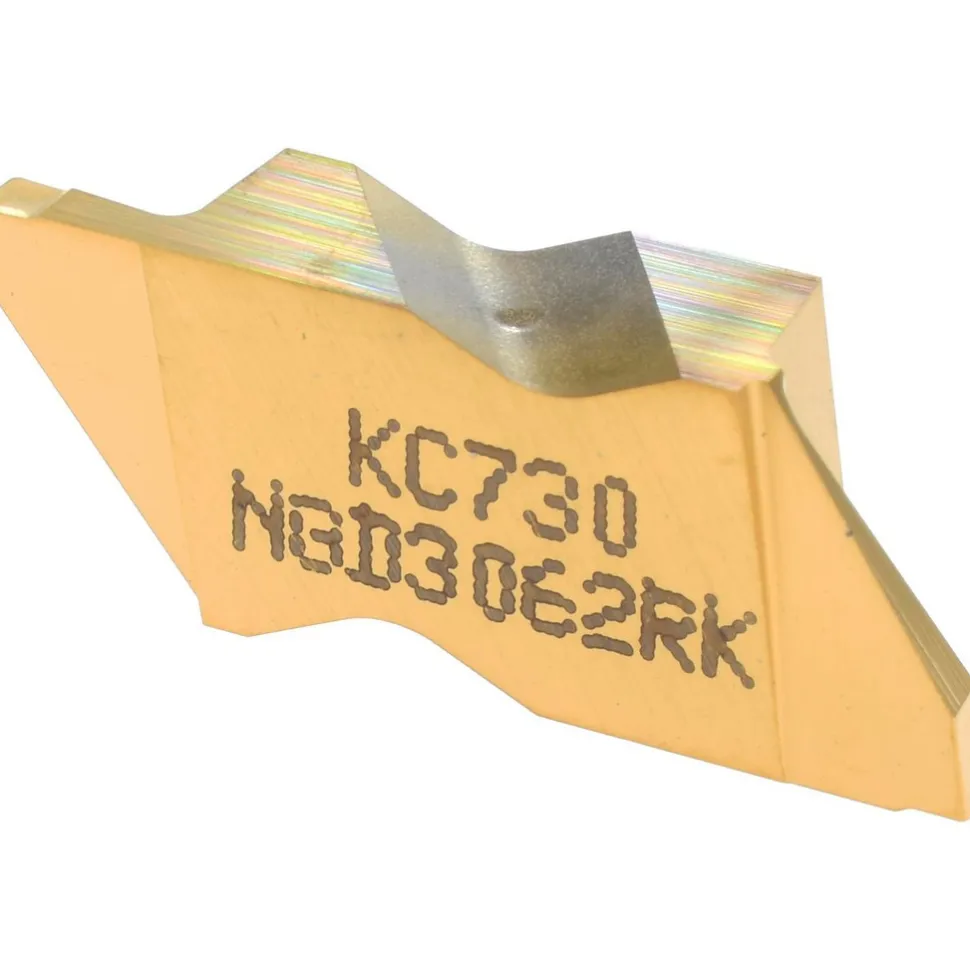

Grooving Insert: NGD3062RK KC730, Carbide
23,99 $
Specifications
| Insert Style: NGD | Cutting Width (Decimal Inch): 0.0622 |
| Cutting Width (mm): 1.58 | Insert Hand: Right Hand |
| Maximum Depth of Cut (Decimal Inch): 0.1252 | Maximum Depth of Cut (mm): 3.18 |
| Insert Material: Carbide | Manufacturer Grade: KC730 |
| Full Radius: No | Corner Radius (Decimal Inch): 0.0075 |
| Corner Radius (mm): 0.19 | Rake: Positive |
| Measurement Type: Metric | Insert Size: 3062 |
| Material Grade: C3; C4; C2 | Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500 |
| Maximum Depth Of Cut Range (mm): 3.00 to 4.00 | Lead Angle: 3.000 |
| Multi-use Tool: No | Series: Top Notch |
| Coating Process: PVD | Rake Angle: 10.000 |
| UNSPSC Code: 23242105 | Chip Breaker: K |
| MSC/Manufacturer Number: NGD3062R/LK | Insert Height (Decimal Inch): 0.3440 |
| Included Angle Degree: 55 | Coating/Finish: TiN |
| Country of Origin: UNITED STATES | |
| Insert Style: NGD | |
| Cutting Width (Decimal Inch): 0.0622 | |
| Cutting Width (mm): 1.58 | |
| Insert Hand: Right Hand | |
| Maximum Depth of Cut (Decimal Inch): 0.1252 | |
| Maximum Depth of Cut (mm): 3.18 | |
| Insert Material: Carbide | |
| Manufacturer Grade: KC730 | |
| Full Radius: No | |
| Corner Radius (Decimal Inch): 0.0075 | |
| Corner Radius (mm): 0.19 | |
| Rake: Positive | |
| Measurement Type: Metric | |
| Insert Size: 3062 | |
| Material Grade: C3; C4; C2 | |
| Maximum Depth Of Cut Range (Decimal Inch): 0.1000 to 0.1500 | |
| Maximum Depth Of Cut Range (mm): 3.00 to 4.00 | |
| Lead Angle: 3.000 | |
| Multi-use Tool: No | |
| Series: Top Notch | |
| Coating Process: PVD | |
| Rake Angle: 10.000 | |
| UNSPSC Code: 23242105 | |
| Chip Breaker: K | |
| MSC/Manufacturer Number: NGD3062R/LK | |
| Insert Height (Decimal Inch): 0.3440 | |
| Included Angle Degree: 55 | |
| Coating/Finish: TiN | |
| Country of Origin: UNITED STATES |
| MSC# | 08445488 |
| Mfr# | 1114323 |
| Big Book# | 907 |
