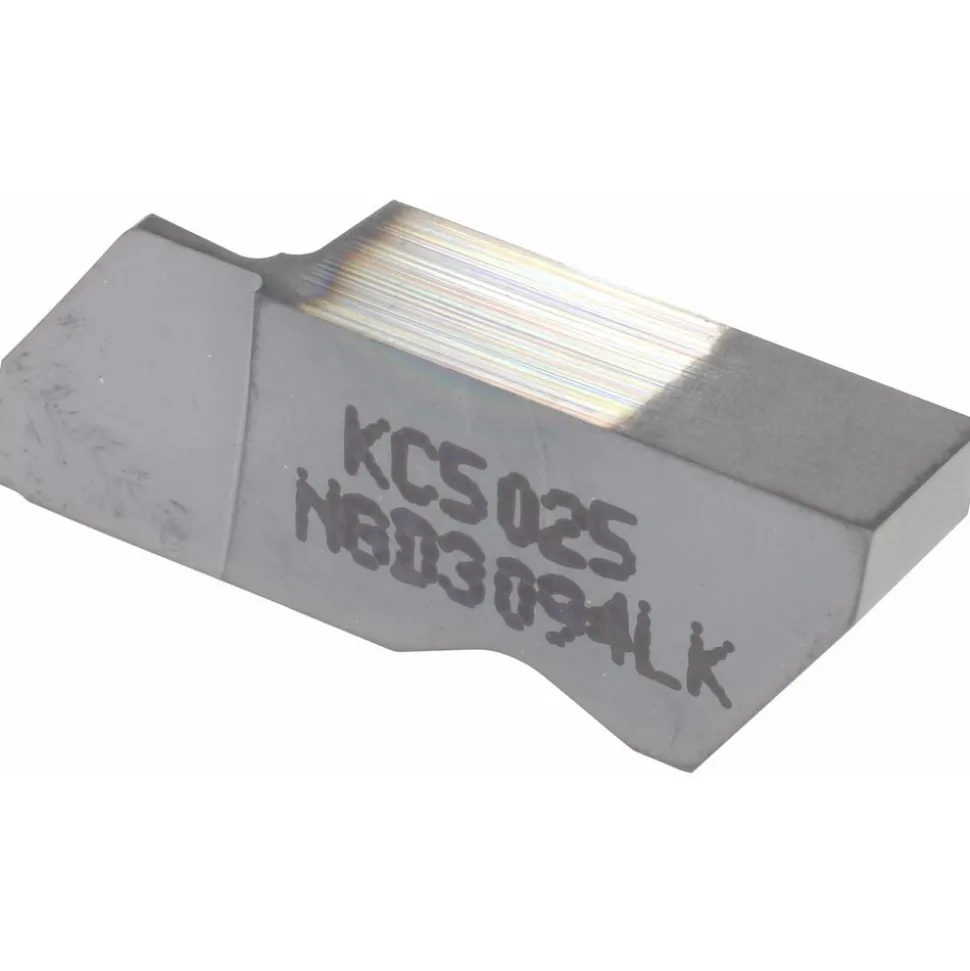

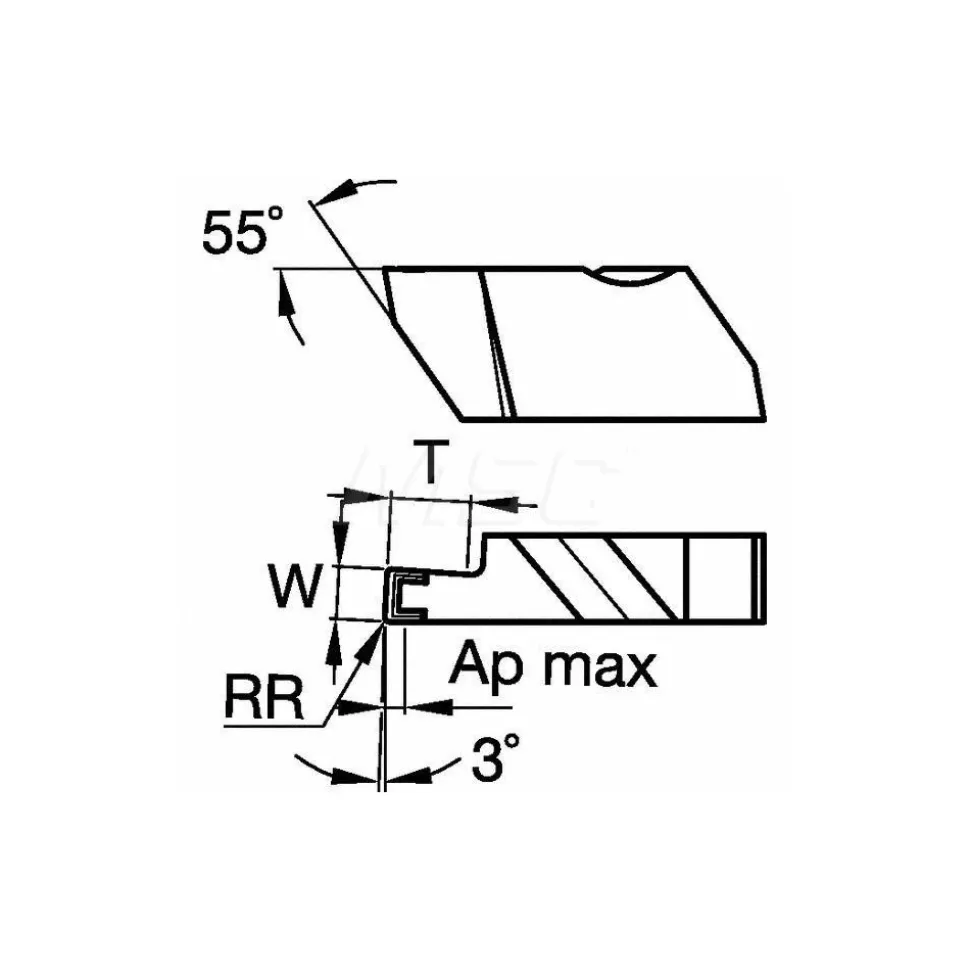

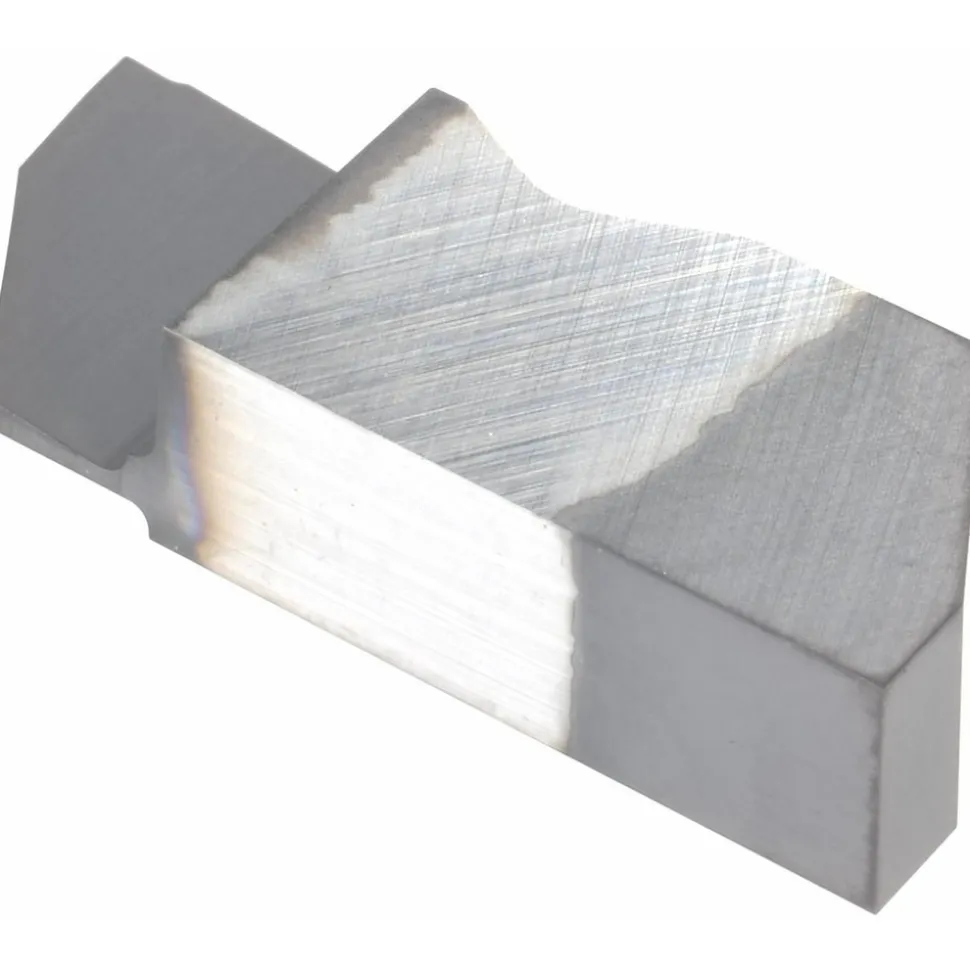

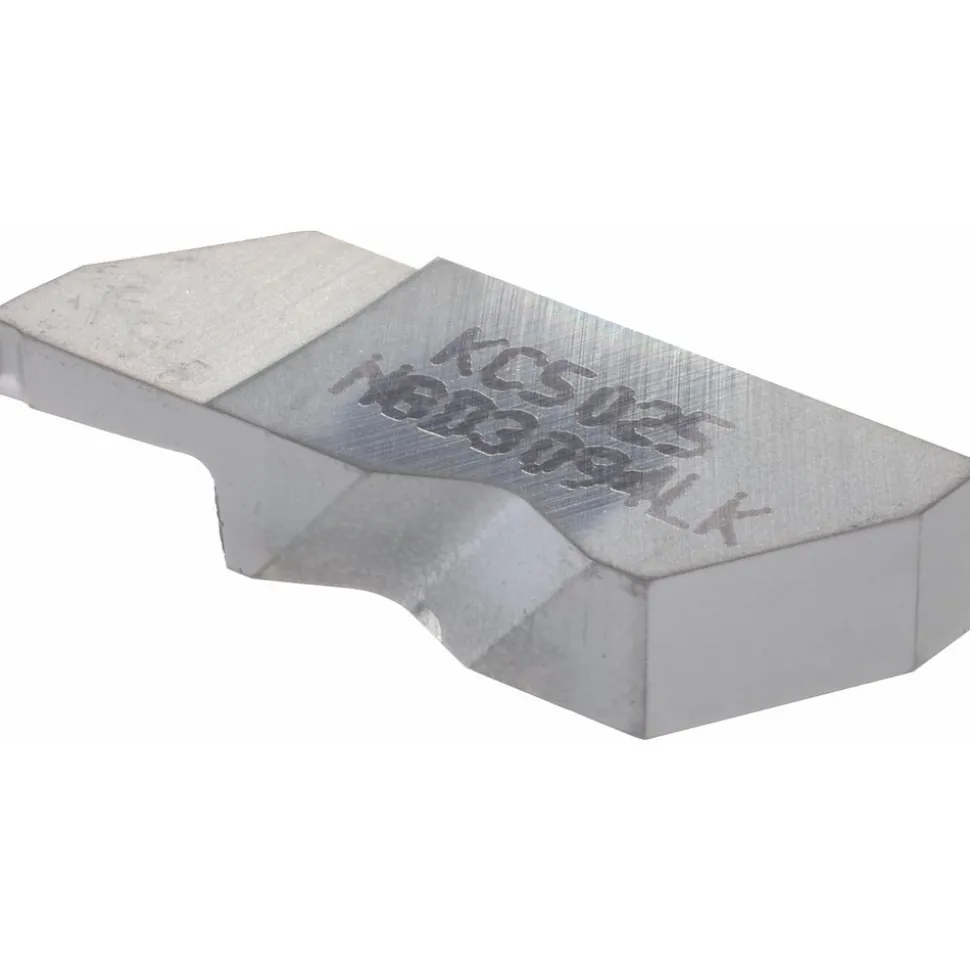

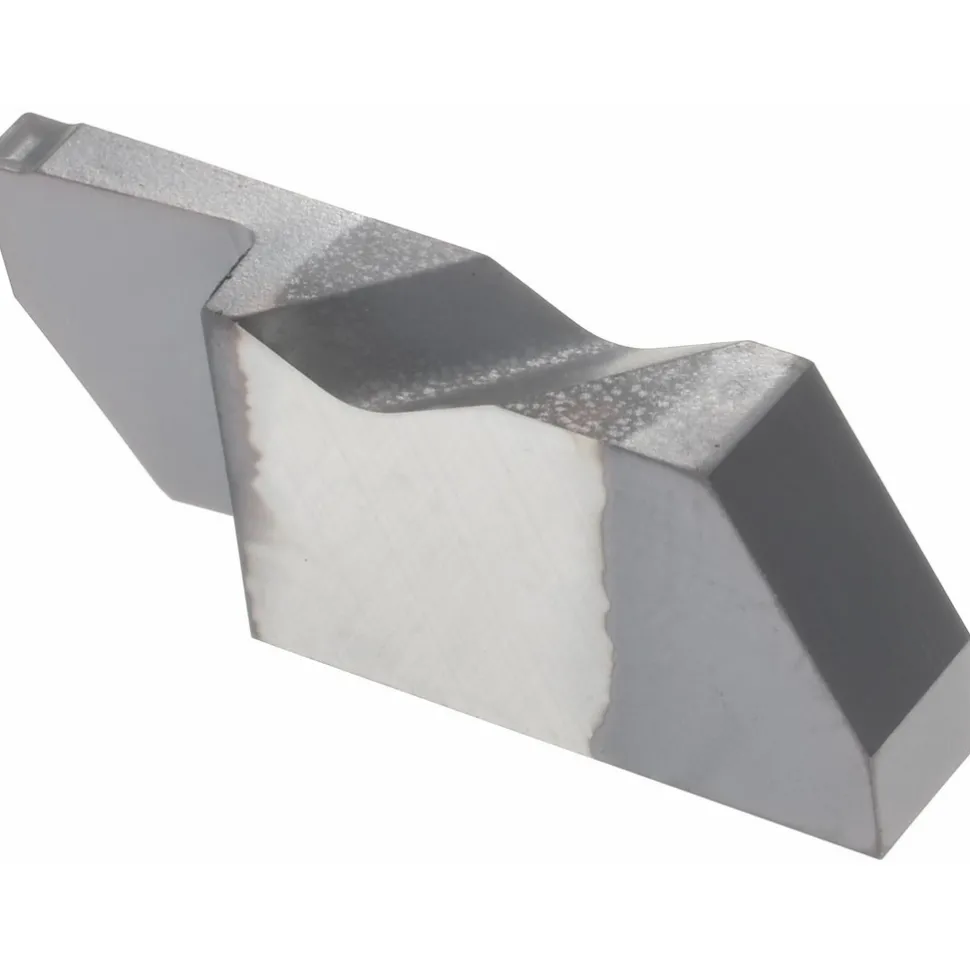

Grooving Insert: NGD3094LK KC5025, Carbide

25,89 $

Specifications

Insert Style: NGD	Cutting Width (Decimal Inch): 0.0941
Cutting Width (mm): 2.39	Insert Hand: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.2500	Maximum Depth of Cut (mm): 6.35
Insert Material: Carbide	Manufacturer Grade: KC5025
Full Radius: No	Corner Radius (Decimal Inch): 0.0075
Corner Radius (mm): 0.19	Rake: Positive
Measurement Type: Metric	Insert Size: 3094
Material Grade: C6; C2	Maximum Depth Of Cut Range (Decimal Inch): 0.2000 to 0.3000
Maximum Depth Of Cut Range (mm): 5.00 to 10.00	Lead Angle: 3.000
Multi-use Tool: No	Series: Top Notch
Coating Process: PVD	Rake Angle: 10.000
UNSPSC Code: 23242105	Chip Breaker: K
Included Angle Degree: 55	Coating/Finish: TiAlN
Country of Origin: UNITED STATES
Insert Style: NGD
Cutting Width (Decimal Inch): 0.0941
Cutting Width (mm): 2.39
Insert Hand: Left Hand
Maximum Depth of Cut (Decimal Inch): 0.2500
Maximum Depth of Cut (mm): 6.35
Insert Material: Carbide
Manufacturer Grade: KC5025
Full Radius: No
Corner Radius (Decimal Inch): 0.0075
Corner Radius (mm): 0.19
Rake: Positive
Measurement Type: Metric
Insert Size: 3094
Material Grade: C6; C2
Maximum Depth Of Cut Range (Decimal Inch): 0.2000 to 0.3000
Maximum Depth Of Cut Range (mm): 5.00 to 10.00
Lead Angle: 3.000
Multi-use Tool: No
Series: Top Notch
Coating Process: PVD
Rake Angle: 10.000
UNSPSC Code: 23242105
Chip Breaker: K
Included Angle Degree: 55
Coating/Finish: TiAlN
Country of Origin: UNITED STATES
