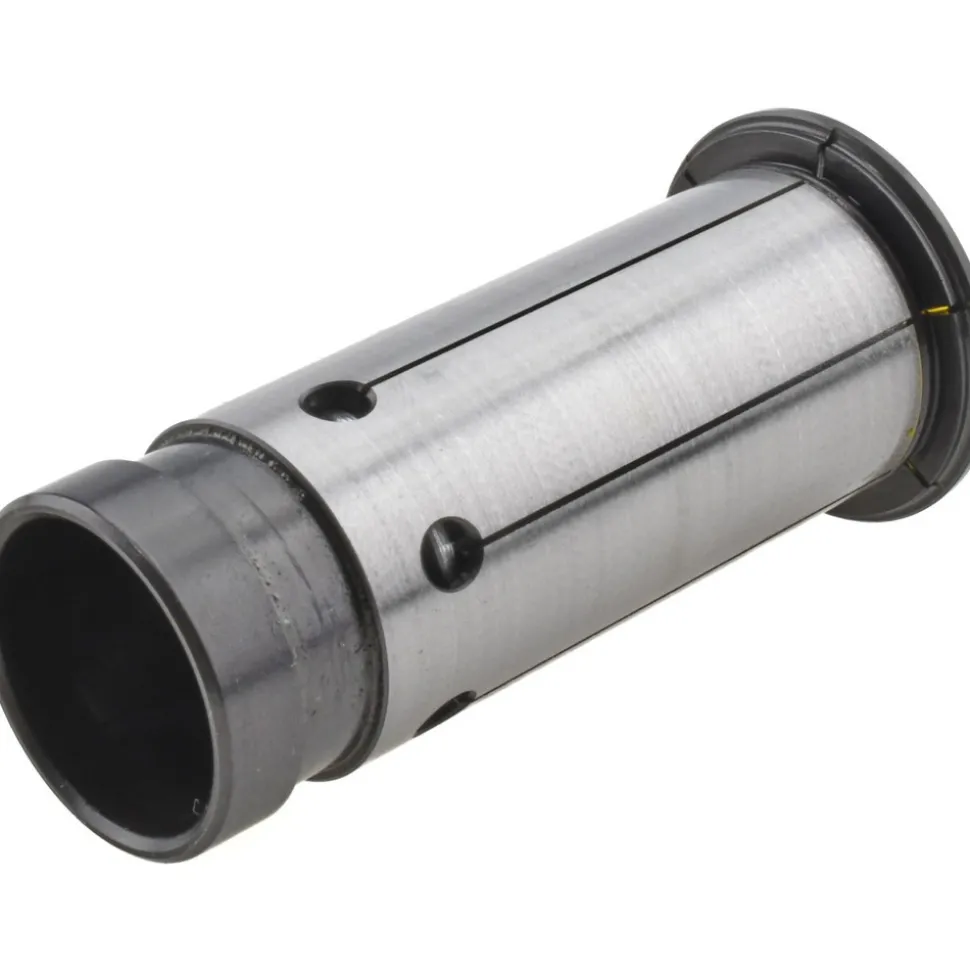

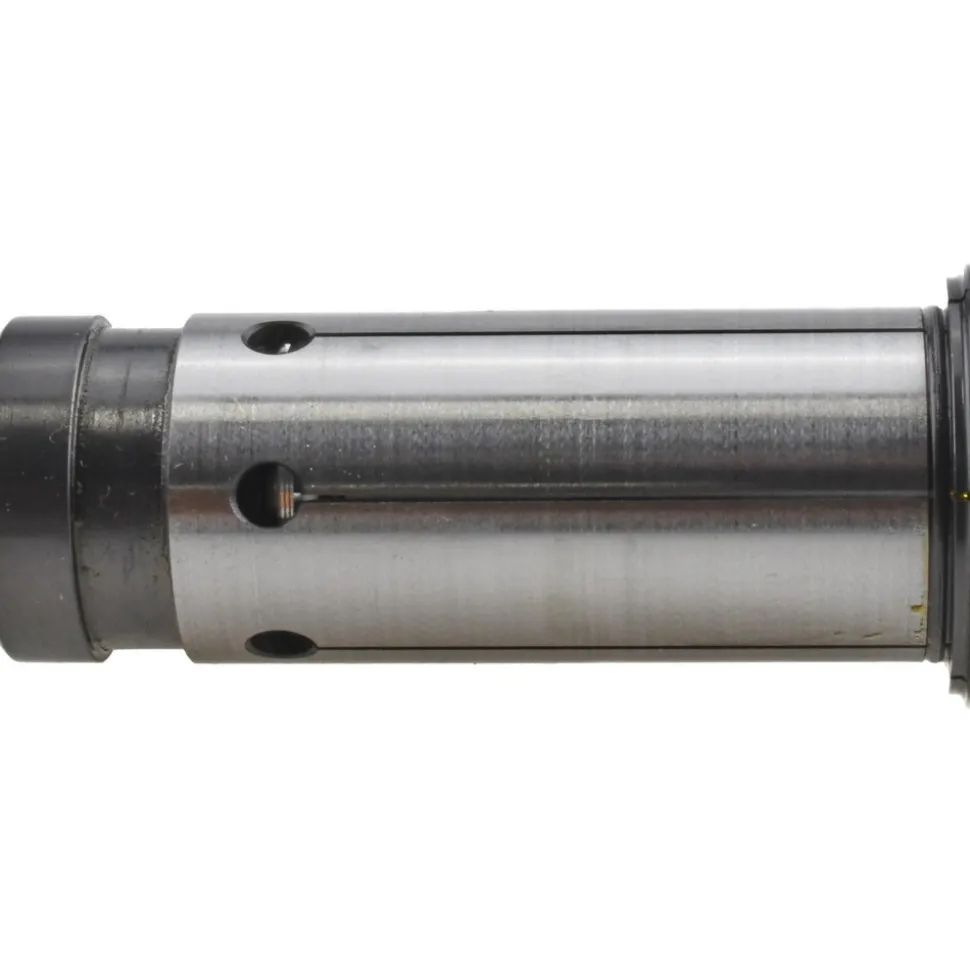

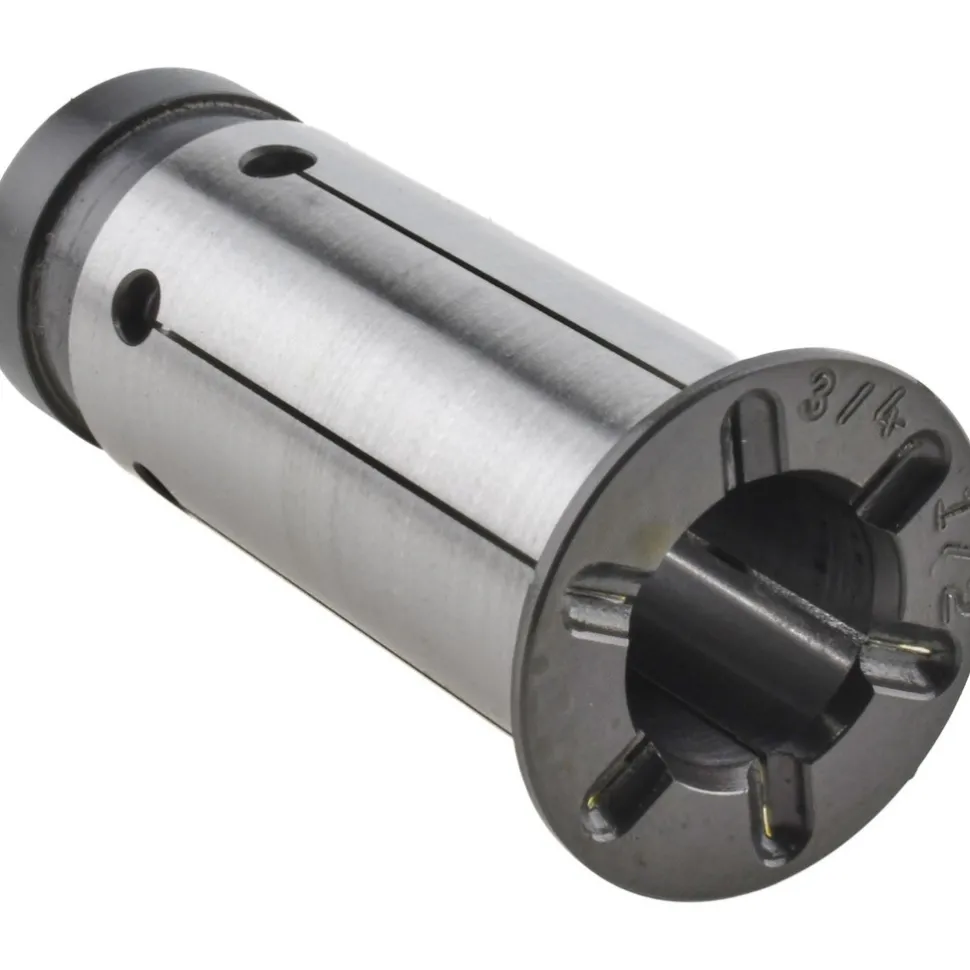

Hydraulic Chuck Sleeve: 1/2" ID, 3/4" OD, 0.9449" Head Dia

Hydraulic Chuck Sleeve: 1/2″ ID, 3/4″ OD, 0.9449″ Head Dia

Original price was: 125,00 $.Current price is: 83,89 $.

SKU: SKUYAr6XaM9JL Categories: Collets, Closers & Accessories, Shop All Products, Tool Holding Tag: Schunk Brand: Schunk

Description
Reviews (0)

Specifications

Inside Diameter (Decimal Inch): 0.5000	Inside Diameter (mm): 12.70
Inside Diameter (Inch): 1/2	Outside Diameter (Decimal Inch): 0.7500
Outside Diameter (Inch): 3/4	Outside Diameter (mm): 19.05
Head Diameter (Decimal Inch): 0.9449	Head Diameter (mm): 24.00
Through Coolant: No	Sleeve Type: Slotted
Material: Steel	Length Under Head (Decimal Inch): 1.9882
Length Under Head (mm): 50.50	UNSPSC Code: 27112800
Product Service Code: 5136	Country of Origin: VARIOUS
Inside Diameter (Decimal Inch): 0.5000
Inside Diameter (mm): 12.70
Inside Diameter (Inch): 1/2
Outside Diameter (Decimal Inch): 0.7500
Outside Diameter (Inch): 3/4
Outside Diameter (mm): 19.05
Head Diameter (Decimal Inch): 0.9449
Head Diameter (mm): 24.00
Through Coolant: No
Sleeve Type: Slotted
Material: Steel
Length Under Head (Decimal Inch): 1.9882
Length Under Head (mm): 50.50
UNSPSC Code: 27112800
Product Service Code: 5136
Country of Origin: VARIOUS
