Sale!

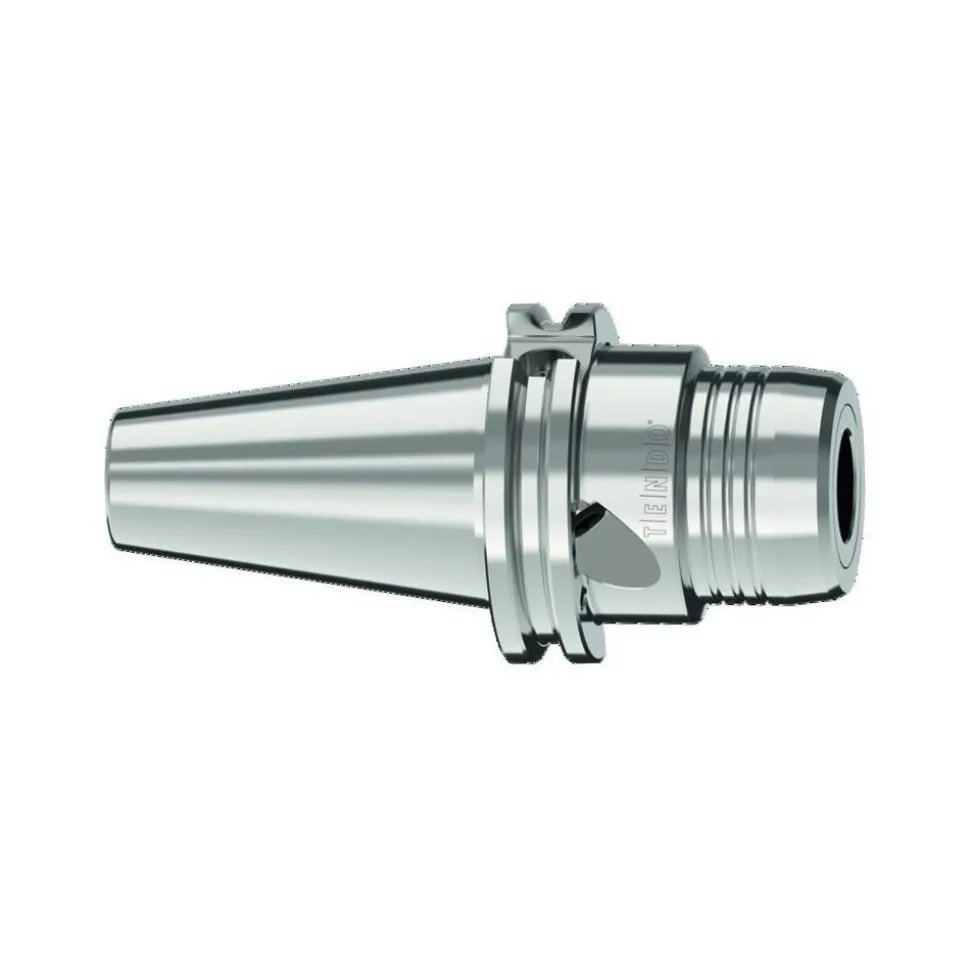

Hydraulic Tool Chuck: CAT40 Taper Shank, 3/4″ Hole

Original price was: 300,00 $.Current price is: 134,99 $.

Specifications

Shank Type: Taper	Taper Size: CAT40
Hole Diameter (Inch): 3/4	Hole Diameter (mm): 19.05
Hole Diameter (Decimal Inch): 0.7500	Shank Diameter (Decimal Inch): 1.7500
Shank Diameter (mm): 44.45	Shank Diameter (Inch): 1-3/4
Nose Diameter: 1-1/2	Nose Diameter (Mm) ( – 2 Decimals): 38.00
Projection (mm): 63.50	Projection: 2-1/2
Clamping Depth (mm): 51.00	Clamping Depth (Decimal Inch): 2.0079
Balanced To Rpm: 25000	TIR (Decimal Inch): 0.000118
TIR (mm): 0.0030	Through Coolant: Yes
Overall Length (Decimal Inch): 4.3750	Overall Length (mm): 111.00
Nose Diameter (Decimal Inch – 4 Decimals): 1.4961	Projection (Decimal Inch): 2.5000
UNSPSC Code: 27112800	Country of Origin: Germany
Shank Type: Taper
Taper Size: CAT40
Hole Diameter (Inch): 3/4
Hole Diameter (mm): 19.05
Hole Diameter (Decimal Inch): 0.7500
Shank Diameter (Decimal Inch): 1.7500
Shank Diameter (mm): 44.45
Shank Diameter (Inch): 1-3/4
Nose Diameter: 1-1/2
Nose Diameter (Mm) ( – 2 Decimals): 38.00
Projection (mm): 63.50
Projection: 2-1/2
Clamping Depth (mm): 51.00
Clamping Depth (Decimal Inch): 2.0079
Balanced To Rpm: 25000
TIR (Decimal Inch): 0.000118
TIR (mm): 0.0030
Through Coolant: Yes
Overall Length (Decimal Inch): 4.3750
Overall Length (mm): 111.00
Nose Diameter (Decimal Inch – 4 Decimals): 1.4961
Projection (Decimal Inch): 2.5000
UNSPSC Code: 27112800
Country of Origin: Germany
