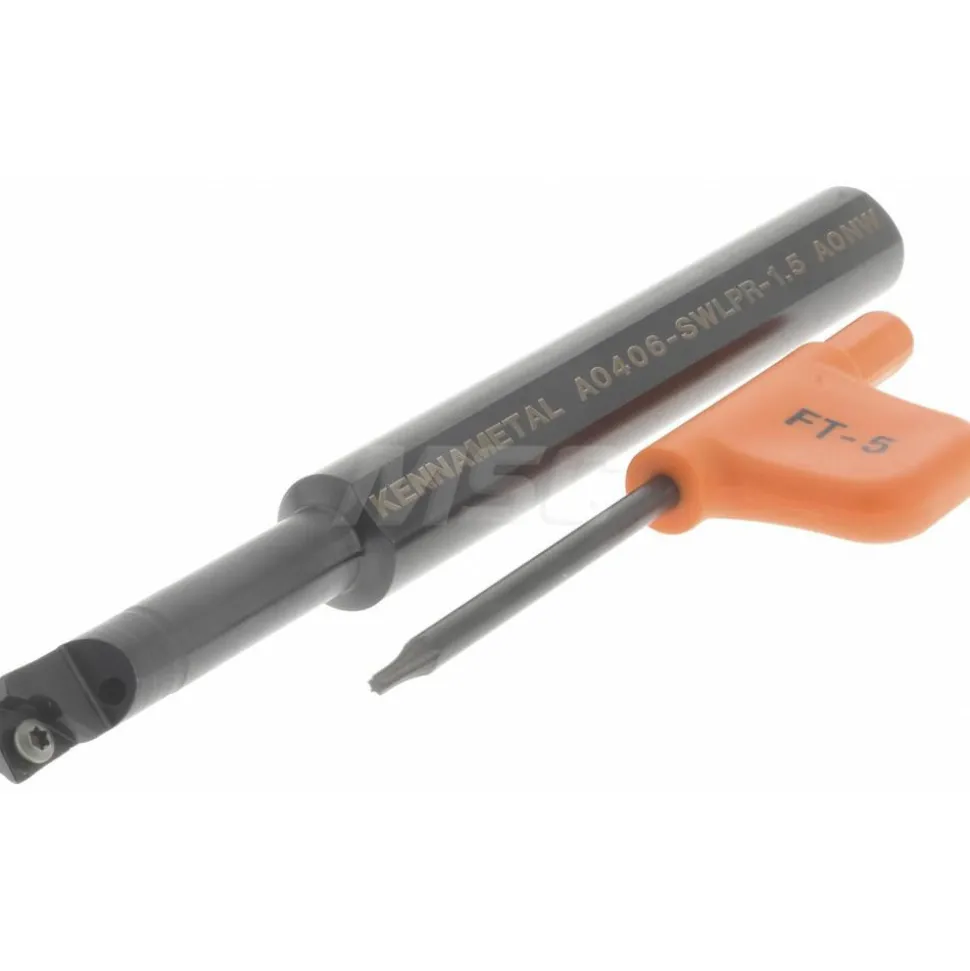

Indexable Boring Bar: A0406SWLPR15, 8.15 mm Min Bore, Right Hand, 9.53 mm Shank Dia, -5.000 deg Lead Angle, Steel
118,99 $
Specifications
| Minimum Bore Diameter (mm): 8.15 | Minimum Bore Diameter (Decimal Inch): 0.3210 |
| Maximum Bore Depth (Decimal Inch): 1.2500 | Toolholder Style: A-SWLP |
| Tool Material: Steel | Insert Compatibility: WP.. |
| Shank Diameter (mm): 9.53 | Shank Diameter (Inch): 3/8 |
| Hand of Holder: Right Hand | Overall Length (Decimal Inch): 4.0000 |
| Overall Length (mm): 101.60 | Insert Holding Method: Screw |
| Rake: Neutral | Rake Angle: 0.000 |
| Lead Angle: -5.000 | Insert Inscribed Circle (Inch): 3/16 |
| Multi-use Tool: No | Center to Cutting Edge (Decimal Inch): 0.1560 |
| UNSPSC Code: 23241601 | Insert Thickness (Inch): 5/64 |
| Coolant Hole Diameter (Decimal Inch): 0.0780 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Minimum Bore Diameter (mm): 8.15 | |
| Minimum Bore Diameter (Decimal Inch): 0.3210 | |
| Maximum Bore Depth (Decimal Inch): 1.2500 | |
| Toolholder Style: A-SWLP | |
| Tool Material: Steel | |
| Insert Compatibility: WP.. | |
| Shank Diameter (mm): 9.53 | |
| Shank Diameter (Inch): 3/8 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 4.0000 | |
| Overall Length (mm): 101.60 | |
| Insert Holding Method: Screw | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: -5.000 | |
| Insert Inscribed Circle (Inch): 3/16 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.1560 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 5/64 | |
| Coolant Hole Diameter (Decimal Inch): 0.0780 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 01584820 |
| Mfr# | 1094705 |
| Big Book# | 854 |
