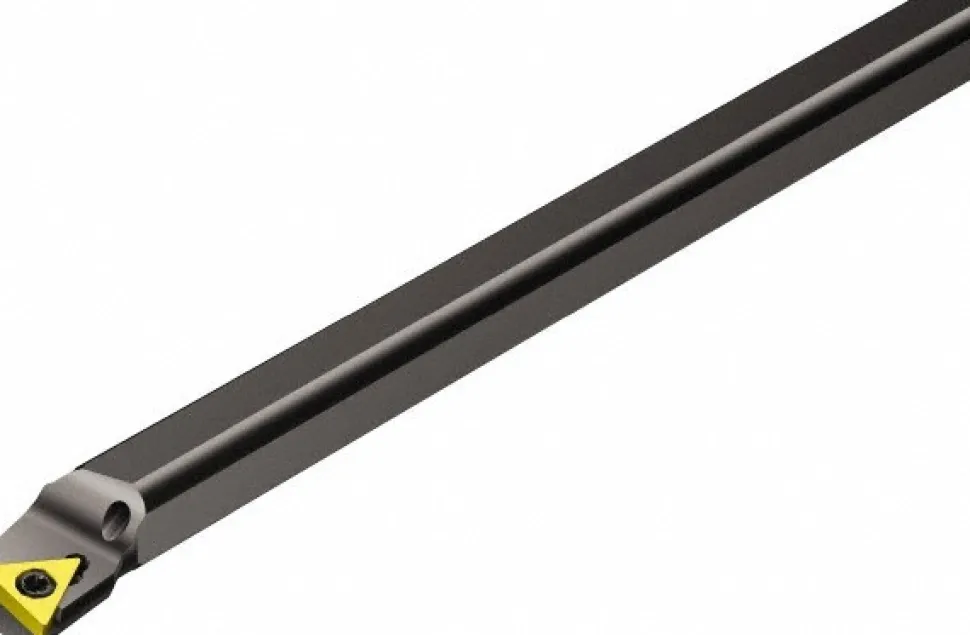

Indexable Boring Bar: A04F-STFCR1.2, 8.70 mm Min Bore, Right Hand, 6.35 mm Shank Dia, 0.000 deg Lead Angle, Steel
Original price was: 274,00 $.138,89 $Current price is: 138,89 $.
Specifications
| Minimum Bore Diameter (mm): 8.70 | Minimum Bore Diameter (Decimal Inch): 0.3425 |
| Toolholder Style: A-STFC | Tool Material: Steel |
| Insert Compatibility: TCMT 1.21.20 | Shank Diameter (mm): 6.35 |
| Shank Diameter (Inch): 1/4 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 3.2500 | Overall Length (mm): 82.55 |
| Overall Length (Inch): 3-1/4 | Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 0.3425 |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 0.3425 | Insert Holding Method: Screw Clamping |
| Rake: Neutral | Rake Angle: 0.000 |
| Lead Angle: 0.000 | Series: CoroTurn 107 |
| Insert Inscribed Circle (Decimal Inch): 0.1563 | Insert Inscribed Circle (mm): 3.97 |
| Multi-use Tool: Yes | Back of Bar to Cutting Edge (Decimal Inch): 3.2500 |
| Back of Bar to Cutting Edge (mm): 82.55 | Center to Cutting Edge (Decimal Inch): 0.1720 |
| Center to Cutting Edge (mm): 4.37 | Number of Inserts Used on Toolholder: 1 |
| Neck Diameter (Decimal Inch): 0.2500 | UNSPSC Code: 23241601 |
| Neck Diameter (Inch): 1/4 | Insert Thickness (Decimal Inch): 0.0750 |
| Manufacturers Catalog Number: A04F-STFCR 1.2 | Coolant Through: Yes |
| Country of Origin: India | |
| Minimum Bore Diameter (mm): 8.70 | |
| Minimum Bore Diameter (Decimal Inch): 0.3425 | |
| Toolholder Style: A-STFC | |
| Tool Material: Steel | |
| Insert Compatibility: TCMT 1.21.20 | |
| Shank Diameter (mm): 6.35 | |
| Shank Diameter (Inch): 1/4 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 3.2500 | |
| Overall Length (mm): 82.55 | |
| Overall Length (Inch): 3-1/4 | |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 0.3425 | |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 0.3425 | |
| Insert Holding Method: Screw Clamping | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: 0.000 | |
| Series: CoroTurn 107 | |
| Insert Inscribed Circle (Decimal Inch): 0.1563 | |
| Insert Inscribed Circle (mm): 3.97 | |
| Multi-use Tool: Yes | |
| Back of Bar to Cutting Edge (Decimal Inch): 3.2500 | |
| Back of Bar to Cutting Edge (mm): 82.55 | |
| Center to Cutting Edge (Decimal Inch): 0.1720 | |
| Center to Cutting Edge (mm): 4.37 | |
| Number of Inserts Used on Toolholder: 1 | |
| Neck Diameter (Decimal Inch): 0.2500 | |
| UNSPSC Code: 23241601 | |
| Neck Diameter (Inch): 1/4 | |
| Insert Thickness (Decimal Inch): 0.0750 | |
| Manufacturers Catalog Number: A04F-STFCR 1.2 | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 52081551 |
| Mfr# | 5721287 |
