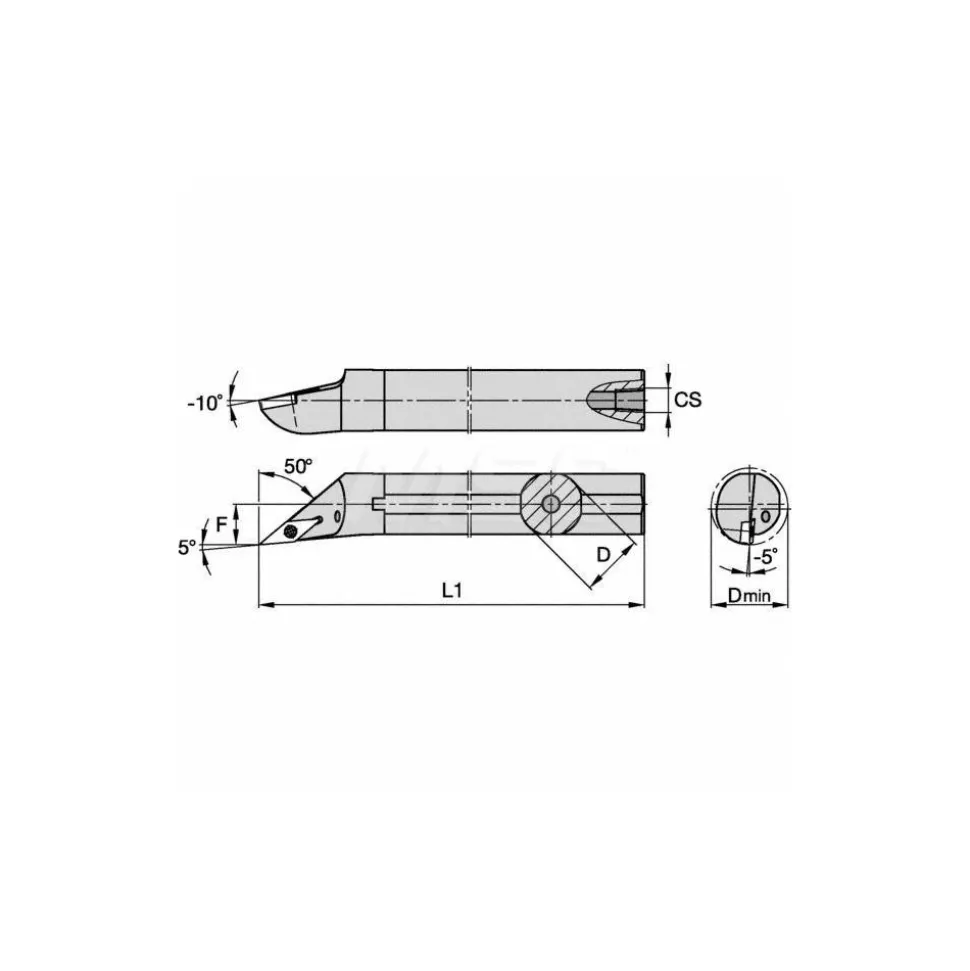

Indexable Boring Bar: A12SSVMBR3E, 32.66 mm Min Bore, Right Hand, 19.05 mm Shank Dia, -3.000 deg Lead Angle, Steel
128,99 $
Specifications
| Minimum Bore Diameter (mm): 32.66 | Minimum Bore Diameter (Decimal Inch): 1.2860 |
| Toolholder Style: A-SVMB | Tool Material: Steel |
| Insert Compatibility: VB.. | Shank Diameter (mm): 19.05 |
| Shank Diameter (Inch): 3/4 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 10.0000 | Overall Length (mm): 254.00 |
| Insert Holding Method: Screw | Rake: Negative |
| Rake Angle: 10.000 | Lead Angle: -3.000 |
| Insert Inscribed Circle (Inch): 3/8 | Multi-use Tool: No |
| Center to Cutting Edge (Decimal Inch): 0.5000 | Coolant Hole Thread Size (Inch): 1/8-27 NPT |
| UNSPSC Code: 23241601 | Insert Thickness (Inch): 3/16 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Minimum Bore Diameter (mm): 32.66 | |
| Minimum Bore Diameter (Decimal Inch): 1.2860 | |
| Toolholder Style: A-SVMB | |
| Tool Material: Steel | |
| Insert Compatibility: VB.. | |
| Shank Diameter (mm): 19.05 | |
| Shank Diameter (Inch): 3/4 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 10.0000 | |
| Overall Length (mm): 254.00 | |
| Insert Holding Method: Screw | |
| Rake: Negative | |
| Rake Angle: 10.000 | |
| Lead Angle: -3.000 | |
| Insert Inscribed Circle (Inch): 3/8 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.5000 | |
| Coolant Hole Thread Size (Inch): 1/8-27 NPT | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 3/16 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 86461563 |
| Mfr# | 1236007 |
| Big Book# | 853 |
