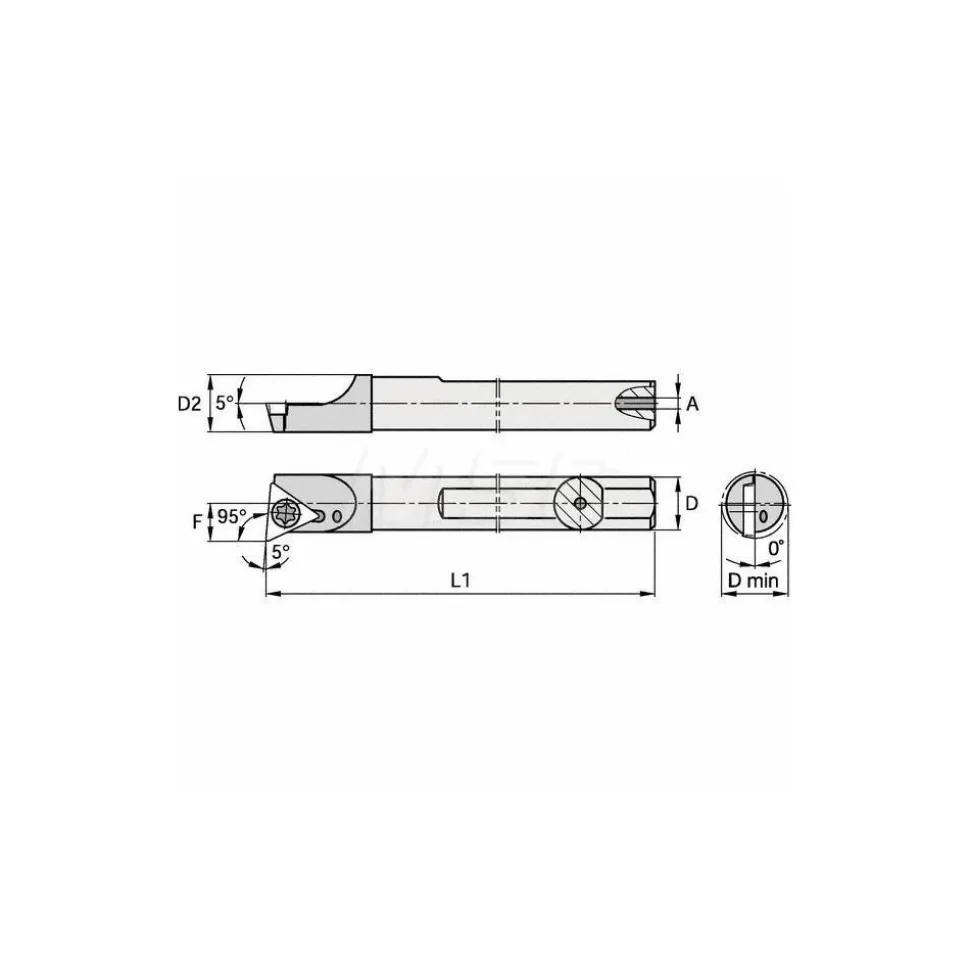

Indexable Boring Bar: E03HSTLDR128, 0.2750″ Min Bore, Right Hand, 5.000 deg Lead Angle, Solid Carbide (Shank) & Steel (Head)
136,99 $
Specifications
| Minimum Bore Diameter (Decimal Inch): 0.2750 | Maximum Bore Depth (Inch): 1-7/8 |
| Toolholder Style: FCBI | Tool Material: Steel (Head); Solid Carbide (Shank) |
| Insert Compatibility: TD.. | Shank Diameter (Inch): 3/16 |
| Hand of Holder: Right Hand | Overall Length (Decimal Inch): 4.0000 |
| Overall Length (Inch): 4 | Insert Holding Method: Screw |
| Rake: Positive | Rake Angle: 5.000 |
| Lead Angle: 5.000 | Series: F |
| Insert Inscribed Circle (Decimal Inch): 0.1600 | Multi-use Tool: No |
| Center to Cutting Edge (Decimal Inch): 0.1260 | UNSPSC Code: 23241601 |
| Insert Thickness (Decimal Inch): 0.0470 | Coolant Hole Diameter (Decimal Inch): 0.0400 |
| Manufacturers Catalog Number: E03HSTLDR128 | Coolant Through: Yes |
| Country of Origin: UNITED STATES | |
| Minimum Bore Diameter (Decimal Inch): 0.2750 | |
| Maximum Bore Depth (Inch): 1-7/8 | |
| Toolholder Style: FCBI | |
| Tool Material: Steel (Head); Solid Carbide (Shank) | |
| Insert Compatibility: TD.. | |
| Shank Diameter (Inch): 3/16 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 4.0000 | |
| Overall Length (Inch): 4 | |
| Insert Holding Method: Screw | |
| Rake: Positive | |
| Rake Angle: 5.000 | |
| Lead Angle: 5.000 | |
| Series: F | |
| Insert Inscribed Circle (Decimal Inch): 0.1600 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.1260 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Decimal Inch): 0.0470 | |
| Coolant Hole Diameter (Decimal Inch): 0.0400 | |
| Manufacturers Catalog Number: E03HSTLDR128 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 59869230 |
| Mfr# | 1270944 |
| Big Book# | 858 |
