Indexable Boring Bar: E04H-SWLPR1.2-R, 8.20 mm Min Bore, Right Hand, 6.35 mm Shank Dia, 0.000 deg Lead Angle, Solid Carbide
126,89 $

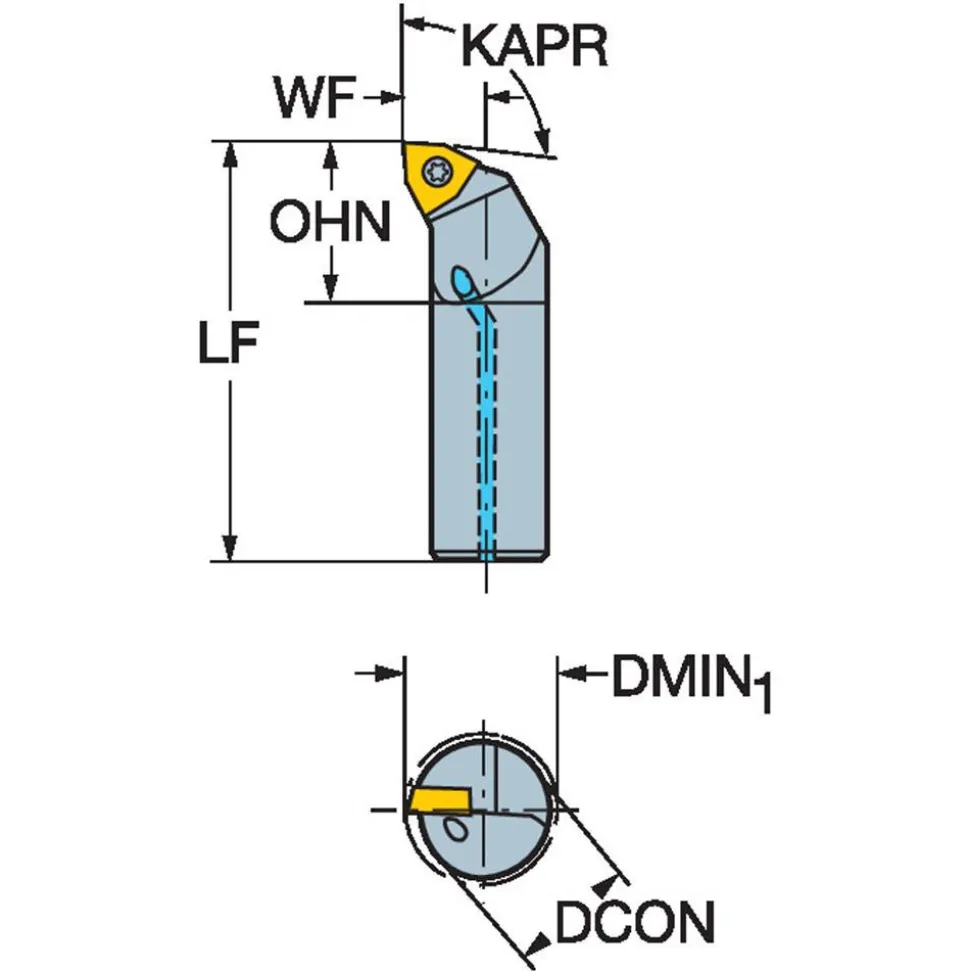

Specifications
| Minimum Bore Diameter (mm): 8.20 | Minimum Bore Diameter (Decimal Inch): 0.3228 |
| Toolholder Style: E-SWLP | Tool Material: Solid Carbide |
| Insert Compatibility: WPMT 1.210 | Shank Diameter (mm): 6.35 |
| Shank Diameter (Inch): 1/4 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 4.0000 | Overall Length (mm): 101.60 |
| Overall Length (Inch): 4 | Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 0.3228 |

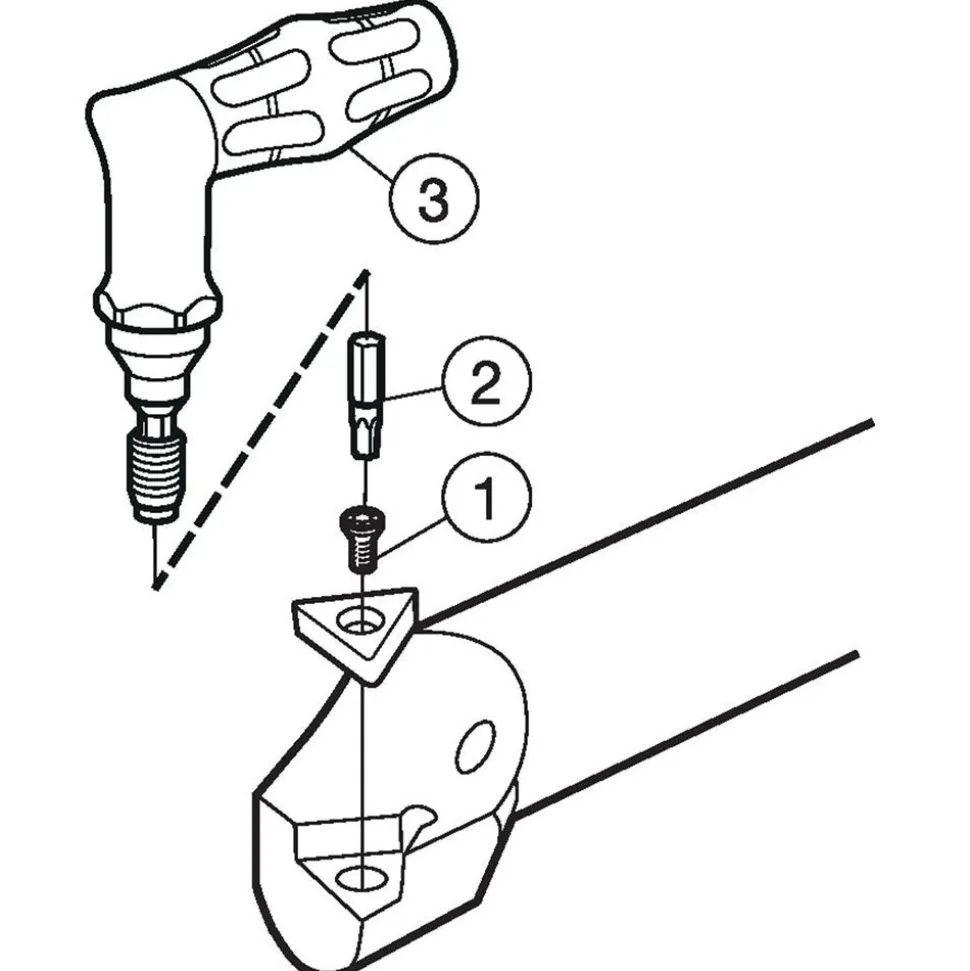

| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 0.3228 | Insert Holding Method: Screw Clamping |
| Rake: Neutral | Rake Angle: 0.000 |
| Lead Angle: 0.000 | Series: CoroTurn 111 |
| Insert Inscribed Circle (Decimal Inch): 0.1500 | Insert Inscribed Circle (mm): 3.81 |
| Multi-use Tool: Yes | Back of Bar to Cutting Edge (Decimal Inch): 4.0000 |
| Back of Bar to Cutting Edge (mm): 101.60 | Center to Cutting Edge (Decimal Inch): 0.1560 |
| Center to Cutting Edge (mm): 3.96 | Number of Inserts Used on Toolholder: 1 |
| Neck Diameter (Decimal Inch): 0.2500 | UNSPSC Code: 23241601 |
| Neck Diameter (Inch): 1/4 | Insert Thickness (Decimal Inch): 0.0625 |
| Insert Thickness (Inch): 1/16 | Manufacturers Catalog Number: E04H-SWLPR 1.2-R |
| Coolant Through: Yes | Country of Origin: India |
| Minimum Bore Diameter (mm): 8.20 | |
| Minimum Bore Diameter (Decimal Inch): 0.3228 | |
| Toolholder Style: E-SWLP | |
| Tool Material: Solid Carbide | |
| Insert Compatibility: WPMT 1.210 | |
| Shank Diameter (mm): 6.35 | |
| Shank Diameter (Inch): 1/4 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 4.0000 | |
| Overall Length (mm): 101.60 | |
| Overall Length (Inch): 4 | |
| Minimum Bore Diameter Using Triangle Insert Cartridge (Decimal Inch): 0.3228 | |
| Minimum Bore Diameter Using Diamond Insert Cartridge (Decimal Inch): 0.3228 | |
| Insert Holding Method: Screw Clamping | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: 0.000 | |
| Series: CoroTurn 111 | |
| Insert Inscribed Circle (Decimal Inch): 0.1500 | |
| Insert Inscribed Circle (mm): 3.81 | |
| Multi-use Tool: Yes | |
| Back of Bar to Cutting Edge (Decimal Inch): 4.0000 | |
| Back of Bar to Cutting Edge (mm): 101.60 | |
| Center to Cutting Edge (Decimal Inch): 0.1560 | |
| Center to Cutting Edge (mm): 3.96 | |
| Number of Inserts Used on Toolholder: 1 | |
| Neck Diameter (Decimal Inch): 0.2500 | |
| UNSPSC Code: 23241601 | |
| Neck Diameter (Inch): 1/4 | |
| Insert Thickness (Decimal Inch): 0.0625 | |
| Insert Thickness (Inch): 1/16 | |
| Manufacturers Catalog Number: E04H-SWLPR 1.2-R | |
| Coolant Through: Yes | |
| Country of Origin: India |
| MSC# | 73789398 |
| Mfr# | 5731626 |
