Sale!

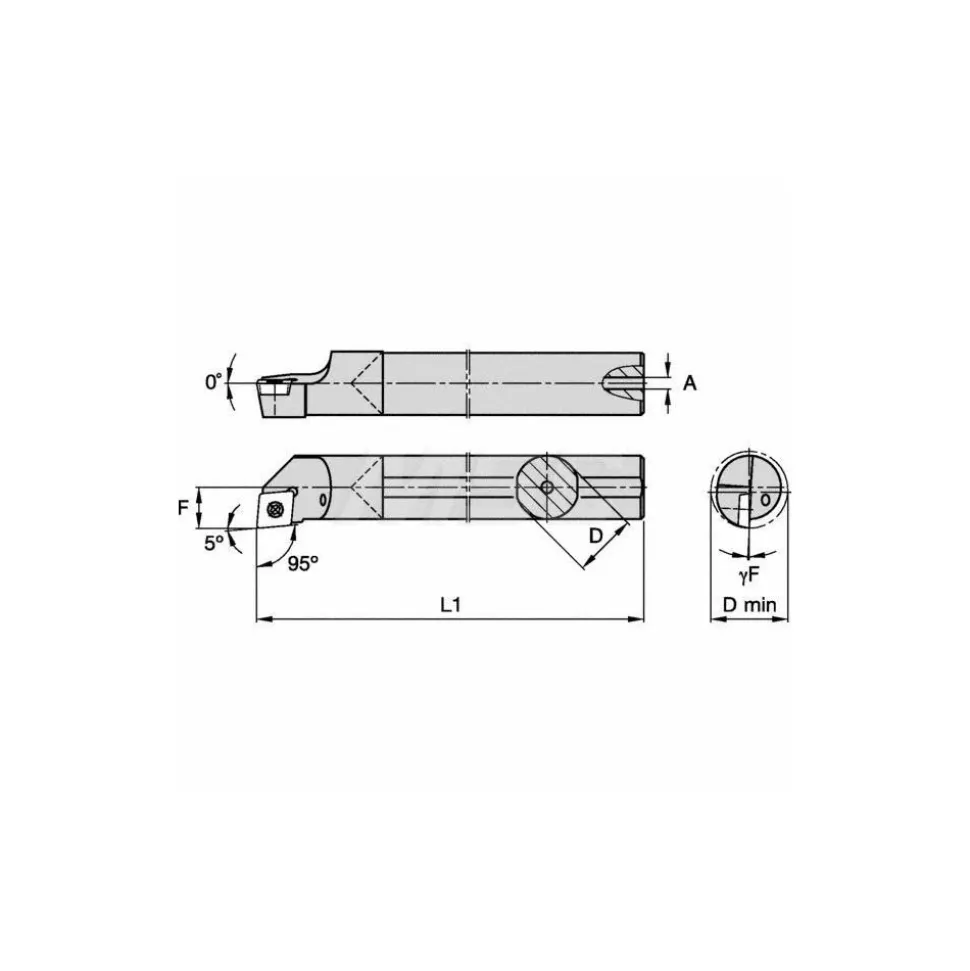

Indexable Boring Bar: E10SCLPR2 KWH, 19.56 mm Min Bore, Right Hand, 15.88 mm Shank Dia, -5.000 deg Lead Angle, Solid Carbide
Original price was: 1 032,00 $.136,99 $Current price is: 136,99 $.
Specifications
| Minimum Bore Diameter (mm): 19.56 | Minimum Bore Diameter (Decimal Inch): 0.7700 |
| Toolholder Style: E-SCLP | Tool Material: Solid Carbide |
| Insert Compatibility: CP.. | Shank Diameter (mm): 15.88 |
| Shank Diameter (Inch): 5/8 | Hand of Holder: Right Hand |
| Overall Length (Decimal Inch): 10.0000 | Overall Length (mm): 254.00 |
| Insert Holding Method: Screw | Rake: Neutral |
| Rake Angle: 0.000 | Lead Angle: -5.000 |
| Insert Inscribed Circle (Inch): 1/4 | Multi-use Tool: No |
| Center to Cutting Edge (Decimal Inch): 0.4060 | UNSPSC Code: 23241601 |
| Insert Thickness (Inch): 3/32 | Coolant Hole Diameter (Decimal Inch): 0.2180 |
| Coolant Through: Yes | Country of Origin: UNITED STATES |
| Minimum Bore Diameter (mm): 19.56 | |
| Minimum Bore Diameter (Decimal Inch): 0.7700 | |
| Toolholder Style: E-SCLP | |
| Tool Material: Solid Carbide | |
| Insert Compatibility: CP.. | |
| Shank Diameter (mm): 15.88 | |
| Shank Diameter (Inch): 5/8 | |
| Hand of Holder: Right Hand | |
| Overall Length (Decimal Inch): 10.0000 | |
| Overall Length (mm): 254.00 | |
| Insert Holding Method: Screw | |
| Rake: Neutral | |
| Rake Angle: 0.000 | |
| Lead Angle: -5.000 | |
| Insert Inscribed Circle (Inch): 1/4 | |
| Multi-use Tool: No | |
| Center to Cutting Edge (Decimal Inch): 0.4060 | |
| UNSPSC Code: 23241601 | |
| Insert Thickness (Inch): 3/32 | |
| Coolant Hole Diameter (Decimal Inch): 0.2180 | |
| Coolant Through: Yes | |
| Country of Origin: UNITED STATES |
| MSC# | 75954701 |
| Mfr# | 1152728 |
| Big Book# | 852 |
