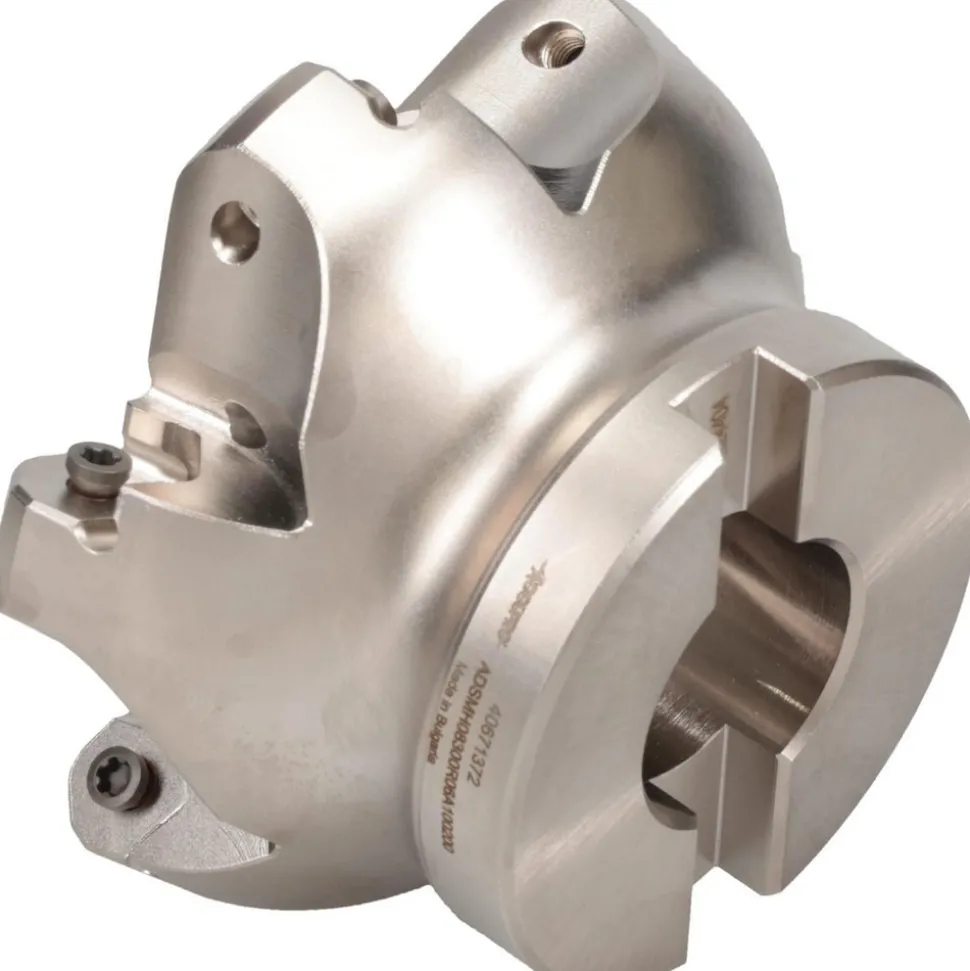

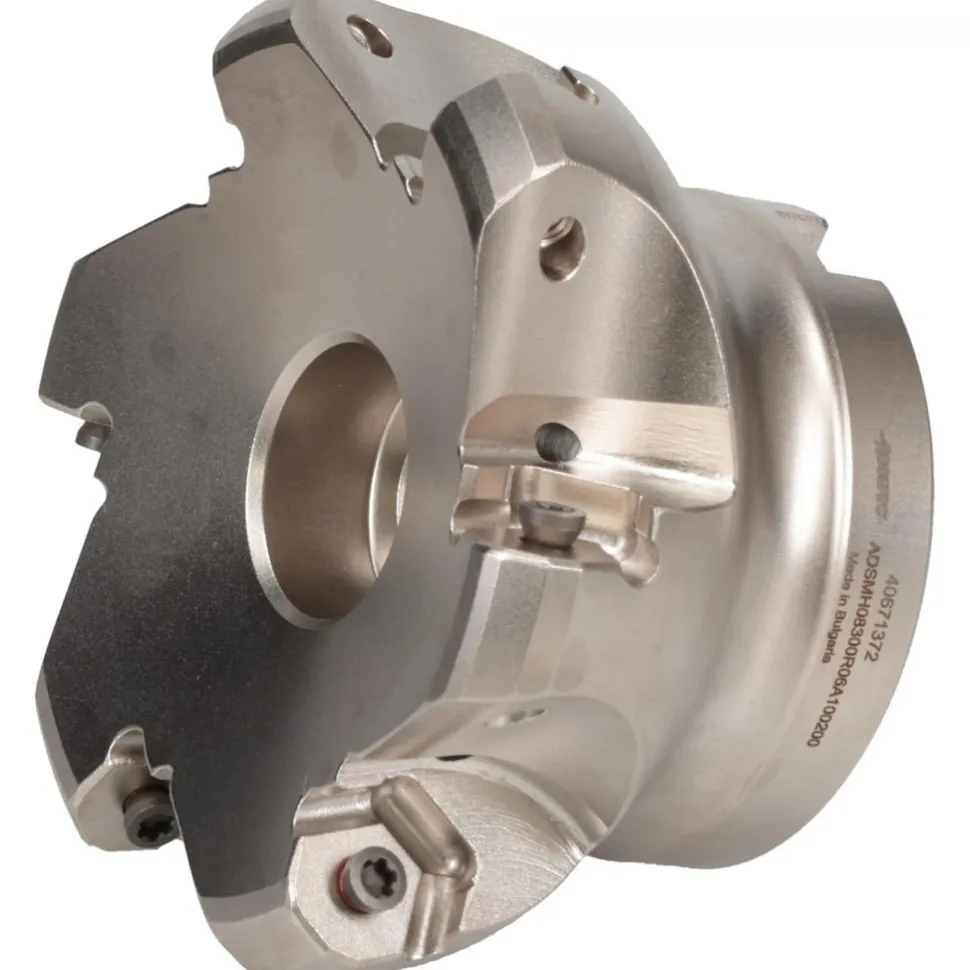

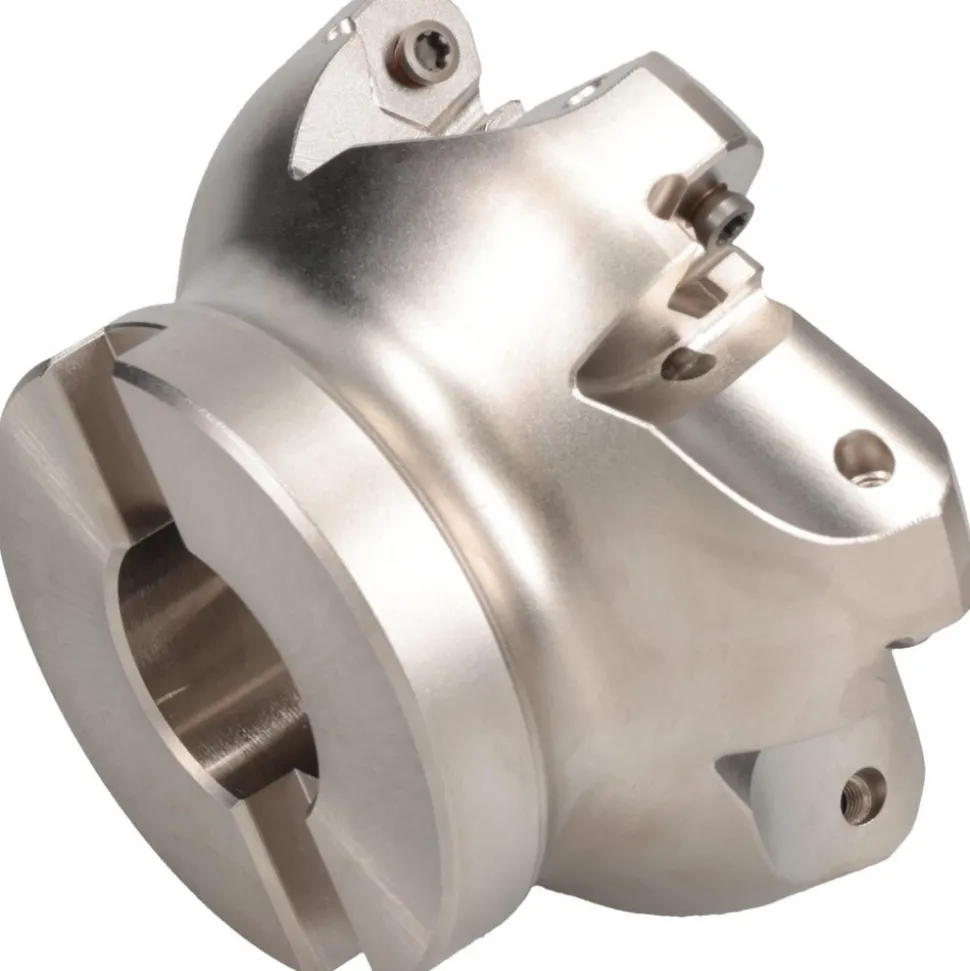

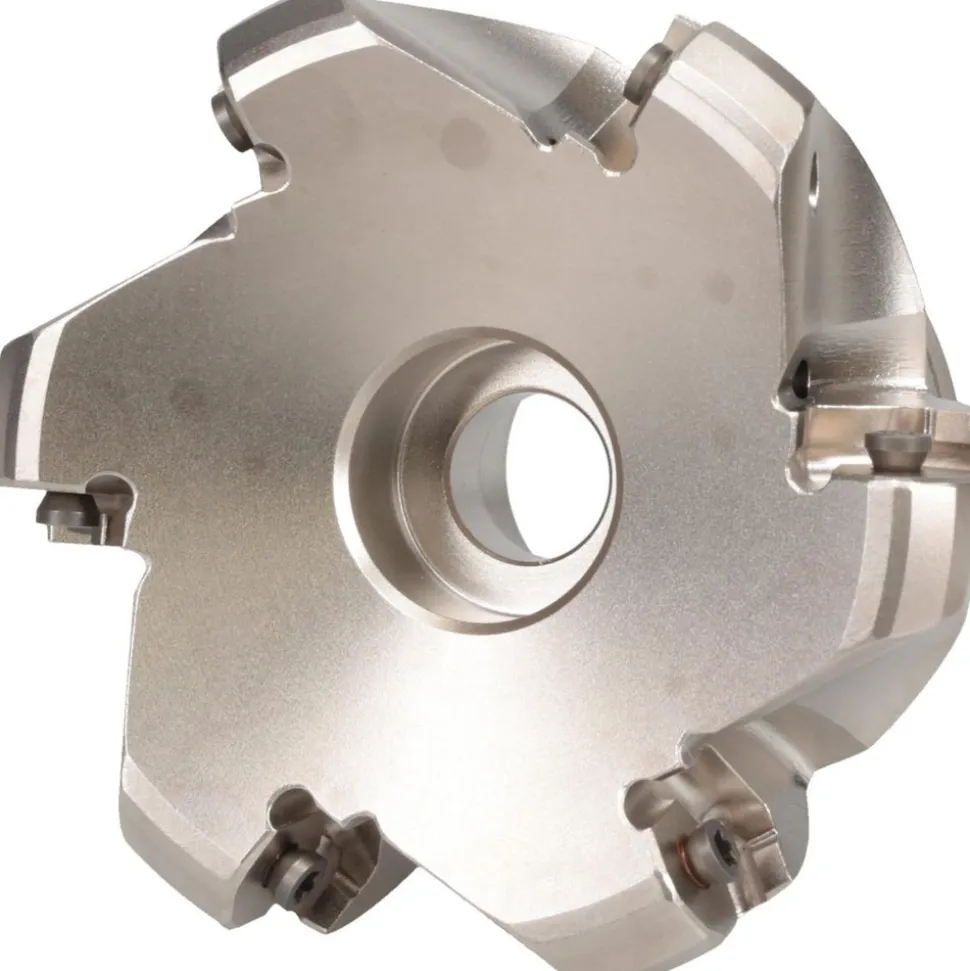

Indexable Chamfer & Angle Face Mills: Minimum Cutting Diameter (Decimal Inch): 3.0000; Minimum Cutting Diameter (Inch): 3
130,99 $
Specifications
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | Minimum Cutting Diameter (Inch): 3 |
| Maximum Cutting Diameter (Decimal Inch): 3.3544 | Maximum Depth of Cut (Decimal Inch): 0.1300 |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | Arbor Hole Diameter (Inch): 1 |
| Lead Angle: 45.000 | Compatible Insert Size Code: 08 |
| Cutter Style: ADSM | Cutting Direction: Right Hand |
| Insert Holding Method: Screw | Rake: Negative (Radial), Positive (Axial) |
| Series: CI | Hub Diameter (Decimal Inch): 2.2835 |
| Keyway Width (Decimal Inch): 0.3840 | Overall Height (Inch): 2 |
| Overall Height (Decimal Inch): 2.0000 | Maximum Insert Radius (Decimal Inch): 0.0394 |
| Complete Insert Compatibility: HNKU 4.542AZER; HOKU 4.542AZER | Toolholder Material: Steel |
| Number Of Cutter Inserts: 6 | Coolant Through: Yes |
| UNSPSC Code: 31161500 | |
| Minimum Cutting Diameter (Decimal Inch): 3.0000 | |
| Minimum Cutting Diameter (Inch): 3 | |
| Maximum Cutting Diameter (Decimal Inch): 3.3544 | |
| Maximum Depth of Cut (Decimal Inch): 0.1300 | |
| Arbor Hole Diameter (Decimal Inch): 1.0000 | |
| Arbor Hole Diameter (Inch): 1 | |
| Lead Angle: 45.000 | |
| Compatible Insert Size Code: 08 | |
| Cutter Style: ADSM | |
| Cutting Direction: Right Hand | |
| Insert Holding Method: Screw | |
| Rake: Negative (Radial), Positive (Axial) | |
| Series: CI | |
| Hub Diameter (Decimal Inch): 2.2835 | |
| Keyway Width (Decimal Inch): 0.3840 | |
| Overall Height (Inch): 2 | |
| Overall Height (Decimal Inch): 2.0000 | |
| Maximum Insert Radius (Decimal Inch): 0.0394 | |
| Complete Insert Compatibility: HNKU 4.542AZER; HOKU 4.542AZER | |
| Toolholder Material: Steel | |
| Number Of Cutter Inserts: 6 | |
| Coolant Through: Yes | |
| UNSPSC Code: 31161500 |
| MSC# | 40671372 |
| Mfr# | 40671372 |
