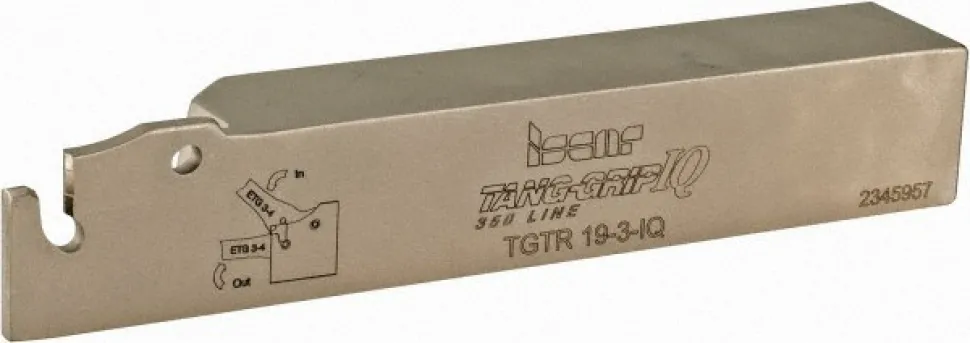

Indexable Cutoff Toolholder: 1.75″ Max Workpiece Dia, 0.11″ Min Insert Width, Right Hand
125,89 $
Specifications
| Hand of Holder: Right Hand | Maximum Workpiece Diameter (Decimal Inch): 1.7500 |
| Toolholder Style: TGT | Overall Length (Decimal Inch): 4.5000 |
| Insert Holding Method: Self Grip | Shank Width/Diameter (Decimal Inch): 0.7500 |
| Shank Height (Decimal Inch): 0.7500 | Shank Length (Decimal Inch): 3.6000 |
| Series: Tang-GripIQ | Cutting Tool Application: Grooving; Turning; Parting |
| Head Height (Decimal Inch): 0.8200 | Head Length (Decimal Inch): 0.9000 |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7500 | Standards: ISO 13399 |
| Minimum Insert Width (Decimal Inch): 0.1100 | Maximum Insert Width (Decimal Inch): 0.1380 |
| UNSPSC Code: 23153308 | Blade Width (Decimal Inch): 0.1000 |
| Coolant Through: No | Country of Origin: Israel |
| Hand of Holder: Right Hand | |
| Maximum Workpiece Diameter (Decimal Inch): 1.7500 | |
| Toolholder Style: TGT | |
| Overall Length (Decimal Inch): 4.5000 | |
| Insert Holding Method: Self Grip | |
| Shank Width/Diameter (Decimal Inch): 0.7500 | |
| Shank Height (Decimal Inch): 0.7500 | |
| Shank Length (Decimal Inch): 3.6000 | |
| Series: Tang-GripIQ | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Head Height (Decimal Inch): 0.8200 | |
| Head Length (Decimal Inch): 0.9000 | |
| Back of Bar to Cutting Edge (Decimal Inch): 0.7500 | |
| Standards: ISO 13399 | |
| Minimum Insert Width (Decimal Inch): 0.1100 | |
| Maximum Insert Width (Decimal Inch): 0.1380 | |
| UNSPSC Code: 23153308 | |
| Blade Width (Decimal Inch): 0.1000 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 04071270 |
| Mfr# | 2301824 |
