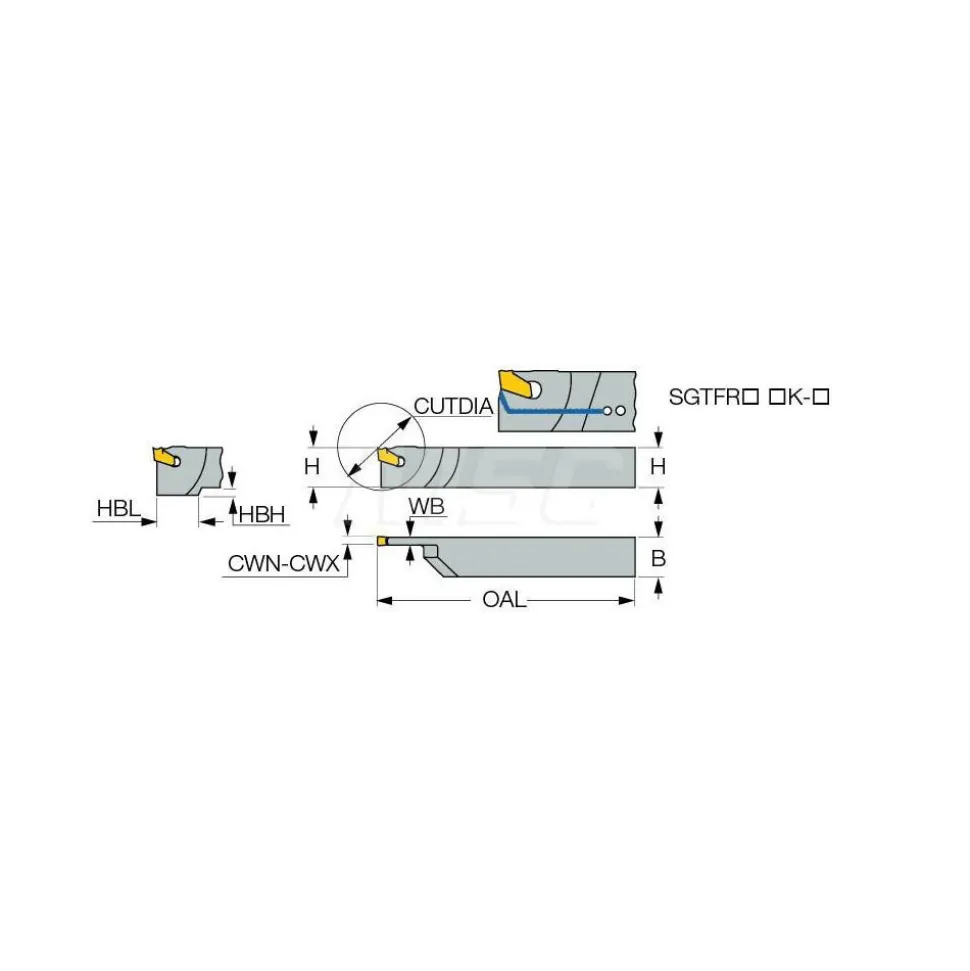

Indexable Cutoff Toolholder: 3″ Max Workpiece Dia, 0.178″ Min Insert Width, Right Hand
Original price was: 235,00 $.140,99 $Current price is: 140,99 $.
Specifications
| Hand of Holder: Right Hand | Maximum Workpiece Diameter (Decimal Inch): 3.0000 |
| Maximum Workpiece Diameter (Inch): 3 | Toolholder Style: SGTF |
| Compatible Insert Size Code: GFN-W; GFR/L-C; GFR-U; GFN-J; GFN-M; GFN-A; GFR/L-J; GFN-C; GFR/L-W; GFN-U | Overall Length (Decimal Inch): 5.9000 |
| Insert Holding Method: Self Grip | Shank Width/Diameter (Decimal Inch): 1.0000 |
| Shank Height (Decimal Inch): 1.0000 | Series: Self Grip |
| Cutting Tool Application: Grooving; Turning; Parting | Head Height (Inch): 1 |
| Head Height (Decimal Inch): 1.0000 | Back of Bar to Cutting Edge (Decimal Inch): 1.0000 |
| Standards: ISO 13399 | Minimum Insert Width (Decimal Inch): 0.1780 |
| Maximum Insert Width (Decimal Inch): 0.2170 | UNSPSC Code: 23153308 |
| Blade Width (Decimal Inch): 0.1600 | MSC/Manufacturer Number: SGTFR/L 25.4-5 |
| Manufacturers Catalog Number: SGTFR25.4-5 | Coolant Through: No |
| Country of Origin: Israel | |
| Hand of Holder: Right Hand | |
| Maximum Workpiece Diameter (Decimal Inch): 3.0000 | |
| Maximum Workpiece Diameter (Inch): 3 | |
| Toolholder Style: SGTF | |
| Compatible Insert Size Code: GFN-W; GFR/L-C; GFR-U; GFN-J; GFN-M; GFN-A; GFR/L-J; GFN-C; GFR/L-W; GFN-U | |
| Overall Length (Decimal Inch): 5.9000 | |
| Insert Holding Method: Self Grip | |
| Shank Width/Diameter (Decimal Inch): 1.0000 | |
| Shank Height (Decimal Inch): 1.0000 | |
| Series: Self Grip | |
| Cutting Tool Application: Grooving; Turning; Parting | |
| Head Height (Inch): 1 | |
| Head Height (Decimal Inch): 1.0000 | |
| Back of Bar to Cutting Edge (Decimal Inch): 1.0000 | |
| Standards: ISO 13399 | |
| Minimum Insert Width (Decimal Inch): 0.1780 | |
| Maximum Insert Width (Decimal Inch): 0.2170 | |
| UNSPSC Code: 23153308 | |
| Blade Width (Decimal Inch): 0.1600 | |
| MSC/Manufacturer Number: SGTFR/L 25.4-5 | |
| Manufacturers Catalog Number: SGTFR25.4-5 | |
| Coolant Through: No | |
| Country of Origin: Israel |
| MSC# | 60825502 |
| Mfr# | 2300865 |
| Big Book# | 896 |
