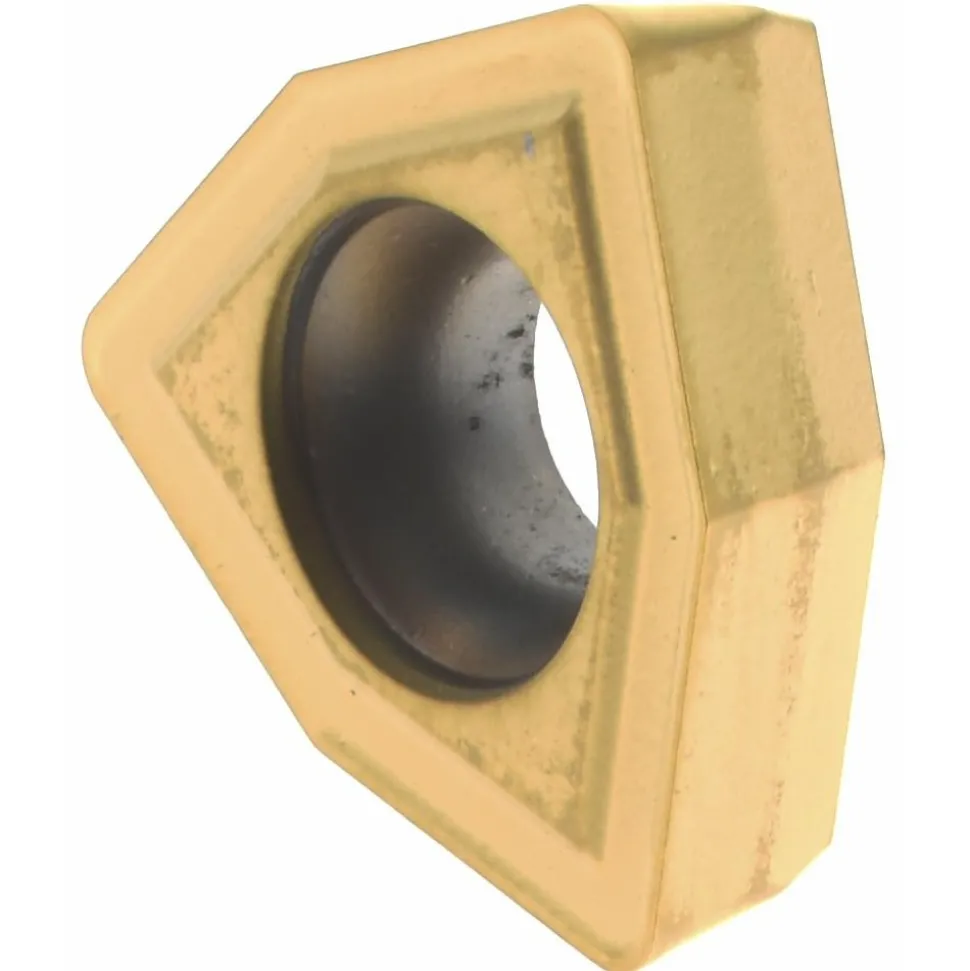

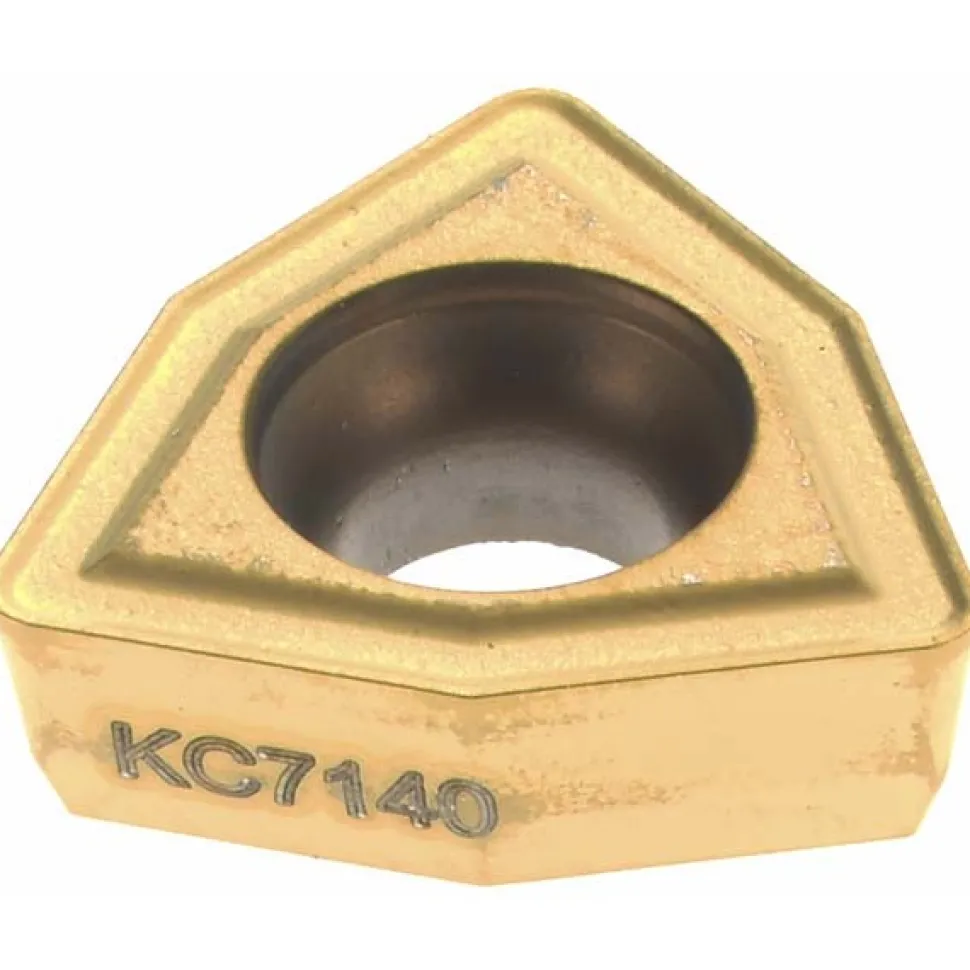

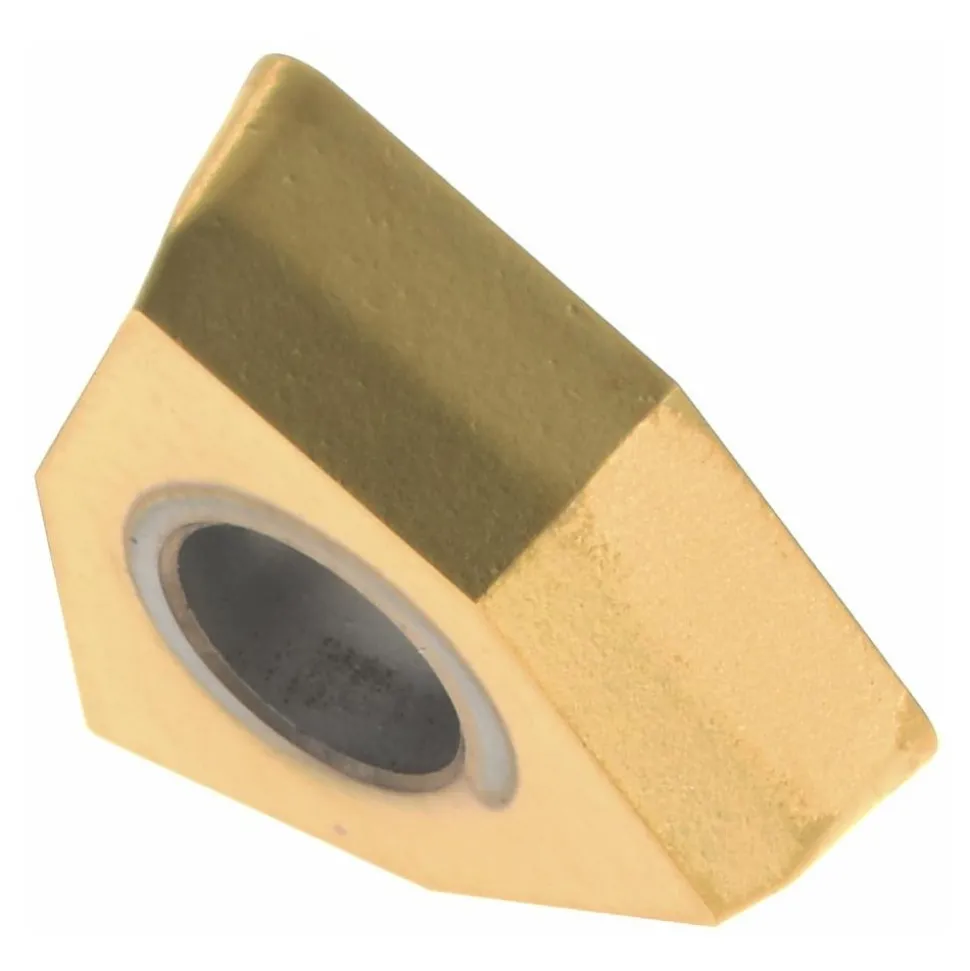

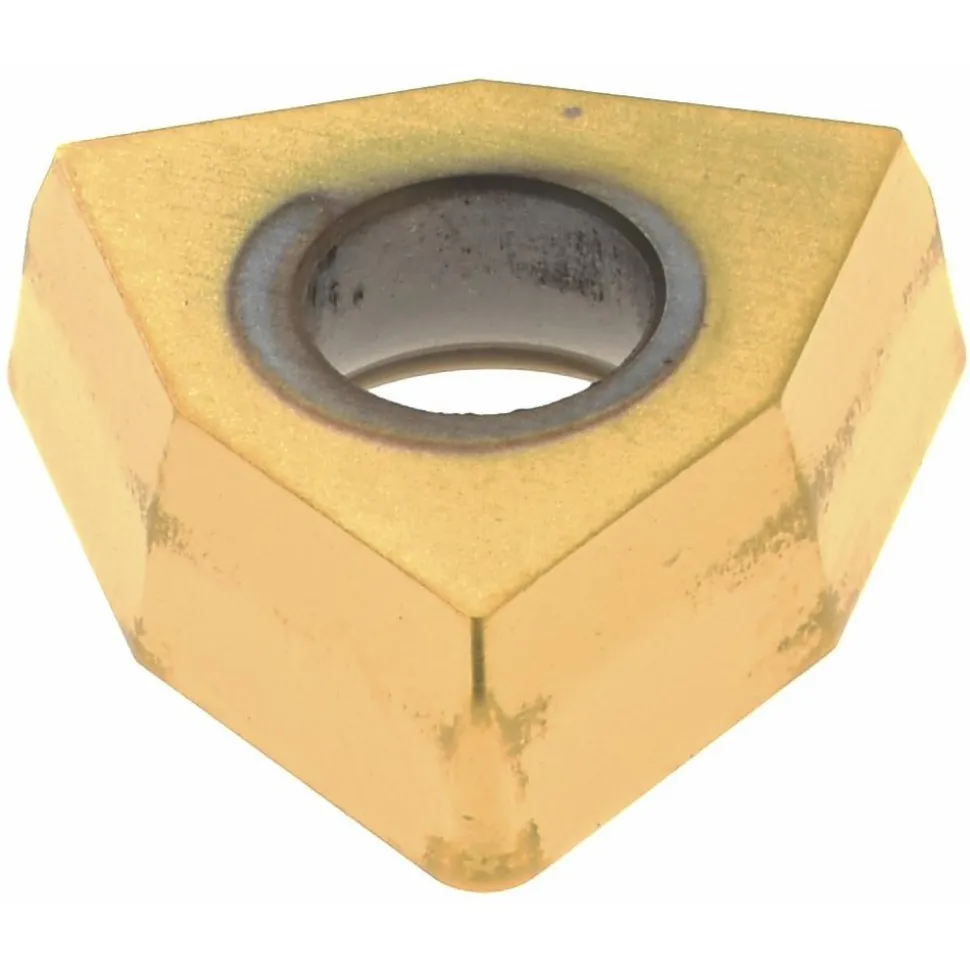

Indexable Drill Insert: DFT06T308HP KC7140, Carbide

22,89 $

Specifications

Insert Style: DFT	Insert Material: Carbide
Manufacturer Grade: KC7140	Inscribed Circle (Decimal Inch): 0.3937
Inscribed Circle (mm): 10.00	Corner Radius (Decimal Inch): 0.0315
Corner Radius (mm): 0.80	Chipbreaker: HP
Material Grade: C5; C6	Coating Process: PVD
Shape: Trigon	Hole Diameter (mm): 4.40
Relief Angle: 8.000	Insert Size: 06T308
Length (Mm): 6.62	Length (Decimal Inch – 4 Decimals): 0.2606
Included Angle Degree: 84	Thickness (Decimal Inch – 4 Decimals): 0.1476
Coating/Finish: TiCN; TiN	Hole Diameter (Decimal Inch): 0.1732 in
UNSPSC Code: 23242105	Country of Origin: Germany
Insert Style: DFT
Insert Material: Carbide
Manufacturer Grade: KC7140
Inscribed Circle (Decimal Inch): 0.3937
Inscribed Circle (mm): 10.00
Corner Radius (Decimal Inch): 0.0315
Corner Radius (mm): 0.80
Chipbreaker: HP
Material Grade: C5; C6
Coating Process: PVD
Shape: Trigon
Hole Diameter (mm): 4.40
Relief Angle: 8.000
Insert Size: 06T308
Length (Mm): 6.62
Length (Decimal Inch – 4 Decimals): 0.2606
Included Angle Degree: 84
Thickness (Decimal Inch – 4 Decimals): 0.1476
Coating/Finish: TiCN; TiN
Hole Diameter (Decimal Inch): 0.1732 in
UNSPSC Code: 23242105
Country of Origin: Germany
