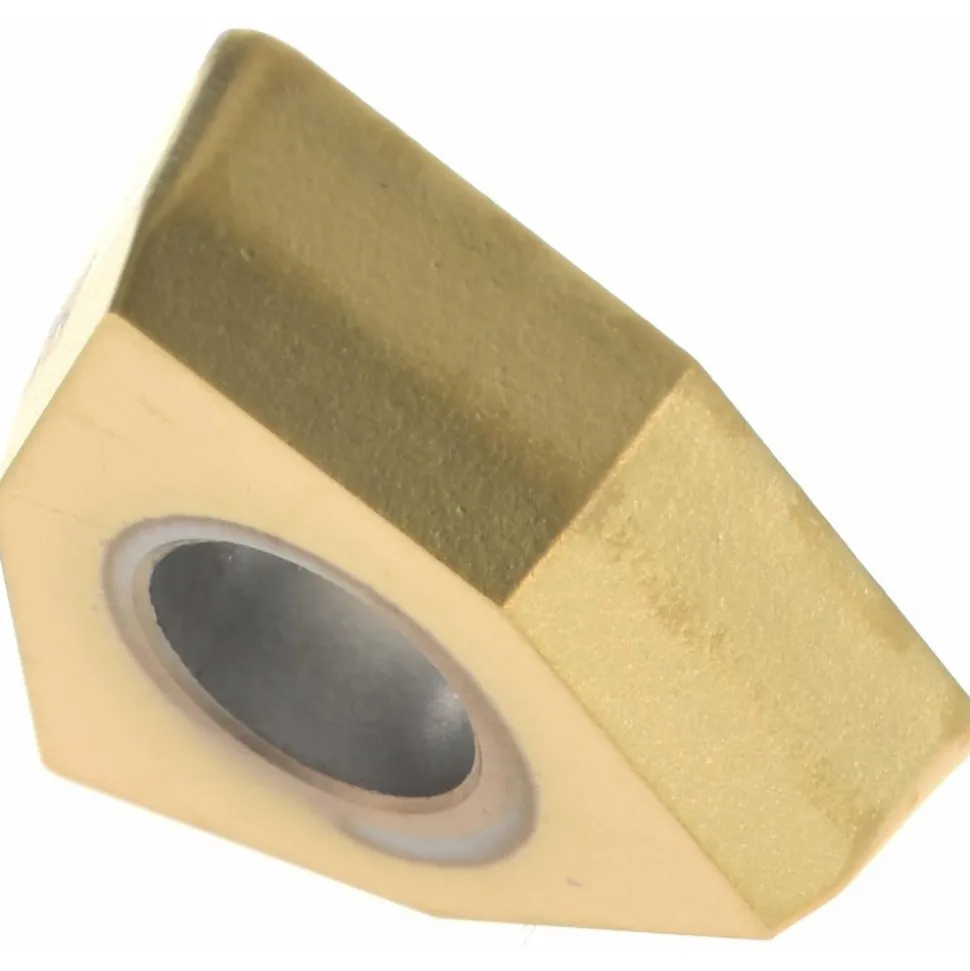

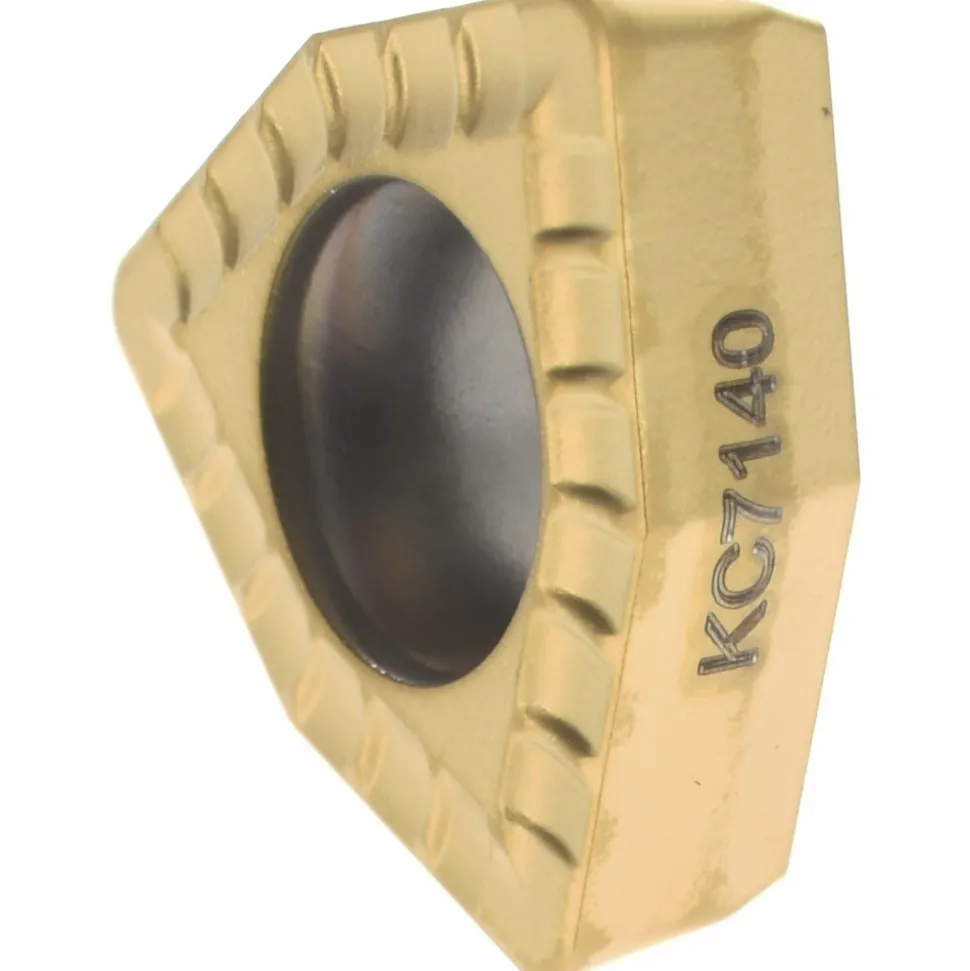

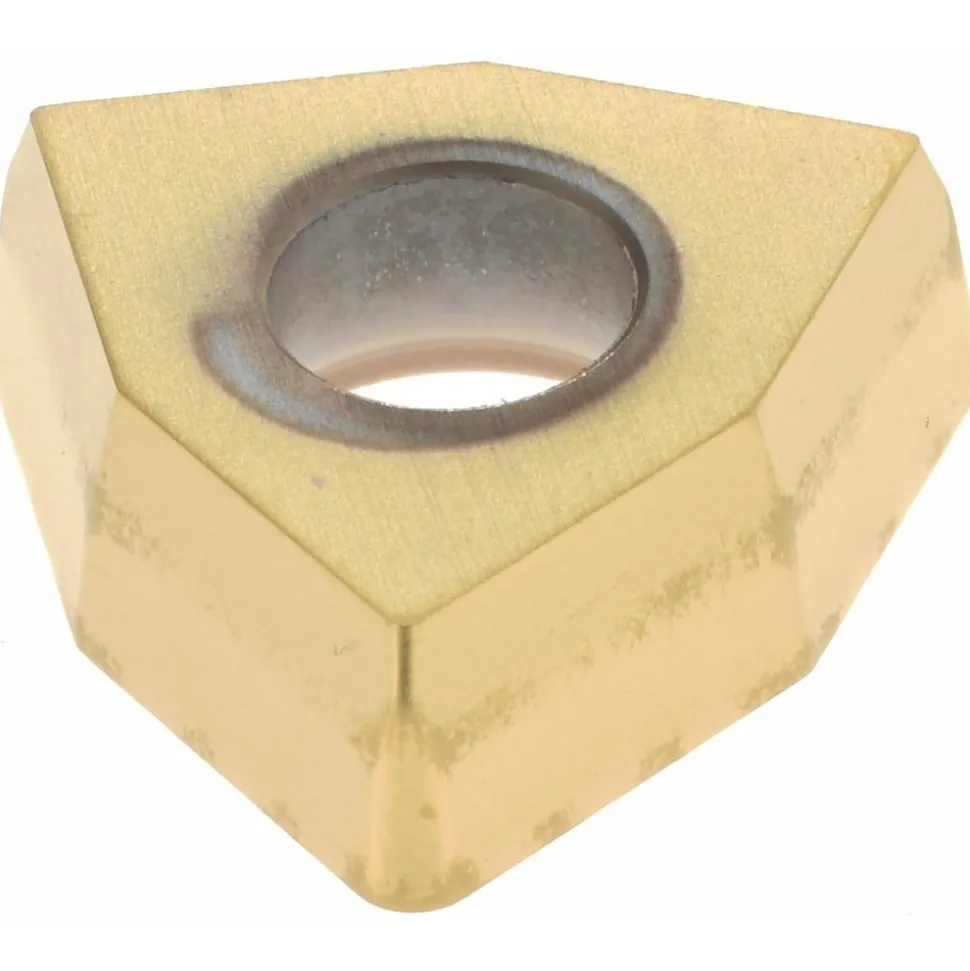

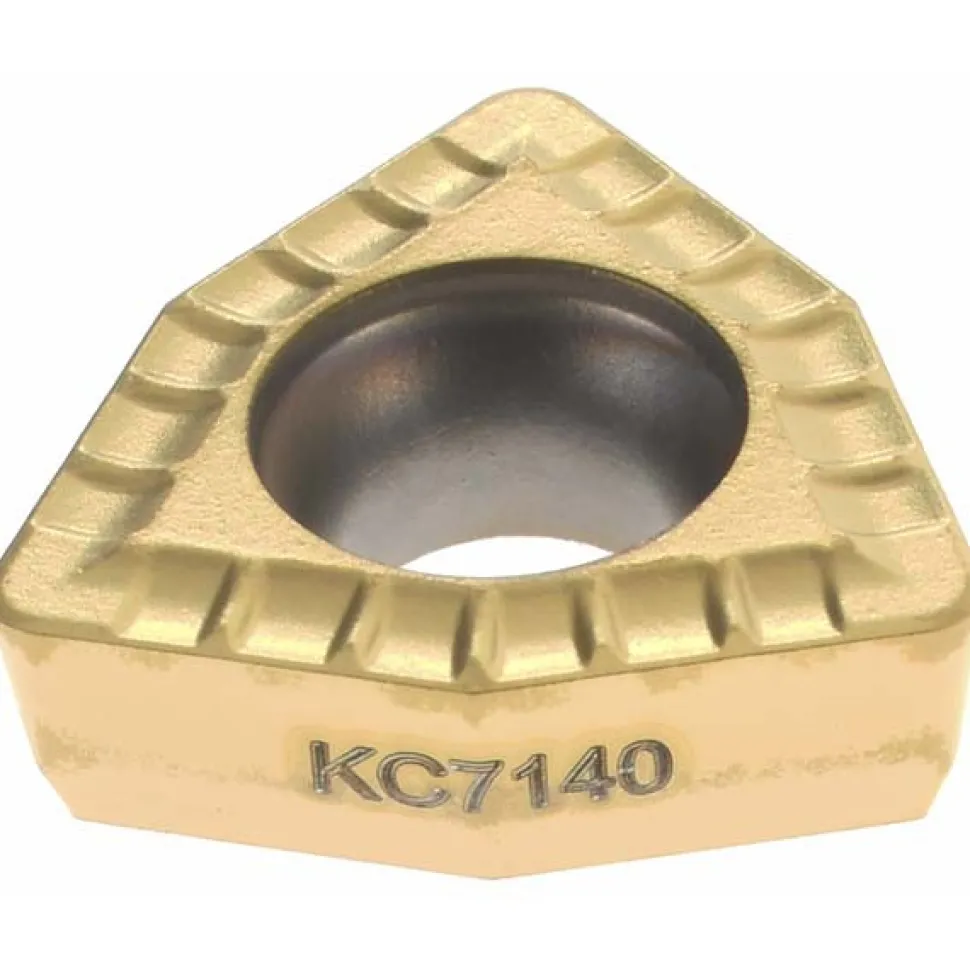

Indexable Drill Insert: DFT06T308MD KC7140, Carbide
24,99 $
Specifications
| Insert Style: DFT | Insert Material: Carbide |
| Manufacturer Grade: KC7140 | Inscribed Circle (Decimal Inch): 0.3937 |
| Inscribed Circle (mm): 10.00 | Corner Radius (Decimal Inch): 0.0315 |
| Corner Radius (mm): 0.80 | Chipbreaker: MD |
| Material Grade: C5; C6 | Coating Process: PVD |
| Shape: Trigon | Hole Diameter (mm): 4.40 |
| Relief Angle: 8.000 | Insert Size: 06T308 |
| Length (Mm): 6.62 | Length (Decimal Inch – 4 Decimals): 0.2606 |
| Included Angle Degree: 84 | Thickness (Decimal Inch – 4 Decimals): 0.1476 |
| Coating/Finish: TiCN; TiN | Hole Diameter (Decimal Inch): 0.1732 in |
| UNSPSC Code: 23242105 | Country of Origin: Germany |
| Insert Style: DFT | |
| Insert Material: Carbide | |
| Manufacturer Grade: KC7140 | |
| Inscribed Circle (Decimal Inch): 0.3937 | |
| Inscribed Circle (mm): 10.00 | |
| Corner Radius (Decimal Inch): 0.0315 | |
| Corner Radius (mm): 0.80 | |
| Chipbreaker: MD | |
| Material Grade: C5; C6 | |
| Coating Process: PVD | |
| Shape: Trigon | |
| Hole Diameter (mm): 4.40 | |
| Relief Angle: 8.000 | |
| Insert Size: 06T308 | |
| Length (Mm): 6.62 | |
| Length (Decimal Inch – 4 Decimals): 0.2606 | |
| Included Angle Degree: 84 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1476 | |
| Coating/Finish: TiCN; TiN | |
| Hole Diameter (Decimal Inch): 0.1732 in | |
| UNSPSC Code: 23242105 | |
| Country of Origin: Germany |
| MSC# | 01259472 |
| Mfr# | 1713512 |
| Big Book# | 174 |
