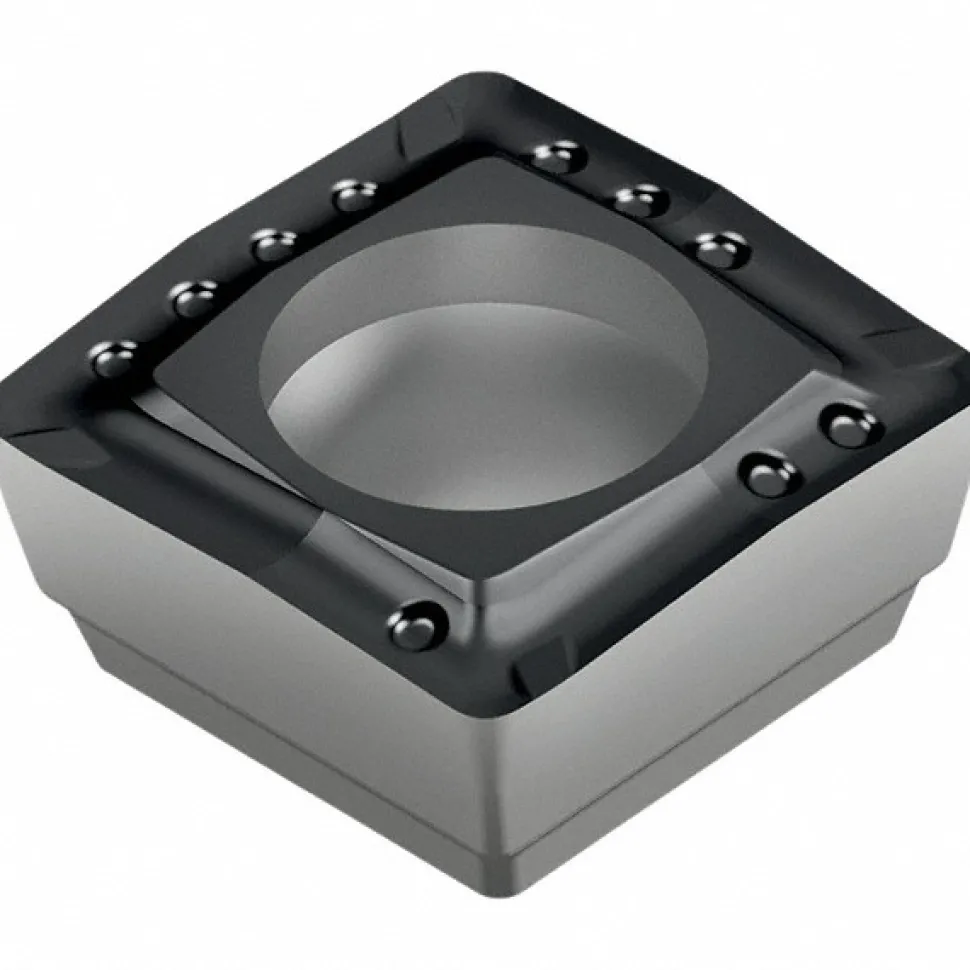

Indexable Drill Insert: P4841P-5R-A57 WKP25S, Carbide

20,89 $

SKU: SKUVIiFOdb0Nq Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Walter Brand: Walter

Description
Reviews (0)

Specifications

Insert Style: P484	Insert Material: Carbide
Manufacturer Grade: WKP25S	Inscribed Circle (Decimal Inch): 0.3760
Inscribed Circle (mm): 9.55	Corner Radius (Decimal Inch): 0.0230
Corner Radius (mm): 0.58	Chipbreaker: A57
Series: Tiger Tec	Material Grade: P25; K25
Coating Process: CVD	Shape: Square
Number Of Cutting Edges: 4	Primary Workpiece Material: Cast Iron; Steel
Primary Workpiece Material Code: P; K	Iso Code: P4841P-5R-A57 WKP25S
Standards: ISO; ANSI	Insert Size: 5
Width (mm – 2 Decimals): 9.56	Length (Mm): 9.56
Width (Decimal Inch – 4 Decimals): 0.3800	Length (Decimal Inch – 4 Decimals): 0.3800
Included Angle Degree: 90	Thickness (Decimal Inch – 4 Decimals): 0.1620
Coating/Finish: TiCN; TiN; Al2O3	Insert Size Code: 48
Insert Hand: Right Hand	UNSPSC Code: 23242105
Country of Origin: Germany
Insert Style: P484
Insert Material: Carbide
Manufacturer Grade: WKP25S
Inscribed Circle (Decimal Inch): 0.3760
Inscribed Circle (mm): 9.55
Corner Radius (Decimal Inch): 0.0230
Corner Radius (mm): 0.58
Chipbreaker: A57
Series: Tiger Tec
Material Grade: P25; K25
Coating Process: CVD
Shape: Square
Number Of Cutting Edges: 4
Primary Workpiece Material: Cast Iron; Steel
Primary Workpiece Material Code: P; K
Iso Code: P4841P-5R-A57 WKP25S
Standards: ISO; ANSI
Insert Size: 5
Width (mm – 2 Decimals): 9.56
Length (Mm): 9.56
Width (Decimal Inch – 4 Decimals): 0.3800
Length (Decimal Inch – 4 Decimals): 0.3800
Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1620
Coating/Finish: TiCN; TiN; Al2O3
Insert Size Code: 48
Insert Hand: Right Hand
UNSPSC Code: 23242105
Country of Origin: Germany
