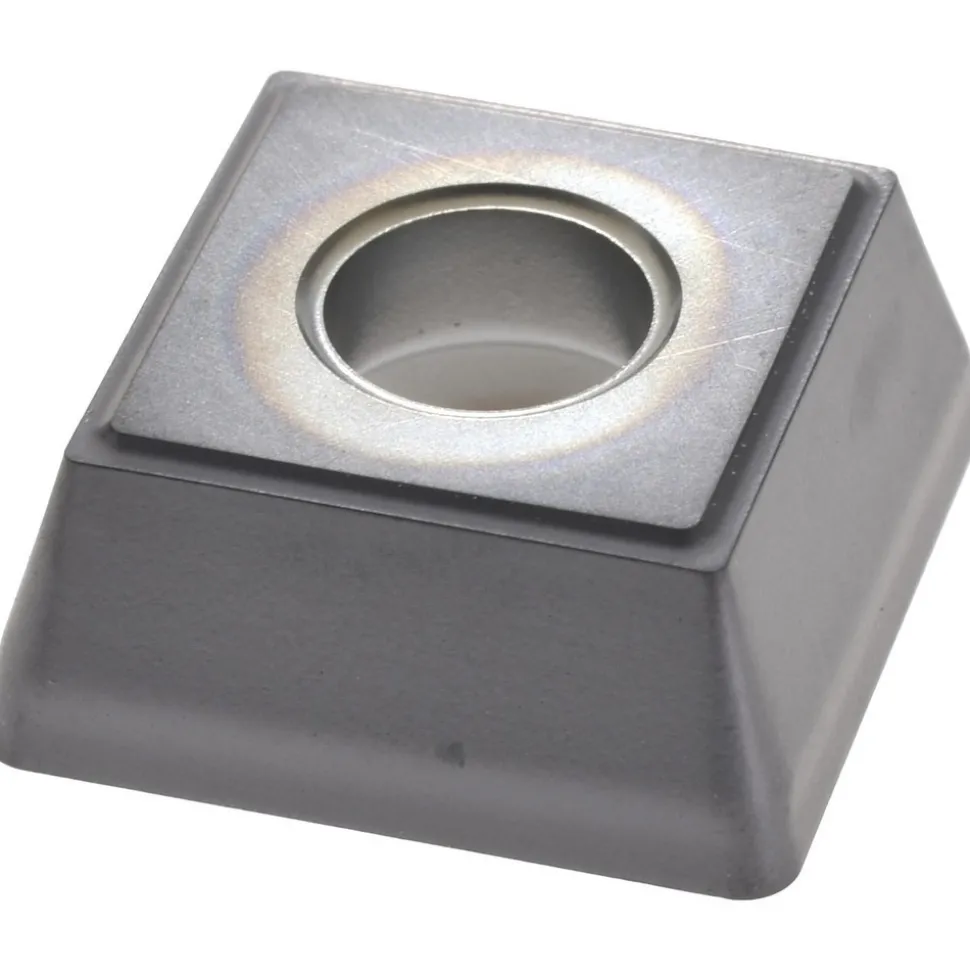

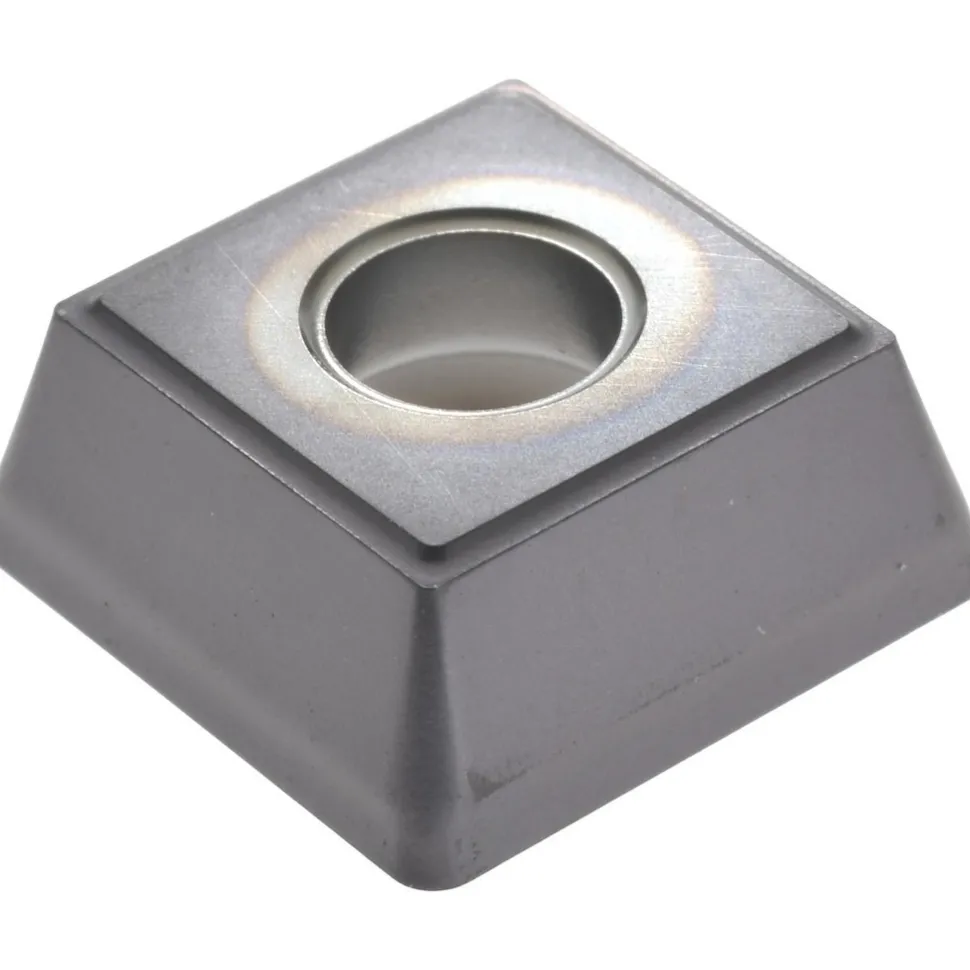

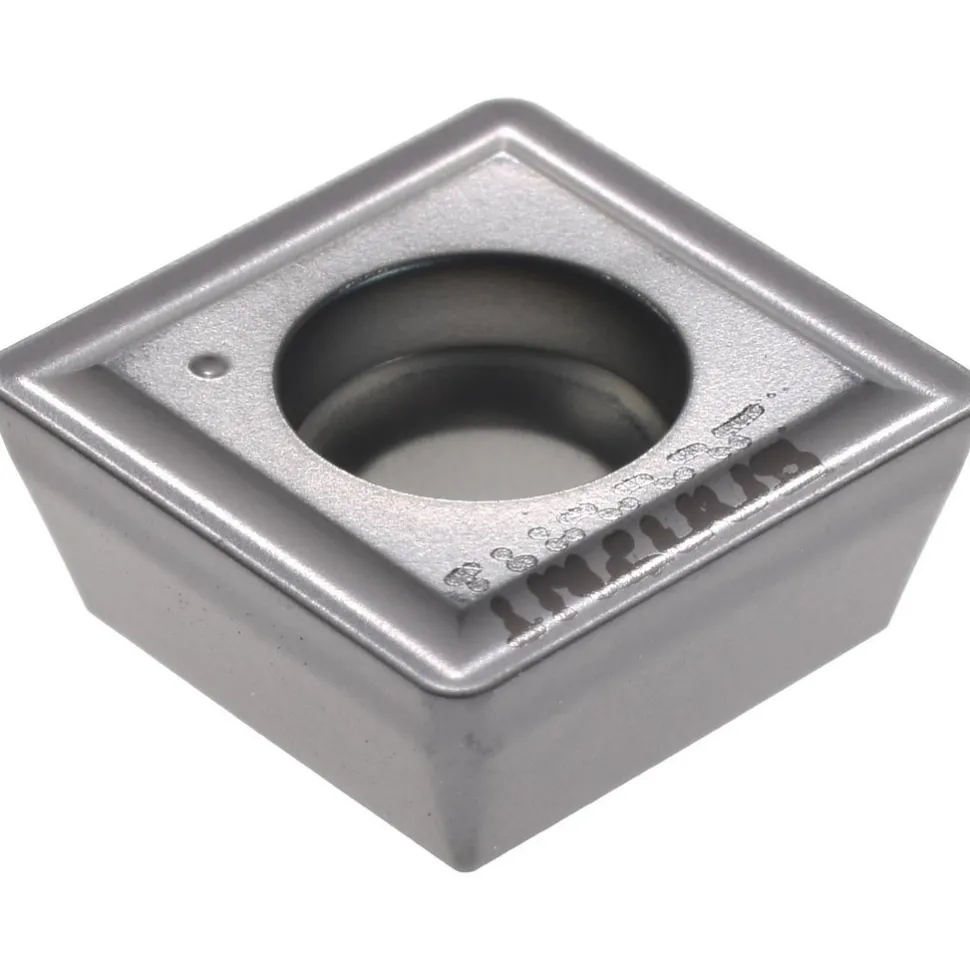

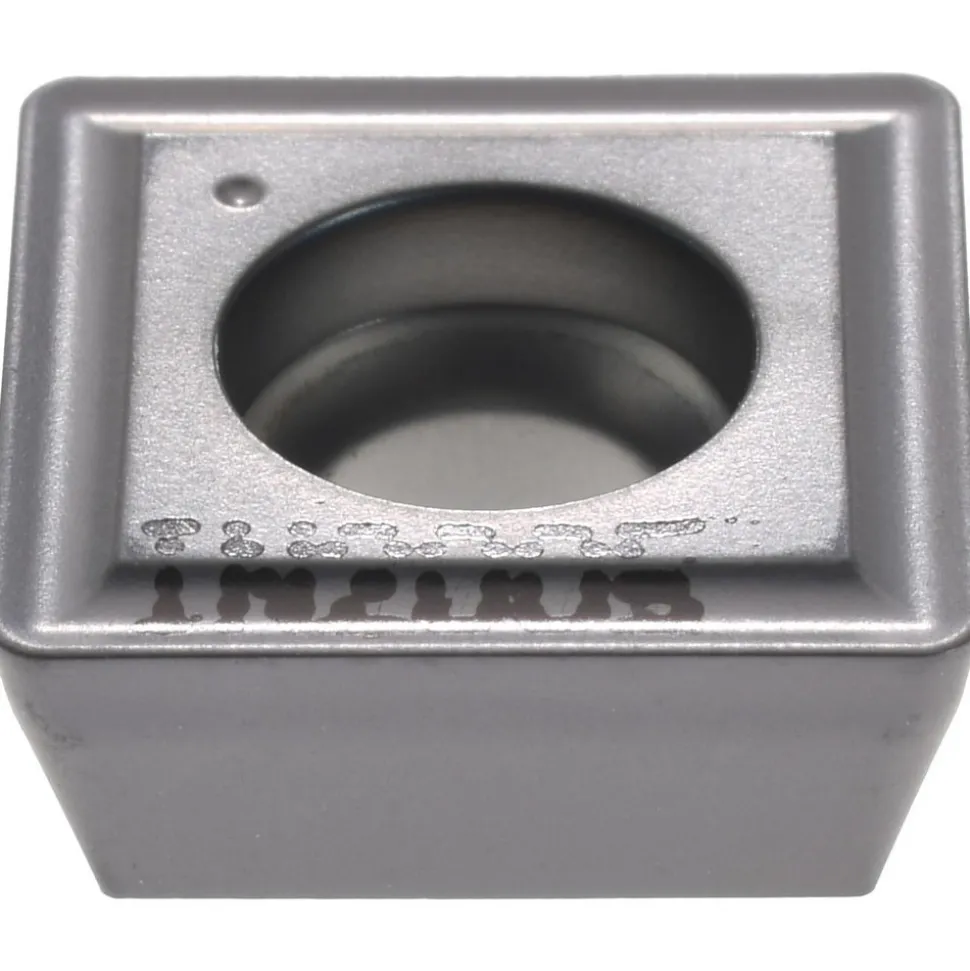

Indexable Drill Insert: SHLT110408N-PH1 IN2005, Carbide
18,99 $
Specifications
| Insert Style: SHLT | Insert Material: Carbide |
| Manufacturer Grade: IN2005 | Inscribed Circle (Decimal Inch): 0.4530 |
| Corner Radius (Decimal Inch): 0.0300 | Chipbreaker: PH |
| Series: SHLT-N-PH1 | Material Grade: C2 |
| Coating Process: PVD | Shape: Square |
| Number Of Cutting Edges: 4 | Rake: Positive |
| Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | Primary Workpiece Material Code: P; S; H; K; M |
| Ansi Code: SHLT110408N-PH1 | Iso Code: SHLT110408N-PH1 |
| Compatible Drill Style: Q | Insert Size: 110408 |
| Width (Decimal Inch – 4 Decimals): 0.4530 | Length (Decimal Inch – 4 Decimals): 0.4530 |
| Included Angle Degree: 90 | Thickness (Decimal Inch – 4 Decimals): 0.1960 |
| Coating/Finish: TiAlN | Insert Size Code: 11 |
| Insert Hand: Neutral | UNSPSC Code: 23242105 |
| Country of Origin: South Korea | |
| Insert Style: SHLT | |
| Insert Material: Carbide | |
| Manufacturer Grade: IN2005 | |
| Inscribed Circle (Decimal Inch): 0.4530 | |
| Corner Radius (Decimal Inch): 0.0300 | |
| Chipbreaker: PH | |
| Series: SHLT-N-PH1 | |
| Material Grade: C2 | |
| Coating Process: PVD | |
| Shape: Square | |
| Number Of Cutting Edges: 4 | |
| Rake: Positive | |
| Primary Workpiece Material: Hard Material; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel | |
| Primary Workpiece Material Code: P; S; H; K; M | |
| Ansi Code: SHLT110408N-PH1 | |
| Iso Code: SHLT110408N-PH1 | |
| Compatible Drill Style: Q | |
| Insert Size: 110408 | |
| Width (Decimal Inch – 4 Decimals): 0.4530 | |
| Length (Decimal Inch – 4 Decimals): 0.4530 | |
| Included Angle Degree: 90 | |
| Thickness (Decimal Inch – 4 Decimals): 0.1960 | |
| Coating/Finish: TiAlN | |
| Insert Size Code: 11 | |
| Insert Hand: Neutral | |
| UNSPSC Code: 23242105 | |
| Country of Origin: South Korea |
| MSC# | 07496714 |
| Mfr# | 5140194 |
