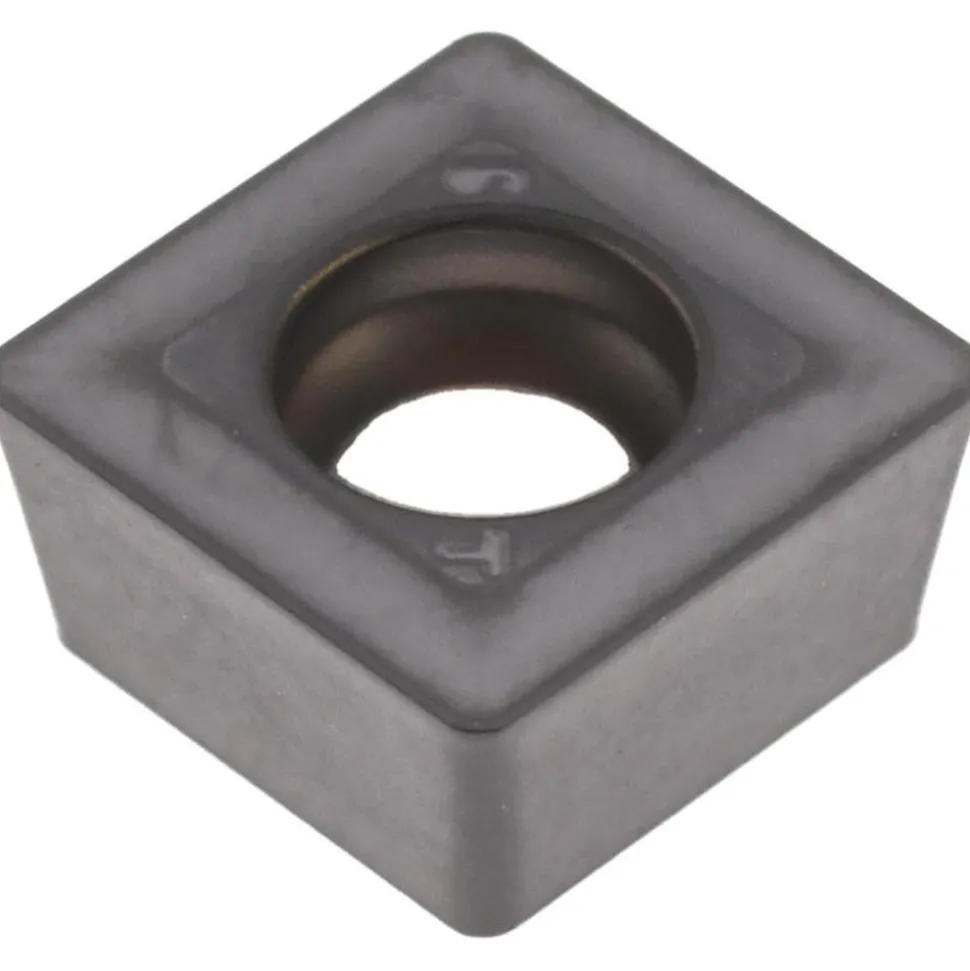

Indexable Drill Insert: SOMX060304DT IC908, Carbide

Original price was: 21,00 $.Current price is: 14,89 $.

Specifications

Insert Style: SOMX	Insert Material: Carbide
Manufacturer Grade: IC908	Inscribed Circle (Decimal Inch): 0.2441
Inscribed Circle (mm): 6.20	Corner Radius (Decimal Inch): 0.0157
Corner Radius (mm): 0.40	Chipbreaker: DT
Series: DR-TWIST	Material Grade: C7; C8
Coating Process: PVD	Shape: Square
Primary Workpiece Material: Universal	Primary Workpiece Material Code: P; S; H; K; M
Iso Code: ISO 13399	Standards: ISO 13399
Insert Size: 060304	Width (mm – 2 Decimals): 6.20
Length (Mm): 6.20	Width (Decimal Inch – 4 Decimals): 0.2440
Length (Decimal Inch – 4 Decimals): 0.2440	Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1260	Coating/Finish: TiAlN
Insert Size Code: 06	UNSPSC Code: 23242105
Country of Origin: Israel
Insert Style: SOMX
Insert Material: Carbide
Manufacturer Grade: IC908
Inscribed Circle (Decimal Inch): 0.2441
Inscribed Circle (mm): 6.20
Corner Radius (Decimal Inch): 0.0157
Corner Radius (mm): 0.40
Chipbreaker: DT
Series: DR-TWIST
Material Grade: C7; C8
Coating Process: PVD
Shape: Square
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M
Iso Code: ISO 13399
Standards: ISO 13399
Insert Size: 060304
Width (mm – 2 Decimals): 6.20
Length (Mm): 6.20
Width (Decimal Inch – 4 Decimals): 0.2440
Length (Decimal Inch – 4 Decimals): 0.2440
Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1260
Coating/Finish: TiAlN
Insert Size Code: 06
UNSPSC Code: 23242105
Country of Origin: Israel
