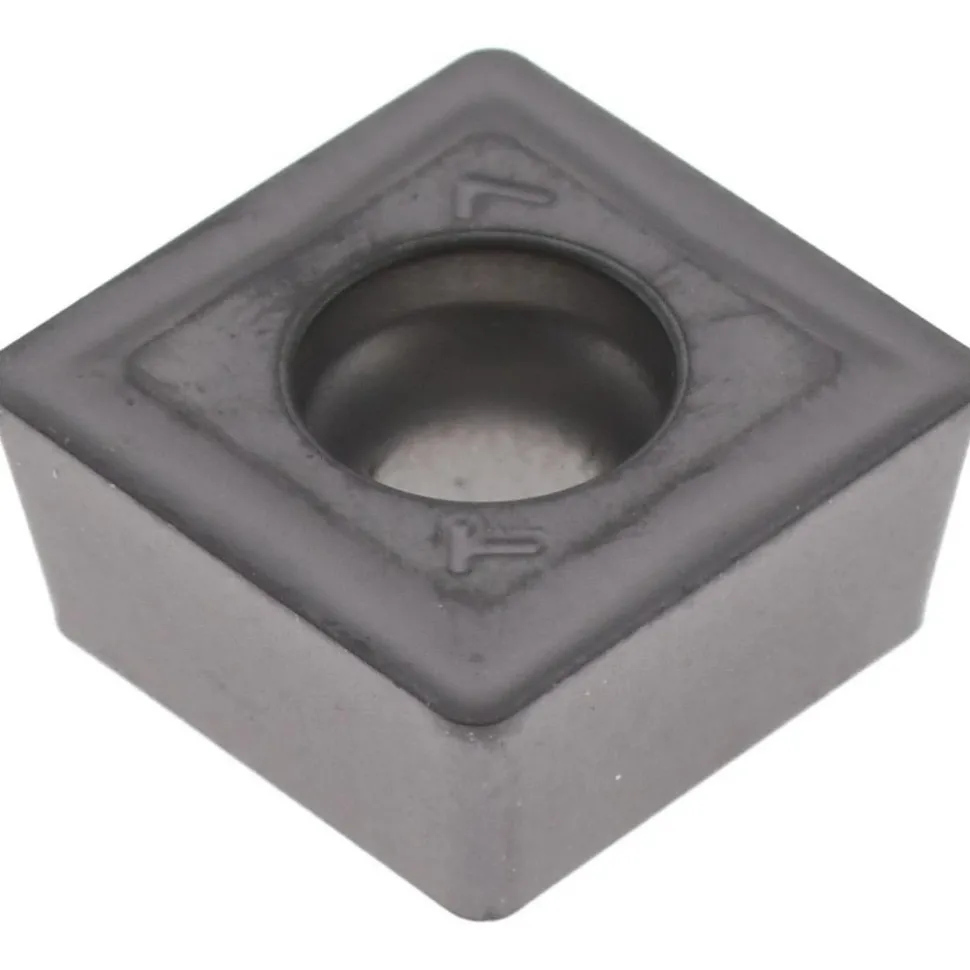

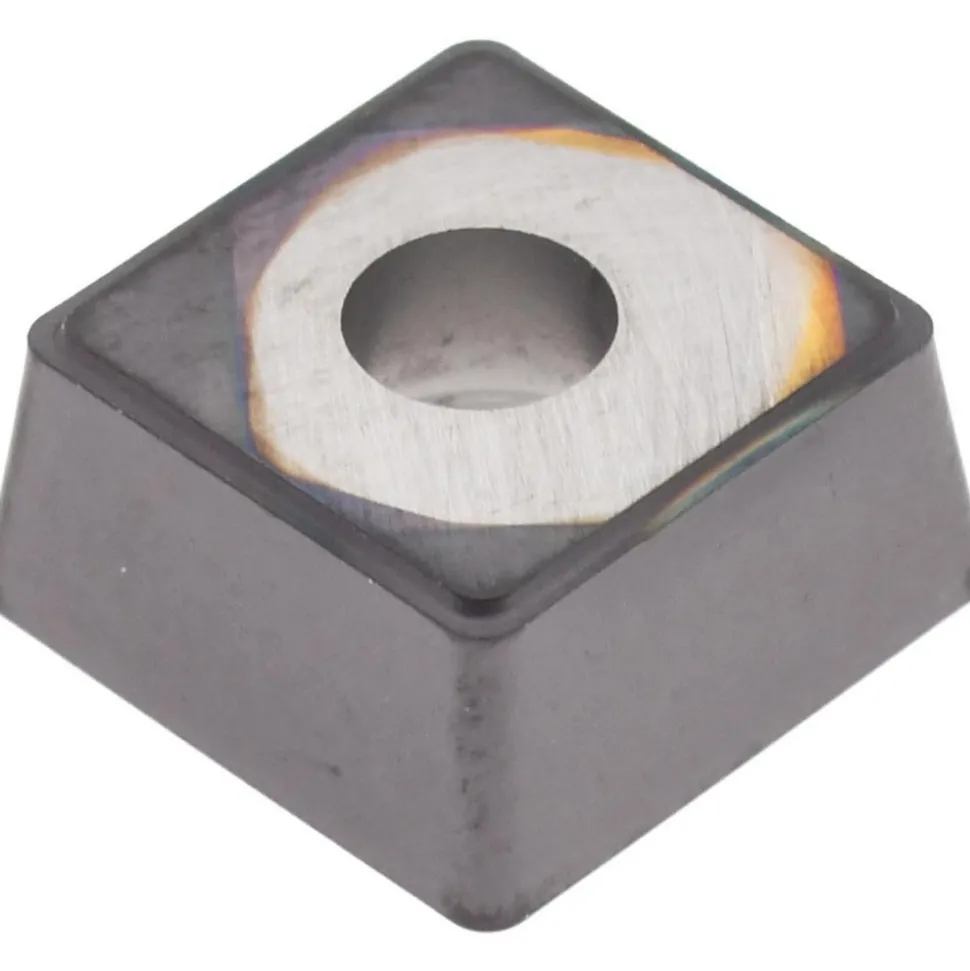

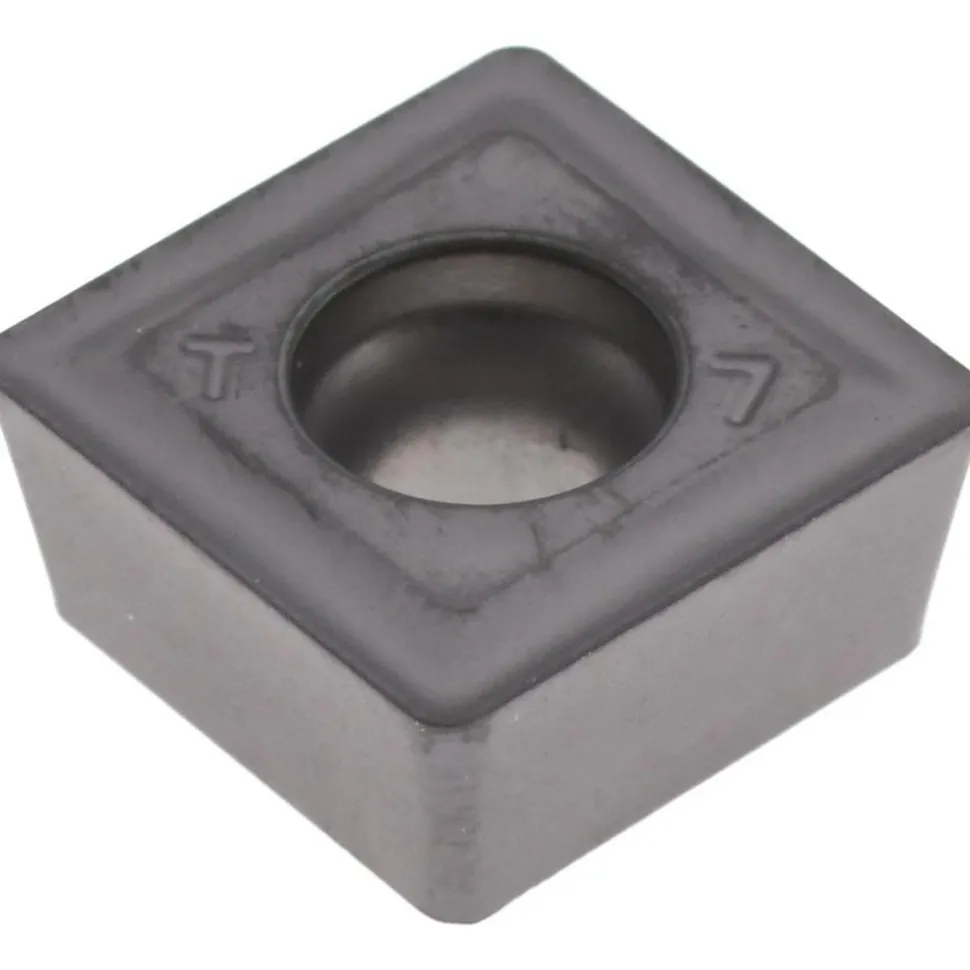

Indexable Drill Insert: SOMX070305-DT IC908, Carbide

Indexable Drill Insert: SOMX070305-DT IC908, Carbide

15,99 $

SKU: SKUYTYV2IXLC3 Categories: Indexable Cutting Tools, Indexable Inserts, Shop All Products Tag: Iscar Brand: Iscar

Description
Reviews (0)

Specifications

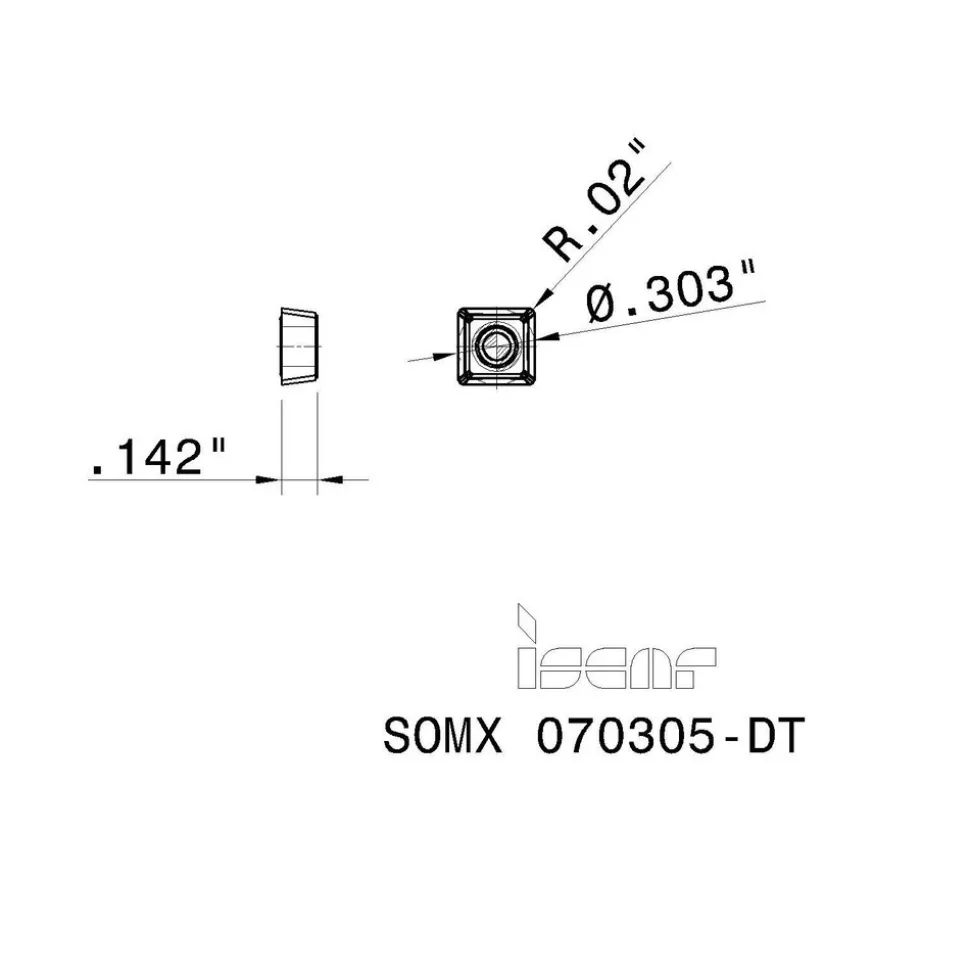

Insert Style: SOMX	Insert Material: Carbide
Manufacturer Grade: IC908	Inscribed Circle (Decimal Inch): 0.3031
Inscribed Circle (mm): 7.70	Corner Radius (Decimal Inch): 0.0197
Corner Radius (mm): 0.50	Chipbreaker: DT
Series: DR-TWIST	Material Grade: C6; C7; C1; C2
Coating Process: PVD	Shape: Square
Primary Workpiece Material: Universal	Primary Workpiece Material Code: P; S; H; K; M
Iso Code: ISO 13399	Standards: ISO 13399
Insert Size: 070305	Width (mm – 2 Decimals): 7.70
Length (Mm): 7.70	Width (Decimal Inch – 4 Decimals): 0.3030
Length (Decimal Inch – 4 Decimals): 0.3030	Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1417	Coating/Finish: TiAlN
Insert Size Code: 07	UNSPSC Code: 23242105
Country of Origin: Israel
Insert Style: SOMX
Insert Material: Carbide
Manufacturer Grade: IC908
Inscribed Circle (Decimal Inch): 0.3031
Inscribed Circle (mm): 7.70
Corner Radius (Decimal Inch): 0.0197
Corner Radius (mm): 0.50
Chipbreaker: DT
Series: DR-TWIST
Material Grade: C6; C7; C1; C2
Coating Process: PVD
Shape: Square
Primary Workpiece Material: Universal
Primary Workpiece Material Code: P; S; H; K; M
Iso Code: ISO 13399
Standards: ISO 13399
Insert Size: 070305
Width (mm – 2 Decimals): 7.70
Length (Mm): 7.70
Width (Decimal Inch – 4 Decimals): 0.3030
Length (Decimal Inch – 4 Decimals): 0.3030
Included Angle Degree: 90
Thickness (Decimal Inch – 4 Decimals): 0.1417
Coating/Finish: TiAlN
Insert Size Code: 07
UNSPSC Code: 23242105
Country of Origin: Israel
